What you need to know about power steering rack and pinion

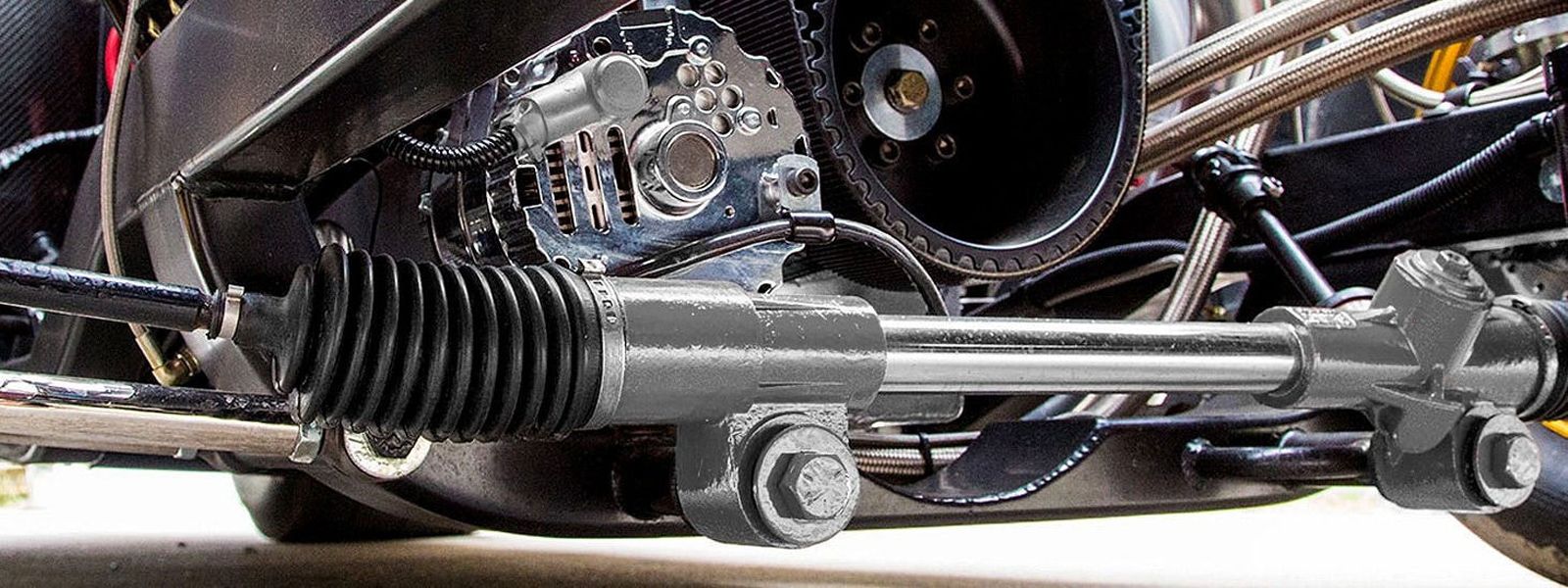

The power steering rack and pinion is a vital component of a car's steering system. It's essentially a mechanical translator that converts the driver's steering wheel input into the movement of the front wheels. Located under the steering wheel, this system is connected to the front wheels through tie rods.

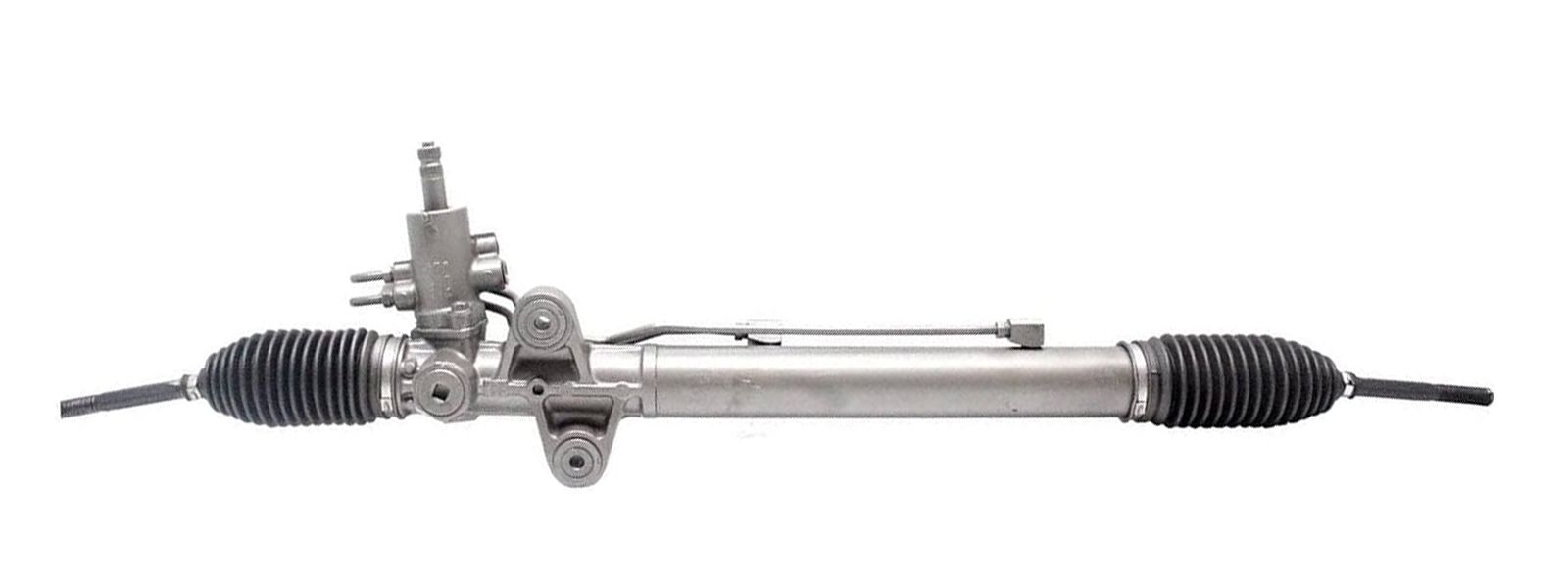

The rack and pinion system consists of a rack, a pinion gear, and a hydraulic system. The rack is a toothed bar that moves horizontally, connected to the tie rods. The pinion gear meshes with the rack and is attached to the steering shaft. The hydraulic system provides power assistance, making steering easier, especially at low speeds.

Modern vehicles often favor rack and pinion steering due to its numerous advantages over older steering systems. One of its key strengths is its precision. This system's direct connection between the steering wheel and the wheels, facilitated by the rack and pinion mechanism, enables precise and responsive handling. This translates to a more enjoyable driving experience, particularly when navigating tight spaces or winding roads.

Another key advantage is the system's efficiency. The rack and pinion design requires less effort from the driver to turn the steering wheel, especially at low speeds or when stationary. This is due to the hydraulic assistance provided by the power steering pump. This reduction in effort makes driving less tiring, especially in urban environments with frequent stops and turns.

• Leaks: A common issue is leaks in the power steering rack and pinion. These leaks can occur at the rack seals, steering lines, or the hydraulic pump. Leaks can lead to reduced power steering assist, steering noise, and low steering fluid levels. If you notice a leak, it's important to get it repaired quickly to prevent further damage.
• Noise: Noise coming from the rack and pinion assembly can be a sign of several issues. Common noises include clunking, banging, or grinding. These noises can be caused by worn rack components, loose tie rods, damaged rack seals, or a failing hydraulic system.
• Reduced power steering assist: A loss of power steering assist can be caused by low power steering fluid levels, a failing hydraulic pump, damaged rack seals, or clogged steering lines. This can make it difficult to steer the vehicle and require more effort from the driver, leading to fatigue and potential safety risks.

1. Disconnect Steering Components: Disconnect the tie rod ends from the steering knuckles. This will disconnect the steering linkage from the wheels. Next, disconnect the power steering lines connecting to the rack and pinion. These lines carry the hydraulic fluid that powers the steering system.
2. Remove the Old Assembly: To remove the old rack and pinion assembly, loosen the bolts and secure them to the vehicle frame. These bolts are typically found on the sides of the assembly. Carefully remove each bolt, ensuring you don't strip the threads. Once all the bolts are removed, gently detach the old assembly, being careful not to drop it.
3. Install the New Assembly: Reverse the removal steps and carefully install the new rack and pinion assembly. Make sure the new assembly is properly aligned and seated before tightening the mounting bolts. This will ensure a secure and correct fit, preventing any issues with the steering system's functionality.
4. Reconnect Components and Refill Fluid: Using a torque wrench, tighten the mounting bolts to the specified torque values. Reconnect the power steering lines and tie rod ends. Lower the vehicle from the jack stands, reconnect the negative battery terminal, and add power steering fluid to the reservoir until it's full.
5. Test the Steering: Start the engine and test the steering for proper operation. Make sure the steering feels smooth and responsive. If you encounter any issues, recheck your connections and ensure all components are properly secured.

The price of an aftermarket rack and pinion assembly can vary, ranging from $100 to $500. Factors like the vehicle's make and model, the brand, any additional features, and your location can all influence the rack and pinion price. When choosing a replacement, it's important to consider quality, warranty, and price. Don't forget to factor in installation costs if you're not doing the work yourself.

For those seeking a high-quality, reliable, and affordable power steering rack and pinion assembly, A-Premium offers a range of options to suit various budgets. Their steering rack and pinions are designed to meet your needs without exceeding your financial constraints.

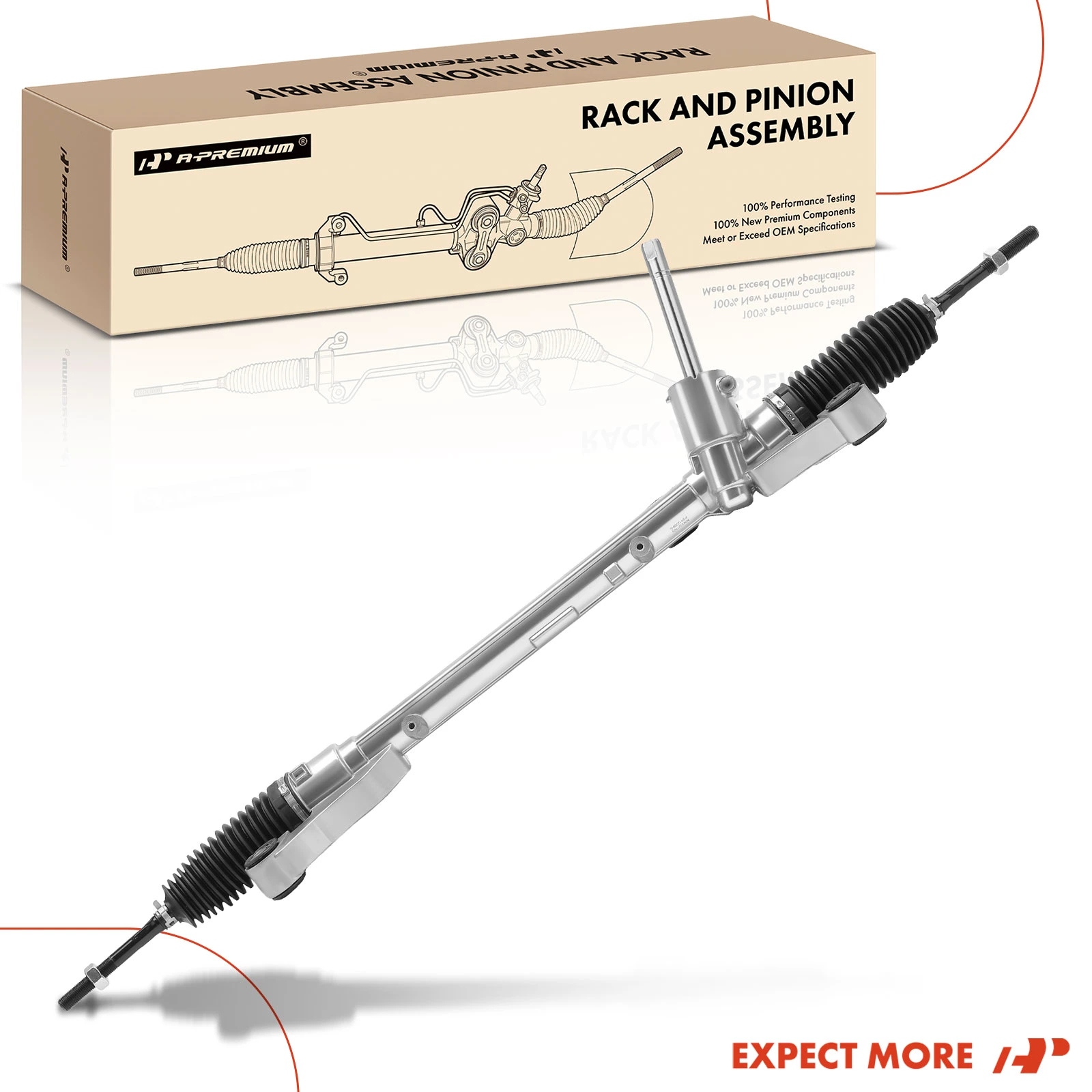

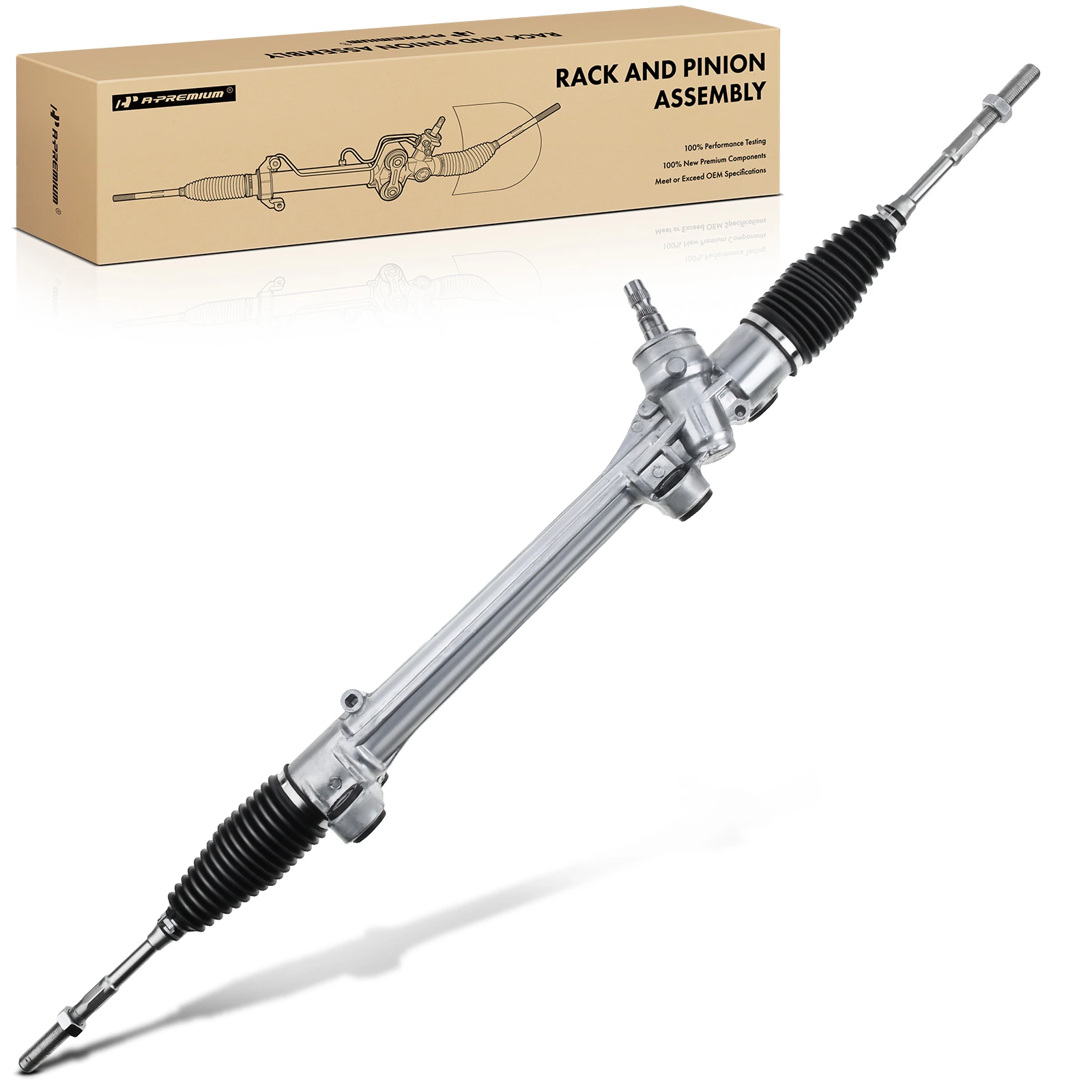

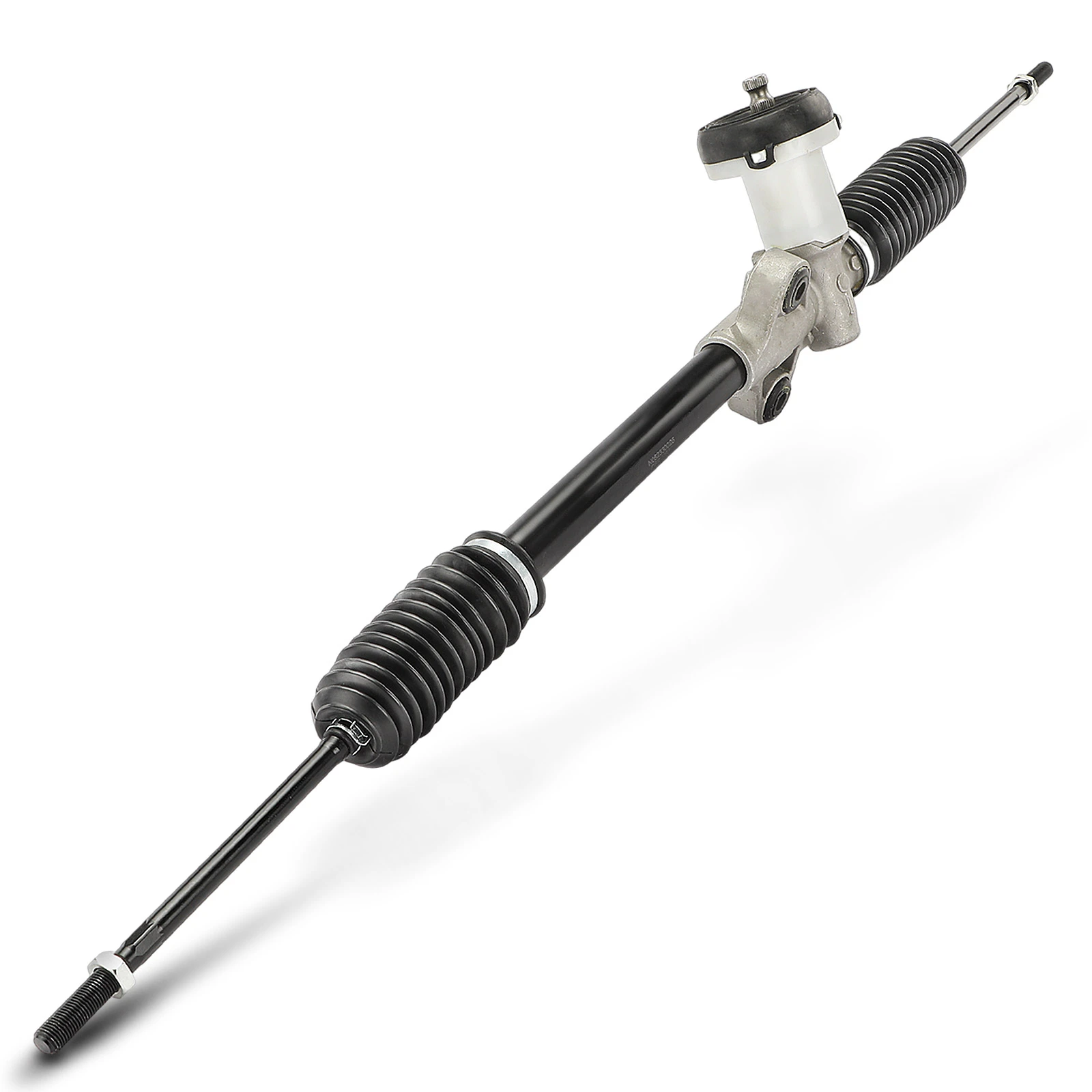

A-Premium offers high-quality power steering rack and pinion assemblies and gear boxes, crafted from premium materials like steel and aluminum. We provide a wide range of options to meet diverse vehicle needs, including variations with different accessories. You can choose components with or without outer tie rods to perfectly match your specific requirements. If you're looking to further upgrade your steering system, A-Premium also offers other parts like power steering hoses and power steering pumps.

At A-Premium, we go above and beyond to deliver an unparalleled customer experience. We proudly offer free standard shipping, a 90-day free return policy, and an industry-leading 3-year warranty. Our diligent customer service professionals are available to you day or night, ready to address any questions or concerns you may have.
