What is the wiring harness in a car？

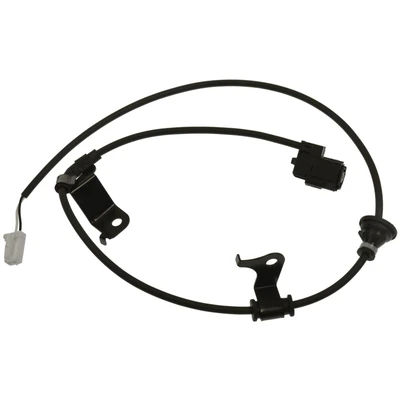

An automotive wiring harness, also known as a cable harness, wire harness, or wiring loom, is a structured set of wires, connectors, and terminals that are used to transmit electrical power and signals within a vehicle. It serves as an organized and efficient way to connect various electrical components and devices in the vehicle's electrical system.
A wiring harness for car is to provide a secure and reliable electrical connection between different components, such as the engine, transmission, lights, sensors, dashboard controls, audio systems, and more. It eliminates the need for individual wires to be routed and connected separately, making the installation process faster, more efficient, and less prone to errors.
Components of an automotive wiring harness
- Wires: Conductive paths in the wiring harness that carry electrical current. They are color-coded for easy identification and made of copper or aluminum for efficient conductivity.
- Connectors: Join different sections of the harness together or attach it to electrical components. They come in various shapes and sizes, like plugs, sockets, and terminals, designed to fit specific connectors on vehicle components.
- Terminals: End points of individual wires within the harness, connecting to connectors or components' electrical terminals. Terminals are crimped, soldered, or connected through other methods for secure electrical connections.
- Protective Covering: Encases the wiring harness to shield wires from heat, abrasion, moisture, and external factors. Common coverings include plastic tubing, convoluted loom, and heat-resistant tape.
Car wiring harnesses benefits
- Improved Reliability: Wiring harnesses are designed to be durable and resistant to wear, reducing the chances of electrical failures or short circuits.
- Simplified Repairs: Since the wiring is neatly organized and labeled, troubleshooting and repairing electrical issues become more manageable.
- Time and Cost Efficiency: Pre-manufactured wiring harnesses speed up the vehicle assembly process, reducing labor costs and the risk of assembly errors.
Standardization: Wiring harnesses help standardize electrical connections across different vehicle models, simplifying manufacturing and maintenance processes.
