Raybestos

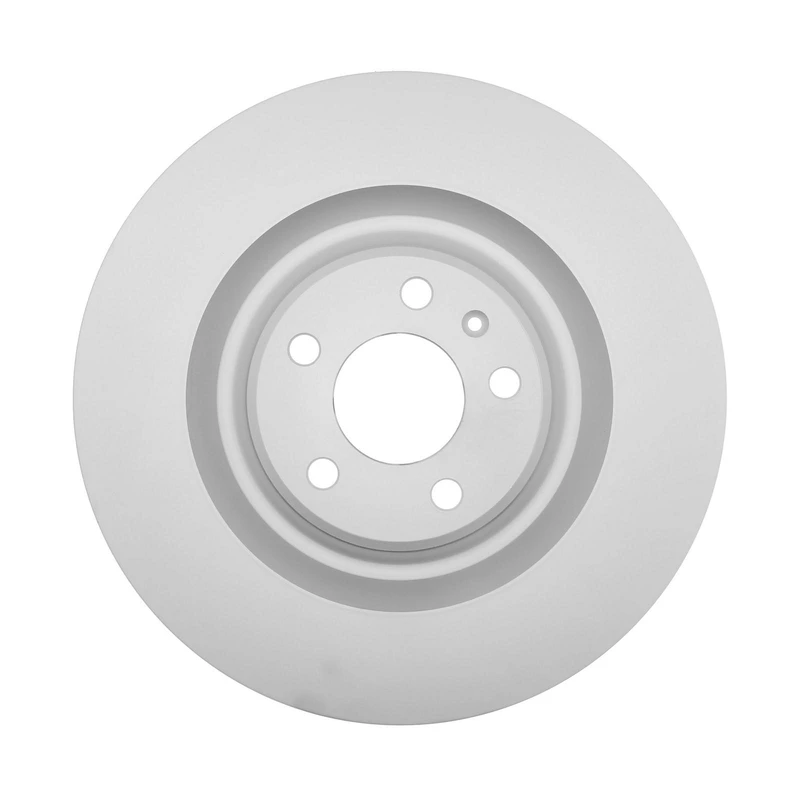

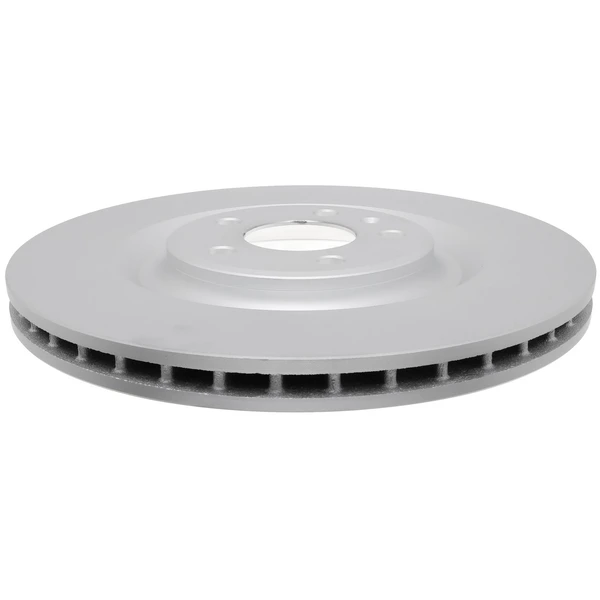

Raybestos 982304FZN Brake Rotor Rear Side

Part # 982304FZN
Item # 1000W6RA
$114.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
2.677
Center Hole Diameter (mm)
68
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.024
Discard Thickness (mm)
26
Grade Type
Regular
Harmonize Code
8708.30.5030
Inside Diameter (in)
9.03
Inside Diameter (mm)
229.35
Misc. Holes
1
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.598
Mounting Bolt Hole Diameter (mm)
15.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.103
Nominal Thickness (mm)
28
Outside Diameter (in)
13.772
Outside Diameter (mm)
349.8
Overall Height (in)
1.425
Overall Height (mm)
36.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
4M0615601J, 4M0 615 601 J - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
4M0615601P, 4M0 615 601 P - OEM PART NUMBER, AUDI, VOLKSWAGEN, VAG
45933 - CANADIAN TIRE, AUTOZONE, QUALIS
12133155, 121.33155 - CANADIAN TIRE, CENTRIC PARTS, CTEK
12733155R, 127.33155R - STOPTECH, CENTRIC PARTS
12833155R, 128.33155R - STOPTECH, CENTRIC PARTS
12733155L, 127.33155L - STOPTECH, CENTRIC PARTS
12633155SR, 126.33155SR - STOPTECH, CENTRIC PARTS
12633155CSL, 126.33155CSL - STOPTECH, CENTRIC PARTS
12633155SL, 126.33155SL - STOPTECH, CENTRIC PARTS
12533155CRY, 125.33155CRY - STOPTECH, CENTRIC PARTS
BR901682 - DURAGO, DURA CORP
12633155CSR, 126.33155CSR - STOPTECH, CENTRIC PARTS
12833155L, 128.33155L - STOPTECH, CENTRIC PARTS
12533155, 125.33155 - STOPTECH, CENTRIC PARTS
901682G - PEP BOYS
982304FZN - RAYBESTOS BRAKES
AX901682 - AUTOXTRA

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (18)vehicles
All
Audi
2017 - 2024AudiQ7
2019 - 2023Audie-tron Quattro
2019 - 2024AudiA8 Quattro
2019 - 2024AudiQ8
2020 - 2020AudiS7
2020 - 2020AudiS8
2020 - 2023Audie-tron Sportback
2020 - 2024AudiS6
2020 - 2024AudiS7 Sportback
2020 - 2024AudiSQ7
2020 - 2024AudiSQ8
2021 - 2024AudiS8
2022 - 2023Audie-tron S
2022 - 2023Audie-tron S Sportback
2024 - 2024AudiQ8 e-tron
2024 - 2024AudiQ8 e-tron Sportback
2024 - 2024AudiSQ8 e-tron
2024 - 2024AudiSQ8 e-tron Sportback
