Click to enlarge
Raybestos

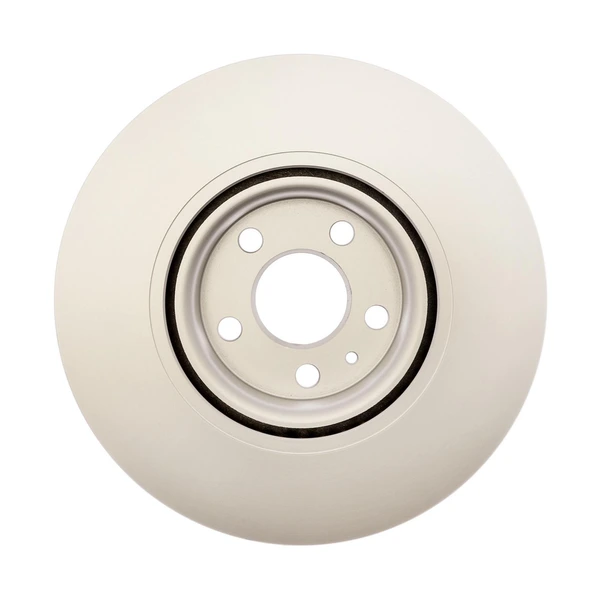

Raybestos 982272 Brake Rotor Front Side

Part # 982272
Item # 1000W8GN
$123.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.504
Center Hole Diameter (mm)
63.6
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.004
Discard Thickness (mm)
25.5
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.717
Inside Diameter (mm)
196
Mounting Bolt Hole Circle Diameter (in)
4.252
Mounting Bolt Hole Circle Diameter (mm)
108
Mounting Bolt Hole Diameter (in)
0.62
Mounting Bolt Hole Diameter (mm)
15.75
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
12.677
Outside Diameter (mm)
322
Overall Height (in)
1.89
Overall Height (mm)
48
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Diameter (in)
0.62
Stud/Lug Hole Diameter (mm)
15.75
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
12139058, 121.39058 - CANADIAN TIRE, CENTRIC PARTS, CTEK
31471413 - VOLVO WHITE, VOLVO
31423724 - VOLVO WHITE, VOLVO
316654460, 31665446-0 - VOLVO WHITE, VOLVO
32254356 - VOLVO WHITE, VOLVO
12139066, 121.39066 - CENTRIC PARTS, CTEK
314714130, 31471413-0 - VOLVO WHITE, VOLVO
12539058, 125.39058 - STOPTECH, CENTRIC PARTS
322543560, 32254356-0 - VOLVO WHITE, VOLVO
314237240, 31423724-0 - VOLVO WHITE, VOLVO
31665446 - VOLVO WHITE, VOLVO
32217561 - VOLVO
32300122 - VOLVO
322175610, 32217561-0 - VOLVO
45937 - QUALIS
982272 - RAYBESTOS BRAKES
323001220, 32300122-0 - VOLVO
322331850, 32233185-0 - VOLVO
32233185 - VOLVO
12539066, 125.39066 - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Volvo
2019 - 2021VolvoV60
2017 - 2023VolvoV90 Cross Country
2018 - 2023VolvoXC60
2019 - 2023VolvoS60
2019 - 2023VolvoXC40
2018 - 2021VolvoV90
2022 - 2024VolvoV60
2020 - 2023VolvoV60 Cross Country
2017 - 2023VolvoS90
