Click to enlarge
Raybestos

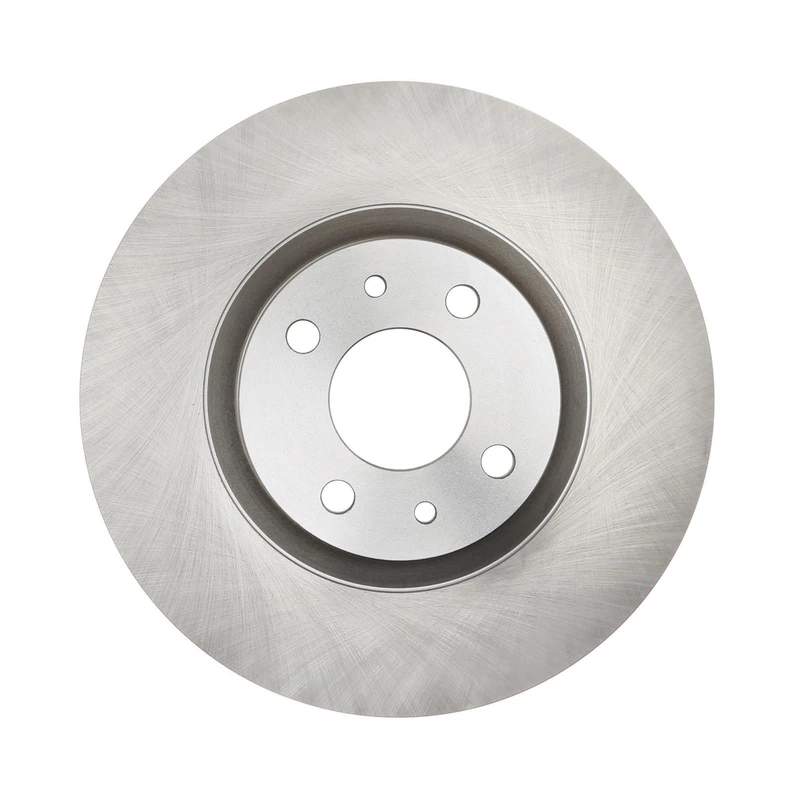

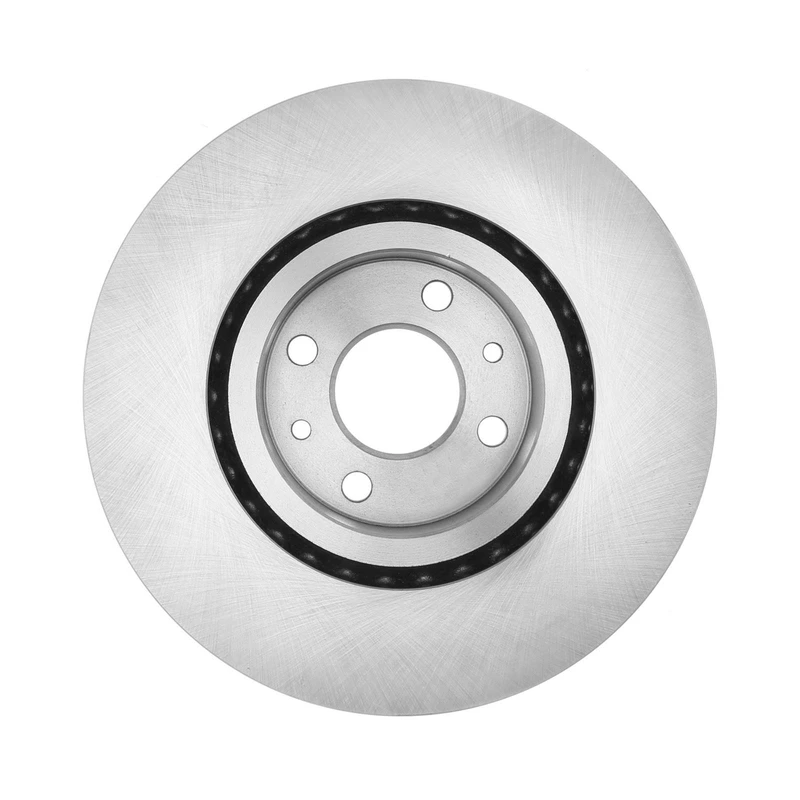

Raybestos 981771R Brake Rotor Front Side

Part # 981771R
Item # 1000UPG3
$54.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.323
Center Hole Diameter (mm)
59
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.795
Discard Thickness (mm)
20.2
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.76
Inside Diameter (mm)
171.7
Mounting Bolt Hole Circle Diameter (in)
3.858
Mounting Bolt Hole Circle Diameter (mm)
98
Mounting Bolt Hole Diameter (in)
0.52
Mounting Bolt Hole Diameter (mm)
13.2
Mounting Bolt Hole Quantity
4
Nominal Thickness (in)
0.866
Nominal Thickness (mm)
22
Outside Diameter (in)
11.141
Outside Diameter (mm)
283
Overall Height (in)
1.718
Overall Height (mm)
43.65
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
4
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
981771R
04779953AB
120.04004
120.04004CRY
121.04004
125.04004
126.04004CSL
126.04004CSR
126.04004SL
126.04004SR
127.04004L
127.04004R
128.04004CL
128.04004CR
128.04004L
128.04004R
19010306
320.04004
320.04004F
45610
4779953AA
4779953AB
68097225AA
72153
72153DG
72153DL
92938RGS
981771
981771FZN
BR901434

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Fiat
Ram
2012 - 2017Fiat500
2013 - 2016Fiat500
2013 - 2017Fiat500
2013 - 2017Fiat500
2016 - 2017FiatPalio
2018 - 2019Fiat500
2018 - 2019FiatPalio
2015 - 2020Ram700
