Raybestos

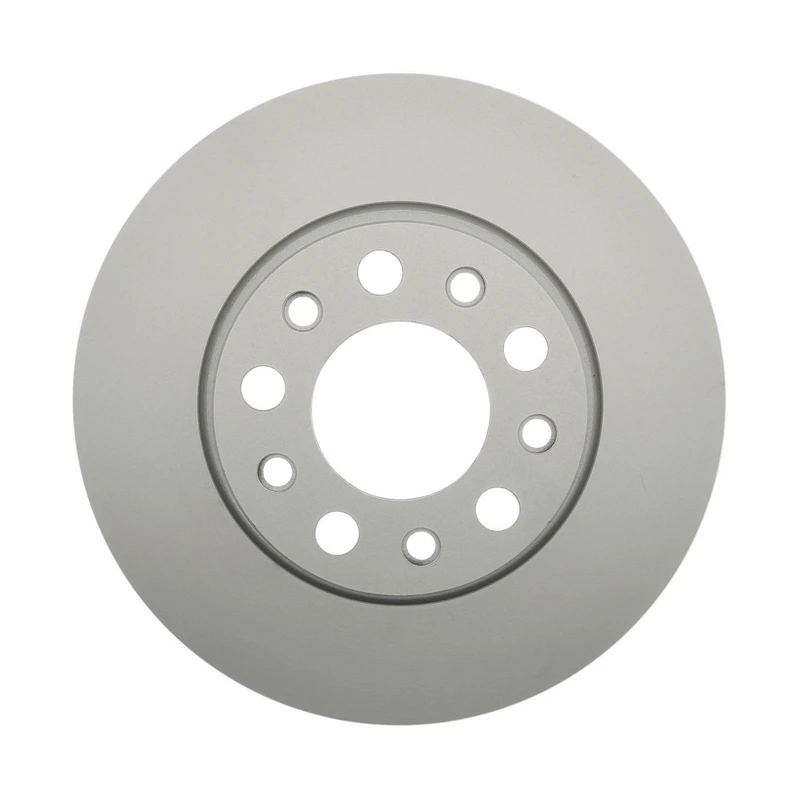

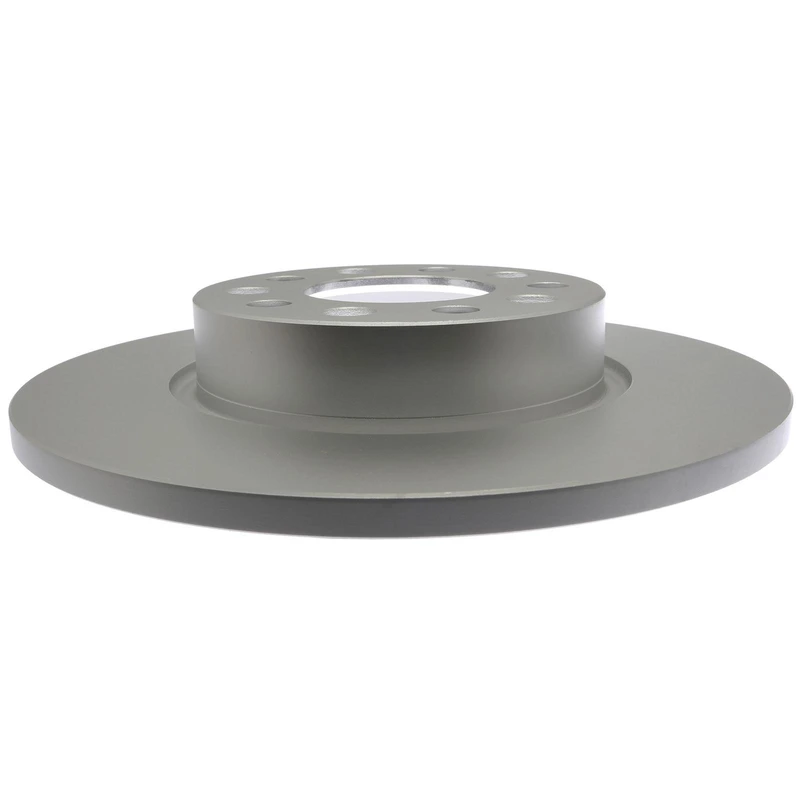

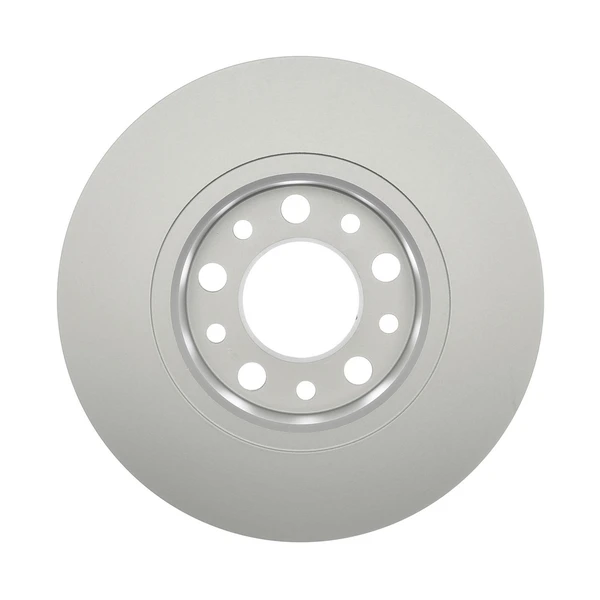

Raybestos 981643 Brake Rotor Rear Side

Part # 981643
Item # 1000VZV7
$71.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.756
Center Hole Diameter (mm)
70
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.394
Discard Thickness (mm)
10
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.693
Inside Diameter (mm)
170
Mounting Bolt Hole Circle Diameter (in)
4.331
Mounting Bolt Hole Circle Diameter (mm)
110
Mounting Bolt Hole Diameter (in)
0.657
Mounting Bolt Hole Diameter (mm)
16.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.472
Nominal Thickness (mm)
12
Outside Diameter (in)
10.945
Outside Diameter (mm)
278
Overall Height (in)
1.705
Overall Height (mm)
43.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
68248043AA, 6824 8043AA - ALFA ROMEO, JEEP, OEM PART NUMBER, FIAT, CHRYSLER
46843610, 468 43 610 - ALFA ROMEO, OEM PART NUMBER, FIAT
12158015, 121.58015 - CANADIAN TIRE, CENTRIC PARTS, CTEK
YH545323P - CARQUEST, ADVANCE AUTO PARTS
BR901392 - DURAGO, DURA CORP
72143DL - DURALAST, AUTOZONE
12758015R, 127.58015R - STOPTECH, CENTRIC PARTS
981643R - RAYBESTOS BRAKES, BRAKEBEST
981643 - RAYBESTOS BRAKES, BRAKEBEST
12858015R, 128.58015R - STOPTECH, CENTRIC PARTS
12658015SL, 126.58015SL - STOPTECH, CENTRIC PARTS
12758015L, 127.58015L - STOPTECH, CENTRIC PARTS
AX901392 - AUTO EXTRA, AUTOXTRA
12658015SR, 126.58015SR - STOPTECH, CENTRIC PARTS
12058015, 120.58015 - STOPTECH, CENTRIC PARTS
12858015L, 128.58015L - STOPTECH, CENTRIC PARTS
32058015, 320.58015 - CENTRIC PARTS
BD180673E - WAGNER BRAKE
72143 - AUTOZONE
14630005, 14-630005, 146.30005 - PROMAX
SDK6466 - NAPA
BD180673 - WAGNER BRAKE
R1392 - NEWTEK AUTOMOTIVE USA
60042014, 600-42014 - DYNAMIC
491506 - AUTOPAR

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Fiat
2016 - 2017Fiat500X
