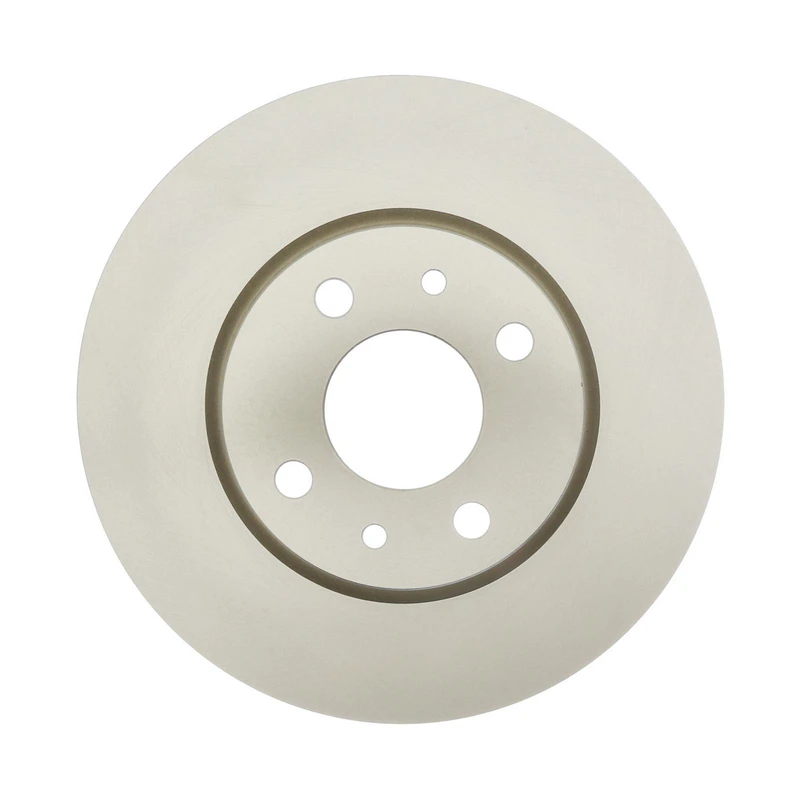

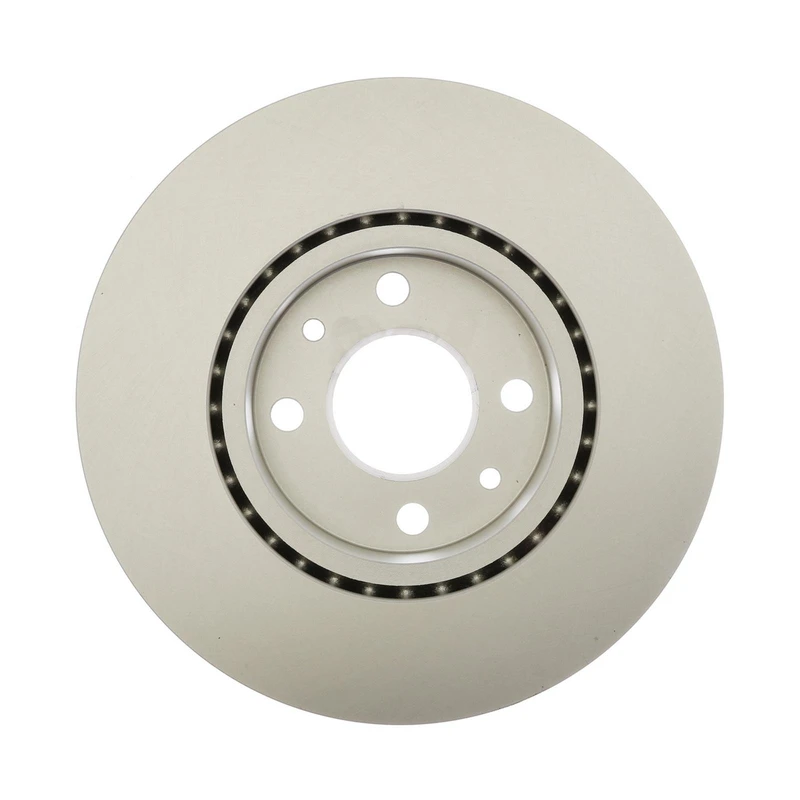

Raybestos 980950FZN Brake Rotor Front Side
Part # 980950FZN
Item # 1000W005
$59.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.323
- Center Hole Diameter (mm)
- 59
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.795
- Discard Thickness (mm)
- 20.2
- Harmonize Code
- 8708.30.5030
- Inside Diameter (in)
- 6.102
- Inside Diameter (mm)
- 155
- Mounting Bolt Hole Circle Diameter (in)
- 3.858
- Mounting Bolt Hole Circle Diameter (mm)
- 98
- Mounting Bolt Hole Diameter (in)
- 3.858
- Mounting Bolt Hole Diameter (mm)
- 98
- Mounting Bolt Hole Quantity
- 4
- Nominal Thickness (in)
- 0.866
- Nominal Thickness (mm)
- 22
- Outside Diameter (in)
- 10.126
- Outside Diameter (mm)
- 257.2
- Overall Height (in)
- 1.594
- Overall Height (mm)
- 40.5
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 4
- Surface Type
- Smooth
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31599 - DURALAST, NEWTEK AUTOMOTIVE USA, AIMCO
5154237AA, 5154 237AA - OEM PART NUMBER, FIAT, CHRYSLER
45563 - CANADIAN TIRE, AUTOZONE, QUALIS
12004002, 120.04002 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12504002, 125.04002 - STOPTECH, CENTRIC PARTS
12604002CSR, 126.04002CSR - STOPTECH, CENTRIC PARTS
12604002CSL, 126.04002CSL - STOPTECH, CENTRIC PARTS
BR901084 - DURAGO, DURA CORP
12804002CL, 128.04002CL - STOPTECH, CENTRIC PARTS
2901084 - UAP, GEOTECH
PRT6122 - BENDIX PREMIUM, BENDIX
12104002, 121.04002 - CENTRIC PARTS, CTEK
12804002CR, 128.04002CR - STOPTECH, CENTRIC PARTS
12804002R, 128.04002R - STOPTECH, CENTRIC PARTS
BD180460 - MONROE BRAKES, WAGNER BRAKE
12804002L, 128.04002L - STOPTECH, CENTRIC PARTS
YH324569P - CARQUEST, ADVANCE AUTO PARTS
SB980950 - WAGNER BRAKE, SILENT STOP
12004002CRY, 120.04002CRY - STOPTECH, CENTRIC PARTS
45563DL - DURALAST, AUTOZONE
05154237AA - FIAT, MOPAR
12704002L, 127.04002L - STOPTECH, CENTRIC PARTS
12604002SR, 126.04002SR - STOPTECH, CENTRIC PARTS
980950FZN - RAYBESTOS BRAKES, BRAKEBEST
12704002R, 127.04002R - STOPTECH, CENTRIC PARTS
980950R - RAYBESTOS BRAKES, BRAKEBEST
19010305 - BOSCH, BRAKEBEST
12604002SL, 126.04002SL - STOPTECH, CENTRIC PARTS
EBR1296EVC - POWERSTOP
32004002, 320.04002 - CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Fiat
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2013 - 2017 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
| 2012 - 2012 | Fiat | 500 |
