Raybestos

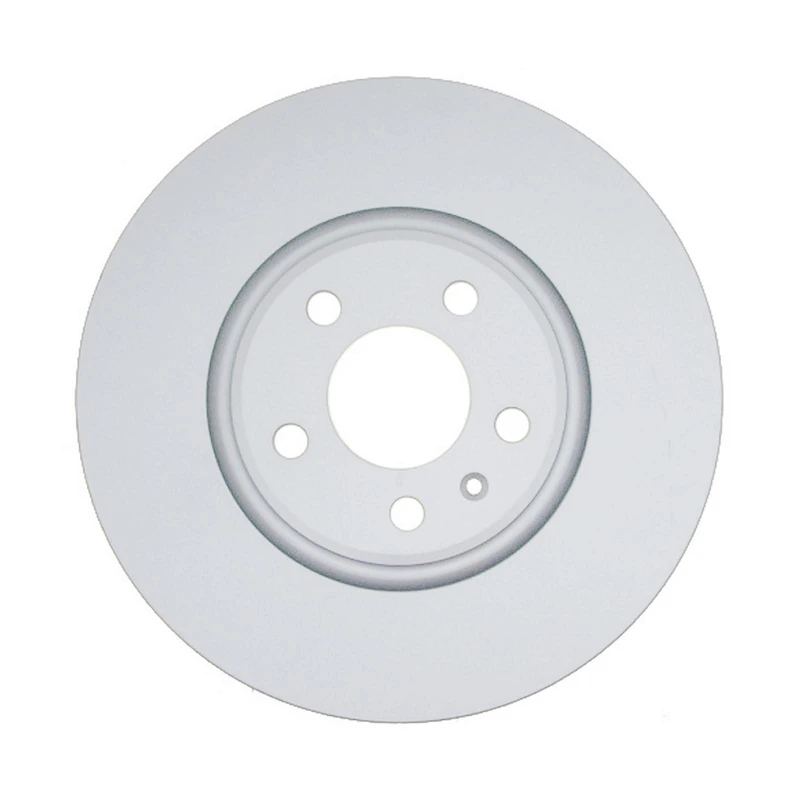

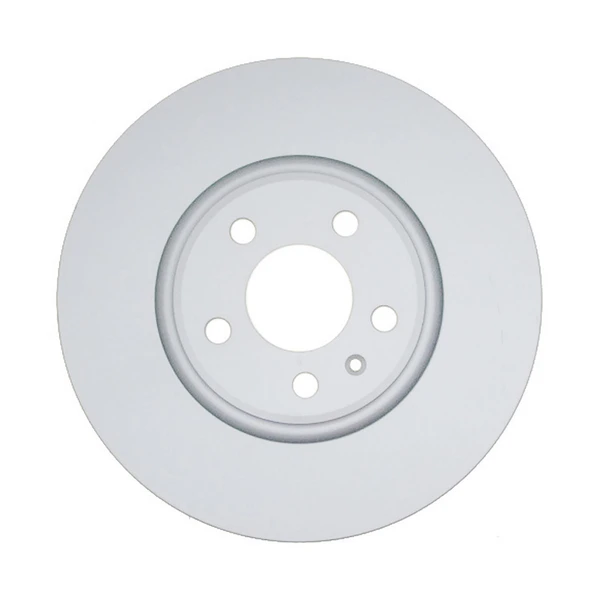

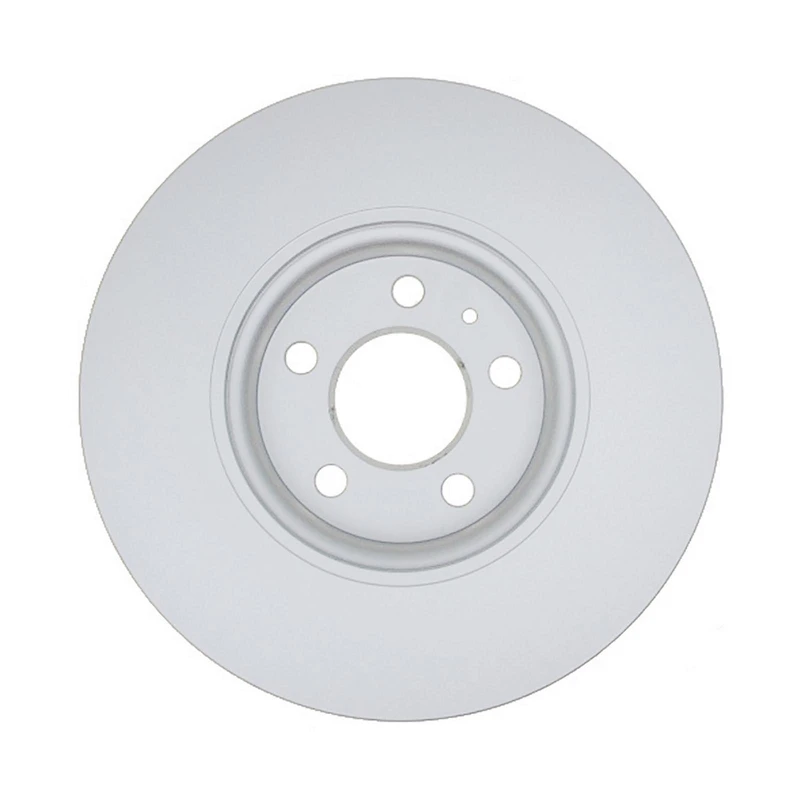

Raybestos 980941 Brake Rotor Front Side

Part # 980941
Item # 1000W340
$103.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.677
Center Hole Diameter (mm)
68
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.102
Discard Thickness (mm)
28
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.441
Inside Diameter (mm)
189
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.595
Mounting Bolt Hole Diameter (mm)
15.1
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.177
Nominal Thickness (mm)
29.9
Outside Diameter (in)
12.594
Outside Diameter (mm)
319.9
Overall Height (in)
2.055
Overall Height (mm)
52.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
8R0615301, 8R0 615 301 - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
8R0615301D, 8R0 615 301 D - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
8R0615301F, 8R0 615 301 F - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
45584 - DURALAST, CANADIAN TIRE, AIMCO, QUALIS
12133136, 121.33136 - AUTOZONE, CENTRIC PARTS, CTEK
32033136, 320.33136 - STOPTECH, CENTRIC PARTS
12533136CRY, 125.33136CRY - STOPTECH, CENTRIC PARTS
14011524 - BOSCH, BRAKEBEST
BR901126 - DURAGO, DURA CORP
12833136R, 128.33136R - STOPTECH, CENTRIC PARTS
12633136CSL, 126.33136CSL - STOPTECH, CENTRIC PARTS
12833136CR, 128.33136CR - STOPTECH, CENTRIC PARTS
12833136L, 128.33136L - STOPTECH, CENTRIC PARTS
980941 - RAYBESTOS BRAKES, BRAKEBEST
12833136CL, 128.33136CL - STOPTECH, CENTRIC PARTS
BPR6239 - BENDIX PREMIUM, BENDIX
78016DL - DURALAST, AUTOZONE
6621343 - WINHERE, PERFECT STOP
AX901126 - AUTO EXTRA, AUTOXTRA
12733136R, 127.33136R - STOPTECH, CENTRIC PARTS
12633136SL, 126.33136SL - STOPTECH, CENTRIC PARTS
12633136SR, 126.33136SR - STOPTECH, CENTRIC PARTS
12533136, 125.33136 - STOPTECH, CENTRIC PARTS
BR34499 - DURAGO, DURA CORP
12633136CSR, 126.33136CSR - STOPTECH, CENTRIC PARTS
355123122 - PAGID RACING, HELLA PAGID
34499 - NEWTEK AUTOMOTIVE USA, AIMCO
12733136L, 127.33136L - STOPTECH, CENTRIC PARTS
45613 - QUALIS
12033136, 120.33136 - CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (17)vehicles
All
Audi
2013 - 2016AudiA5
2014 - 2016AudiA7 Quattro
2011 - 2011AudiA5 Quattro
2011 - 2011AudiA4 Quattro
2012 - 2013AudiA7 Quattro
2012 - 2016AudiA4
2013 - 2016Audiallroad
2011 - 2011AudiA5
2012 - 2018AudiA6 Quattro
2011 - 2011AudiA4
2012 - 2018AudiA6
2012 - 2017AudiA5 Quattro
2012 - 2016AudiA4 Quattro
2009 - 2010AudiQ5
2012 - 2012AudiQ5
2011 - 2011AudiQ5
2012 - 2012AudiA5
