Raybestos

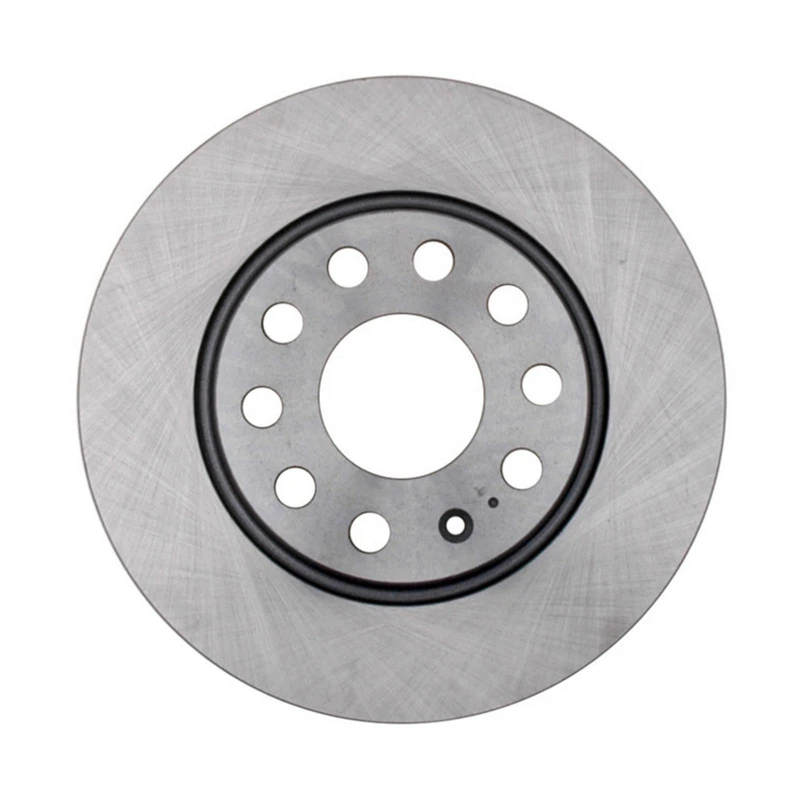

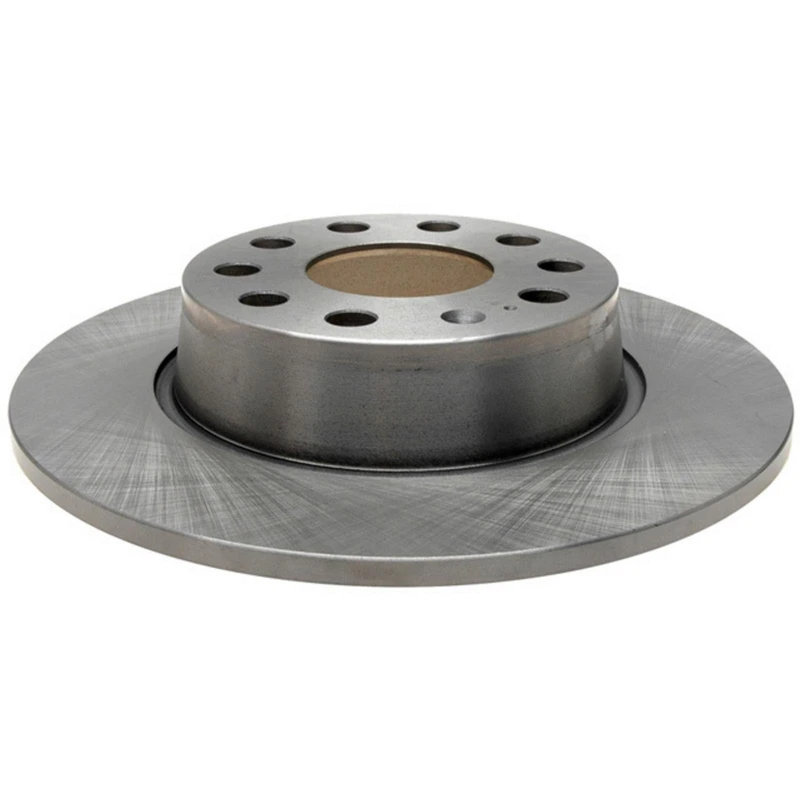

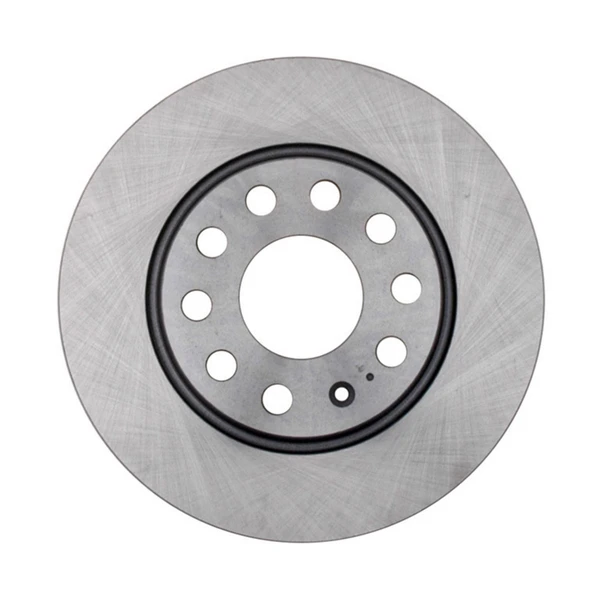

Raybestos 980798R Brake Rotor Rear Side

Part # 980798R
Item # 1000UN8W
$48.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.314
Discard Thickness (mm)
8
Grade Type
Regular
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.875
Inside Diameter (mm)
174.65
Misc. Holes
5
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.605
Mounting Bolt Hole Diameter (mm)
15.35
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.39
Nominal Thickness (mm)
9.9
Outside Diameter (in)
10.7
Outside Diameter (mm)
271.8
Overall Height (in)
1.92
Overall Height (mm)
48.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
1K0615601AA, 1K0 615 601 AA - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
5Q0615601D, 5Q0 615 601 D - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
561615601, 561 615 601 - OEM PART NUMBER, AUDI, VOLKSWAGEN, BMW
34431 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO
PRT6086 - BENDIX PREMIUM, BENDIX, BILSTEIN
12533131, 125.33131 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
2034431, 20-34431 - UAP, PROMAX, GEOTECH
561615601A, 561 615 601 A, 561 615 601A - OEM PART NUMBER, AUDI, VOLKSWAGEN
12633131CSR, 126.33131CSR - STOPTECH, CENTRIC PARTS
12733131L, 127.33131L - STOPTECH, CENTRIC PARTS
355116972 - PAGID RACING, HELLA PAGID
12633131CSL, 126.33131CSL - STOPTECH, CENTRIC PARTS
12733131R, 127.33131R - STOPTECH, CENTRIC PARTS
YH290873P - CARQUEST, ADVANCE AUTO PARTS
YH290873C - CARQUEST, ADVANCE AUTO PARTS
12633131SR, 126.33131SR - STOPTECH, CENTRIC PARTS
12633131SL, 126.33131SL - STOPTECH, CENTRIC PARTS
12533131CRY, 125.33131CRY - STOPTECH, CENTRIC PARTS
12133131, 121.33131 - CENTRIC PARTS, CTEK
661915, 66-1915 - WINHERE, PERFECT STOP
900930 - DURAGO, PARTS MASTER
45497 - CANADIAN TIRE, QUALIS
BR900930 - DURAGO, DURA CORP
12733131CR, 127.33131CR - STOPTECH, CENTRIC PARTS
12833131CR, 128.33131CR - STOPTECH, CENTRIC PARTS
12833131CL, 128.33131CL - STOPTECH, CENTRIC PARTS
5QM615601C, 5QM 615 601 C - OEM PART NUMBER, VOLKSWAGEN
12733131CL, 127.33131CL - STOPTECH, CENTRIC PARTS
5QM615601E - OEM PART NUMBER, VOLKSWAGEN
AX900930 - AUTO EXTRA, AUTOXTRA

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (55)vehicles
All
Audi
Volkswagen
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3
2010 - 2010AudiA3 Quattro
2011 - 2013AudiA3
2011 - 2013AudiA3 Quattro
2015 - 2018AudiA3 Quattro
2015 - 2020AudiA3
2016 - 2018AudiA3 Sportback e-tron
2022 - 2022AudiA3
2022 - 2022AudiA3 Quattro
2023 - 2023AudiA3
2023 - 2023AudiA3
2023 - 2023AudiA3 Quattro
2023 - 2023AudiA3 Quattro
2006 - 2010VolkswagenBora
