Raybestos

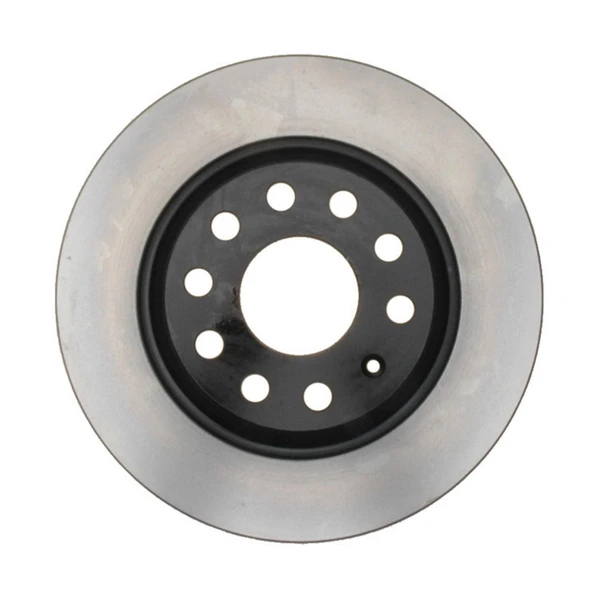

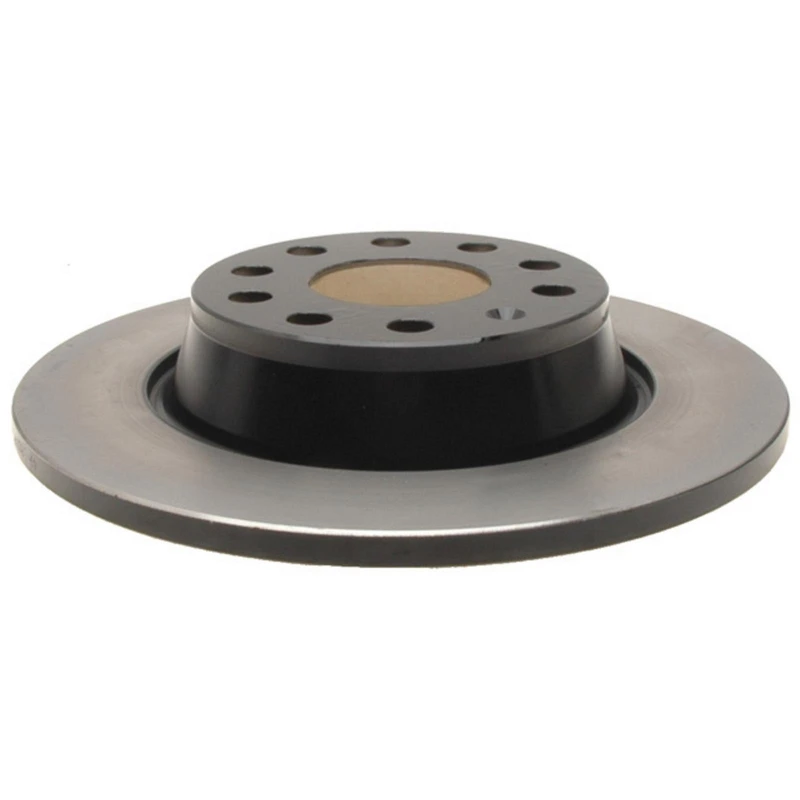

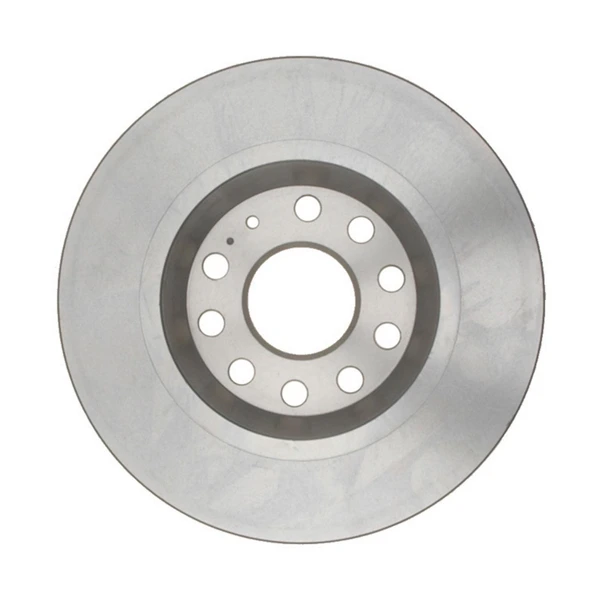

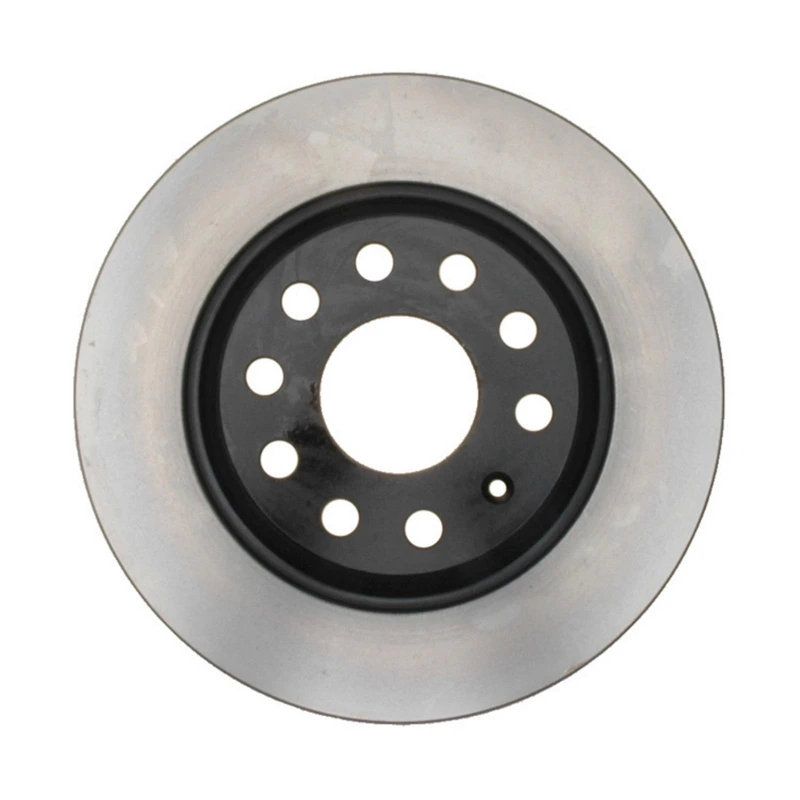

Raybestos 980791 Brake Rotor Rear Side

Part # 980791
Item # 1000VU6A
$72.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.394
Discard Thickness (mm)
10
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.29
Inside Diameter (mm)
185.15
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.599
Mounting Bolt Hole Diameter (mm)
15.2
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.469
Nominal Thickness (mm)
11.9
Outside Diameter (in)
11.094
Outside Diameter (mm)
281.8
Overall Height (in)
1.908
Overall Height (mm)
48.45
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
45114, 45-114 - DURALAST, CANADIAN TIRE, AUTOZONE, AIMCO, QUALIS
1K0615601AD, 1K0 615 601 AD - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
5Q0615601G, 5Q0 615 601 G - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
45499 - DURALAST, CANADIAN TIRE, AIMCO, QUALIS
12533129, 125.33129 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
PRT6059 - BENDIX PREMIUM, BENDIX, BILSTEIN
980791FZN - RAYBESTOS BRAKES, BRAKEBEST
980791R - RAYBESTOS BRAKES, BRAKEBEST
12633129SL, 126.33129SL - STOPTECH, CENTRIC PARTS
BPR6086 - BENDIX PREMIUM, BENDIX
12733129R, 127.33129R - STOPTECH, CENTRIC PARTS
BR34426 - DURAGO, DURA CORP
980791 - RAYBESTOS BRAKES, BRAKEBEST
34426 - NEWTEK AUTOMOTIVE USA, AIMCO
12533129CRY, 125.33129CRY - STOPTECH, CENTRIC PARTS
661868 - WINHERE, PERFECT STOP
12733129L, 127.33129L - STOPTECH, CENTRIC PARTS
355112142 - PAGID RACING, HELLA PAGID
70002, 700.02, 700-02 - DURALAST, AUTOZONE
32033129, 320.33129 - STOPTECH, CENTRIC PARTS
53011406 - BOSCH, BRAKEBEST
12833129R, 128.33129R - STOPTECH, CENTRIC PARTS
12833129CR, 128.33129CR - STOPTECH, CENTRIC PARTS
YH514352P - CARQUEST, ADVANCE AUTO PARTS
12833129L, 128.33129L - STOPTECH, CENTRIC PARTS
12833129CL, 128.33129CL - STOPTECH, CENTRIC PARTS
12633129SR, 126.33129SR - STOPTECH, CENTRIC PARTS
12633129CSL, 126.33129CSL - STOPTECH, CENTRIC PARTS
12133129, 121.33129 - CENTRIC PARTS, CTEK
12633129CSR, 126.33129CSR - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (27)vehicles
All
Audi
Volkswagen
2015 - 2015VolkswagenCC
2009 - 2010VolkswagenPassat CC
2008 - 2008VolkswagenR32
2006 - 2010VolkswagenBora
2016 - 2016VolkswagenCC
2006 - 2009VolkswagenRabbit
2017 - 2017VolkswagenCC
2015 - 2015AudiQ3 Quattro
2006 - 2006VolkswagenGolf
2009 - 2012VolkswagenCC
2009 - 2017VolkswagenTiguan
2010 - 2011VolkswagenGolf
2014 - 2014VolkswagenCC
2014 - 2014VolkswagenCC
2005 - 2010VolkswagenJetta
2018 - 2018VolkswagenTiguan Limited
2013 - 2013VolkswagenCC
2017 - 2017VolkswagenTiguan Limited
2006 - 2010VolkswagenGTI
2007 - 2009VolkswagenJetta City
