Raybestos

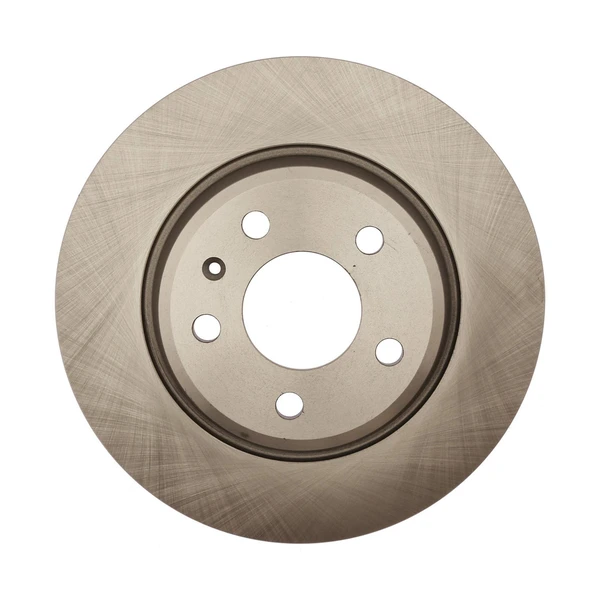

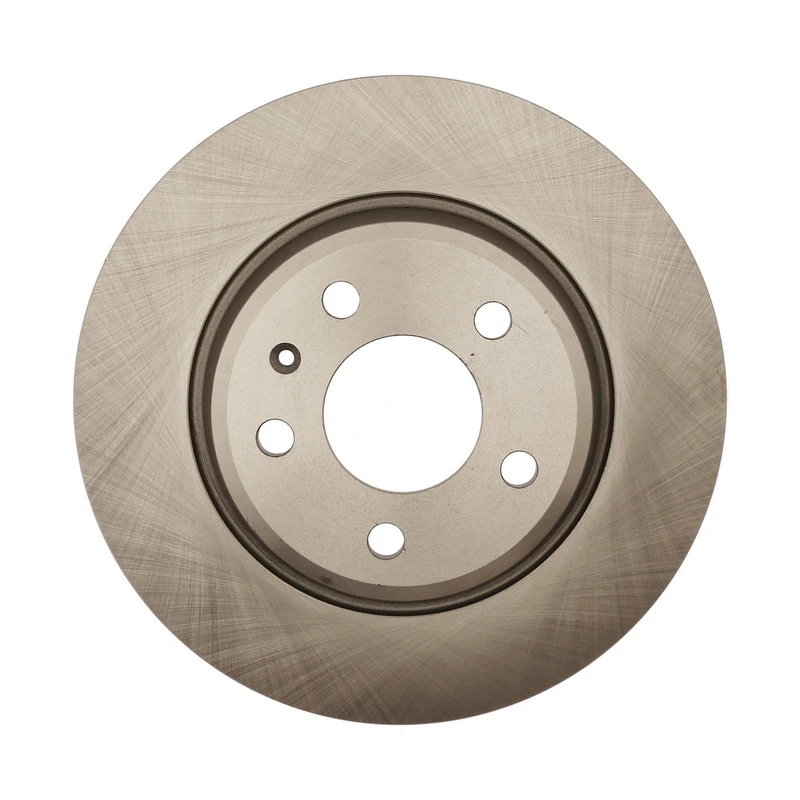

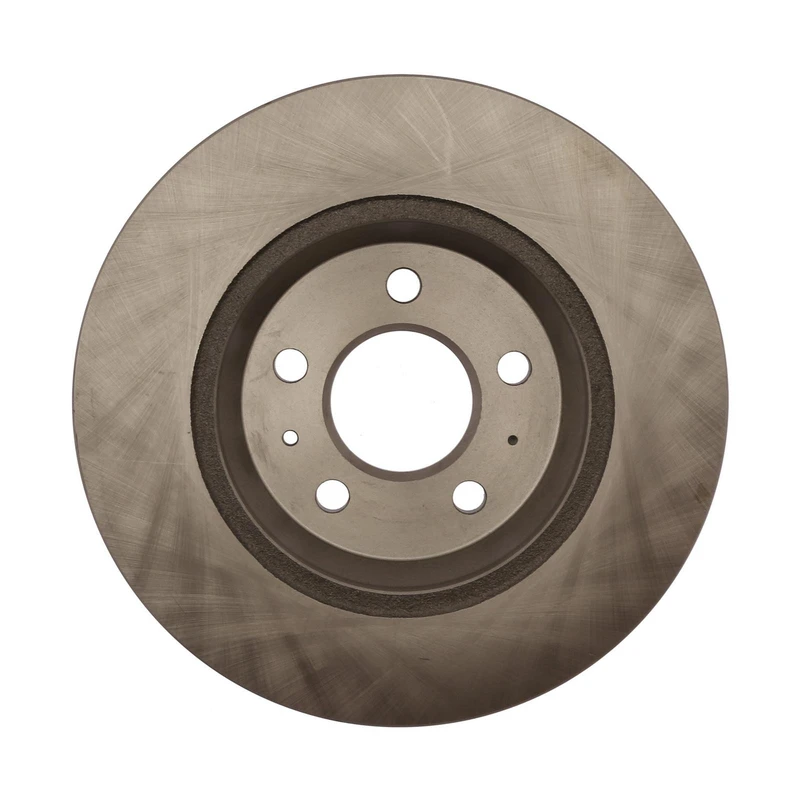

Raybestos 980694R Brake Rotor Rear Side

Part # 980694R
Item # 1000UEC1
$47.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.677
Center Hole Diameter (mm)
68
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.394
Discard Thickness (mm)
10
Harmonize Code
8708.30.5030
Inside Diameter (in)
7.638
Inside Diameter (mm)
194
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.605
Mounting Bolt Hole Diameter (mm)
15.35
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.465
Nominal Thickness (mm)
11.8
Outside Diameter (in)
11.811
Outside Diameter (mm)
300
Overall Height (in)
1.429
Overall Height (mm)
36.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
980694R
083-3321
120.33127
121.33127
125.33127
125.33127CRY
126.33127CSL
126.33127CSR
126.33127SL
126.33127SR
127.33127CL
127.33127CR
127.33127L
127.33127R
128.33127CL
128.33127CR
128.33127L
128.33127R
14-34403
14011522
14011523
320.33127
320.33127F
34403
355113932
411550
45454
4848
661775
70029DL

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (32)vehicles
All
Audi
2008 - 2016AudiA5
2008 - 2017AudiA5 Quattro
2009 - 2009AudiA4
2009 - 2009AudiA4
2009 - 2009AudiA4
2009 - 2009AudiA4
2009 - 2009AudiA4
2009 - 2009AudiA4
2009 - 2009AudiA4 Quattro
2009 - 2009AudiA4 Quattro
2009 - 2009AudiA4 Quattro
2009 - 2009AudiA4 Quattro
2009 - 2012AudiQ5
2010 - 2016AudiA4
2010 - 2016AudiA4 Quattro
2012 - 2013AudiA6
2012 - 2013AudiA6 Quattro
2012 - 2013AudiA7 Quattro
2013 - 2013AudiQ5
2013 - 2016AudiA4 allroad
