Raybestos

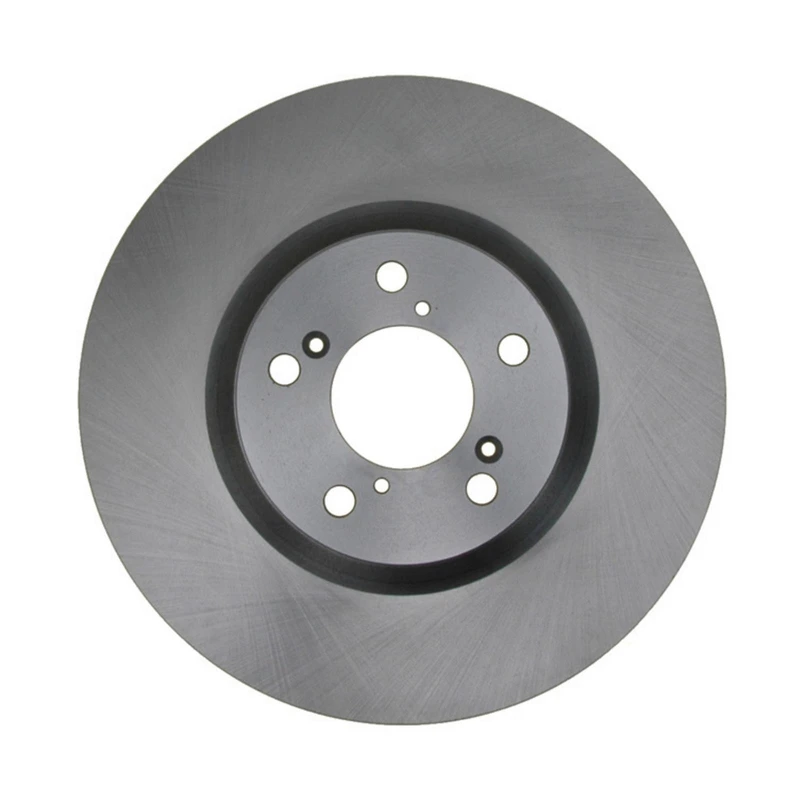

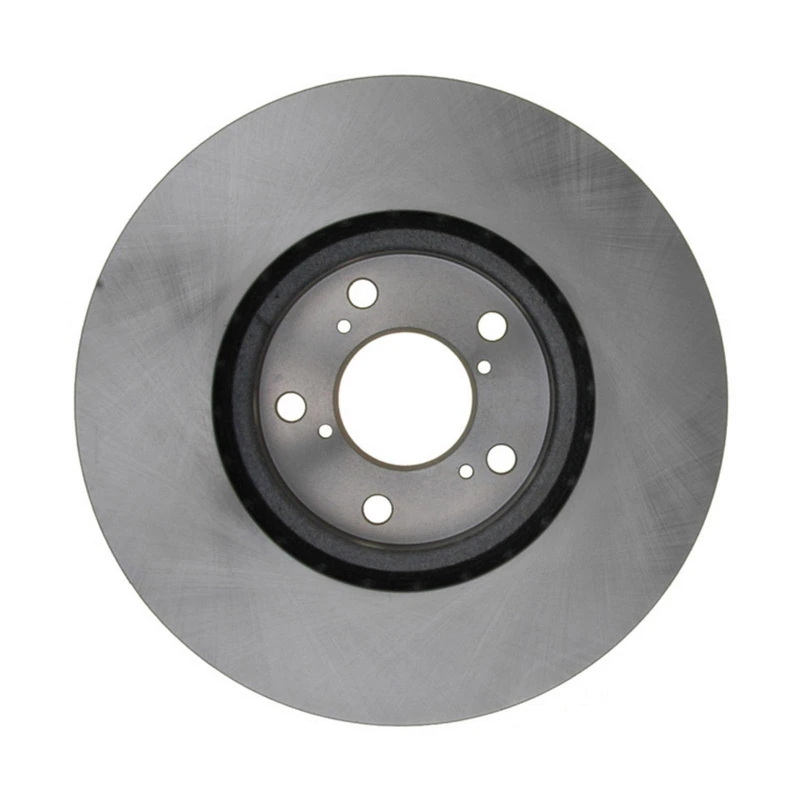

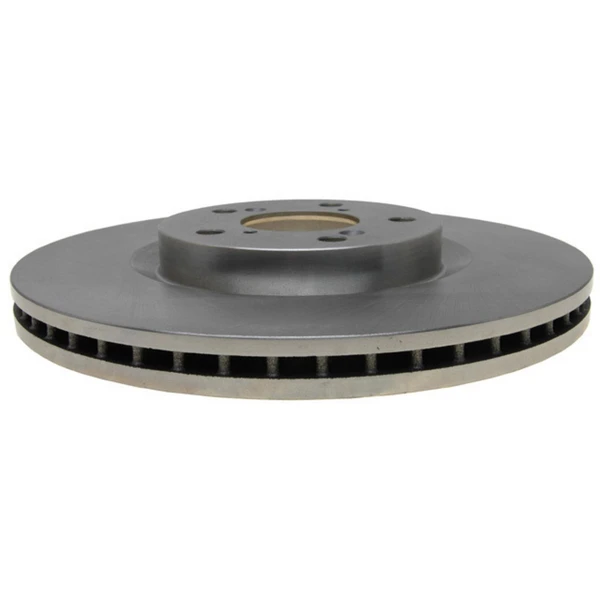

Raybestos 980566R Brake Rotor Front Side

Part # 980566R
Item # 1000XLGP
$75.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.76
Center Hole Diameter (mm)
70.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.024
Discard Thickness (mm)
26
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.566
Mounting Bolt Hole Diameter (mm)
14.4
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.102
Nominal Thickness (mm)
28
Outside Diameter (in)
12.984
Outside Diameter (mm)
329.8
Overall Height (in)
1.858
Overall Height (mm)
47.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
980566R
120.40071
120.40071CRY
121.40071
126.40071CSL
126.40071CSR
126.40071SL
126.40071SR
127.40071CL
127.40071CR
127.40071L
127.40071R
128.40071CL
128.40071CR
128.40071L
128.40071R
14-31468
20-31468
2031468
227.40071L
227.40071R
26011445
31468
320.40071
321.40071
44605
44605DG
45251STXA00
45251STXA01
45251STXH01

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Acura
Honda
2007 - 2013AcuraMDX
2010 - 2013AcuraZDX
2014 - 2020AcuraRLX
2009 - 2015HondaPilot
