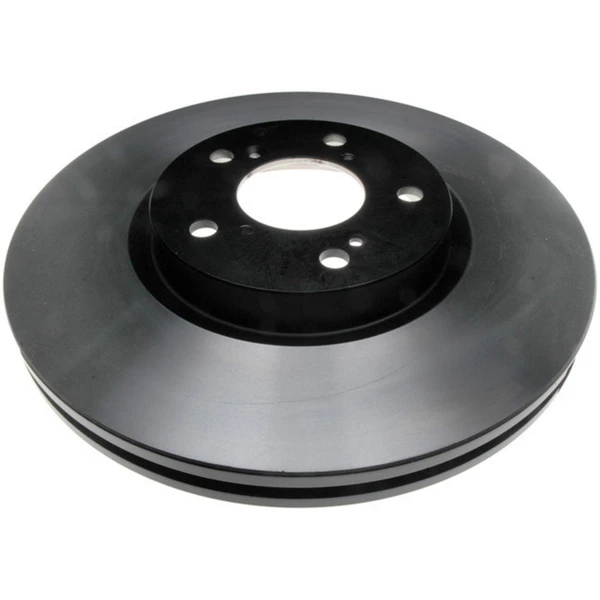

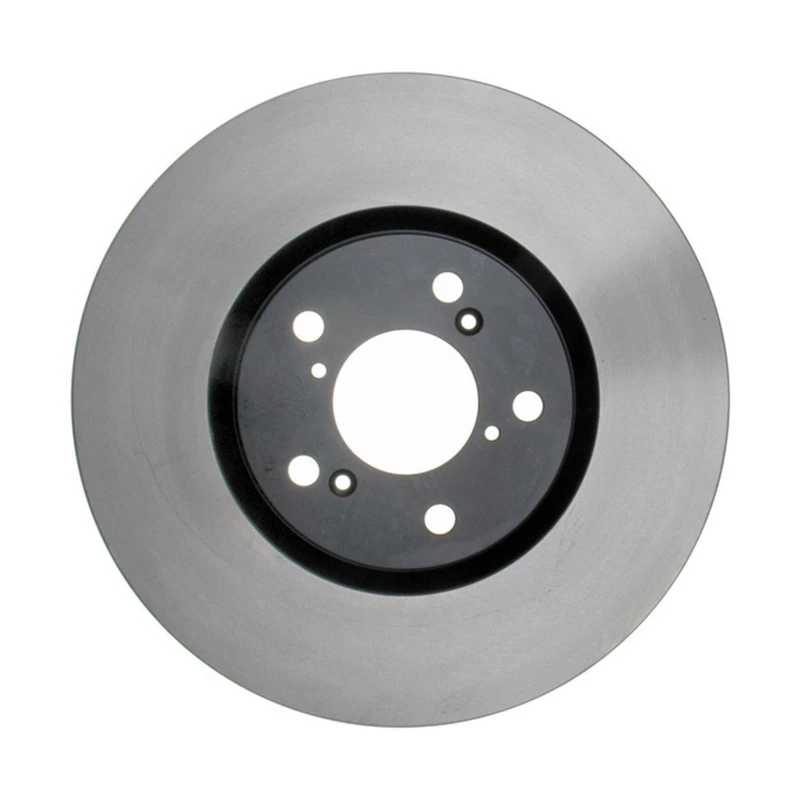

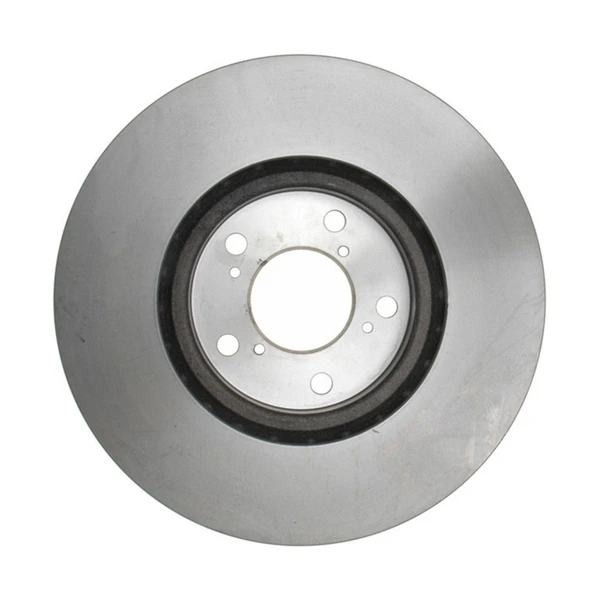

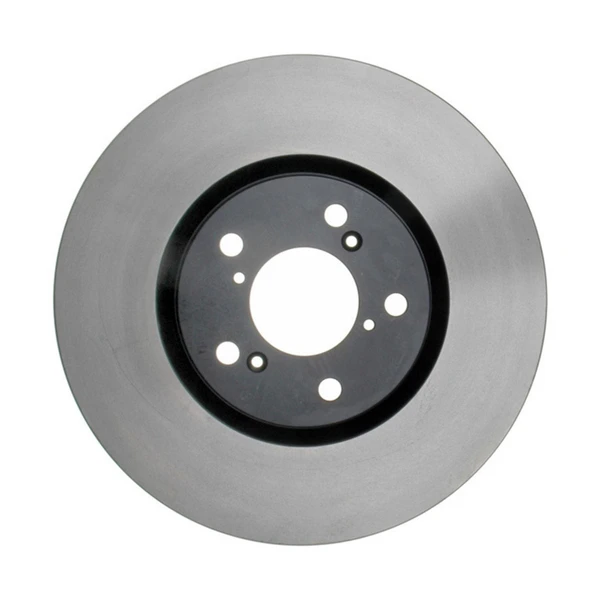

Raybestos 980566 Brake Rotor Front Side
Part # 980566
Item # 1000VWDQ
$102.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.76
- Center Hole Diameter (mm)
- 70.1
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.024
- Discard Thickness (mm)
- 26
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.72
- Mounting Bolt Hole Circle Diameter (mm)
- 119.9
- Mounting Bolt Hole Diameter (in)
- 0.566
- Mounting Bolt Hole Diameter (mm)
- 14.4
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.102
- Nominal Thickness (mm)
- 28
- Outside Diameter (in)
- 12.984
- Outside Diameter (mm)
- 329.8
- Overall Height (in)
- 1.858
- Overall Height (mm)
- 47.2
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31468 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
45251STXH01, 45251-STX-H01 - ACURA, OEM PART NUMBER, HONDA
2031468, 20-31468 - UAP, PROMAX, GEOTECH
44605 - CANADIAN TIRE, AUTOZONE, QUALIS
12040071, 120.40071 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
45251STXA00, 45251-STX-A00 - ACURA, OEM PART NUMBER, HONDA
45251STXA01, 45251-STX-A01 - ACURA, OEM PART NUMBER, HONDA
45251TY3A00 - ACURA, OEM PART NUMBER, HONDA
YH200523 - CARQUEST, ADVANCE AUTO PARTS
12840071R, 128.40071R - STOPTECH, CENTRIC PARTS
26011445 - BOSCH, BRAKEBEST
BD180044 - MONROE BRAKES, WAGNER BRAKE
12840071L, 128.40071L - STOPTECH, CENTRIC PARTS
YH200523P - CARQUEST, ADVANCE AUTO PARTS
980566R - RAYBESTOS BRAKES, BRAKEBEST
BR31468 - DURAGO, DURA CORP
YH200523C - CARQUEST, ADVANCE AUTO PARTS
12740071CR, 127.40071CR - STOPTECH, CENTRIC PARTS
6620989 - WINHERE, PERFECT STOP
12740071L, 127.40071L - STOPTECH, CENTRIC PARTS
12640071CSR, 126.40071CSR - STOPTECH, CENTRIC PARTS
12740071CL, 127.40071CL - STOPTECH, CENTRIC PARTS
PRT5783 - BENDIX PREMIUM, BENDIX
12740071R, 127.40071R - STOPTECH, CENTRIC PARTS
12640071CSL, 126.40071CSL - STOPTECH, CENTRIC PARTS
BR900530 - DURAGO, DURA CORP
12640071SL, 126.40071SL - STOPTECH, CENTRIC PARTS
900530 - DURAGO, PARTS MASTER
12040071CRY, 120.40071CRY - STOPTECH, CENTRIC PARTS
980566 - RAYBESTOS BRAKES, BRAKEBEST
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Acura
Honda
| 2009 - 2015 | Honda | Pilot |
| 2010 - 2013 | Acura | ZDX |
| 2014 - 2020 | Acura | RLX |
| 2007 - 2013 | Acura | MDX |
