Raybestos

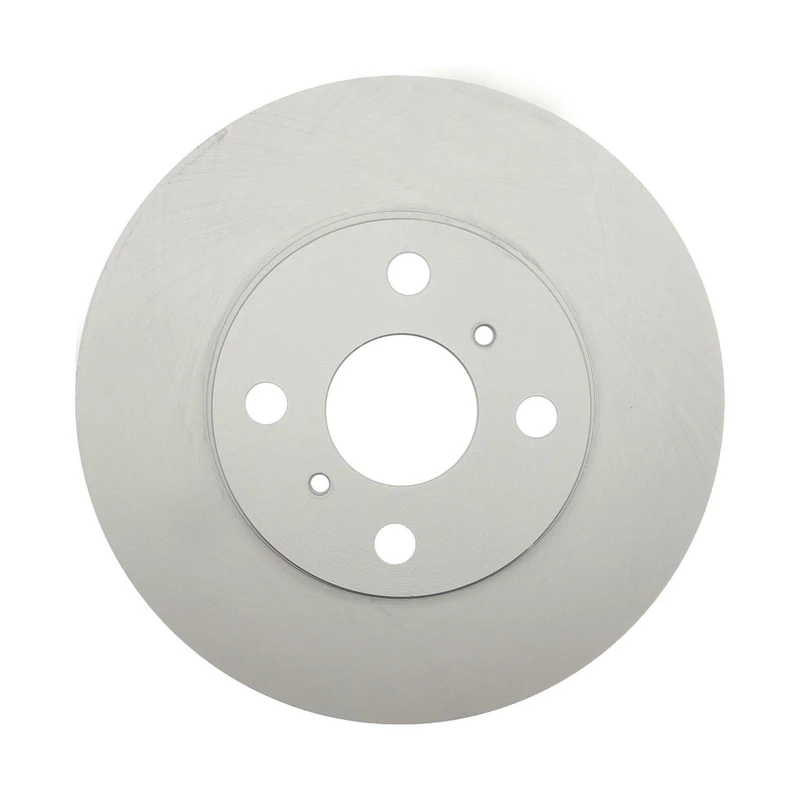

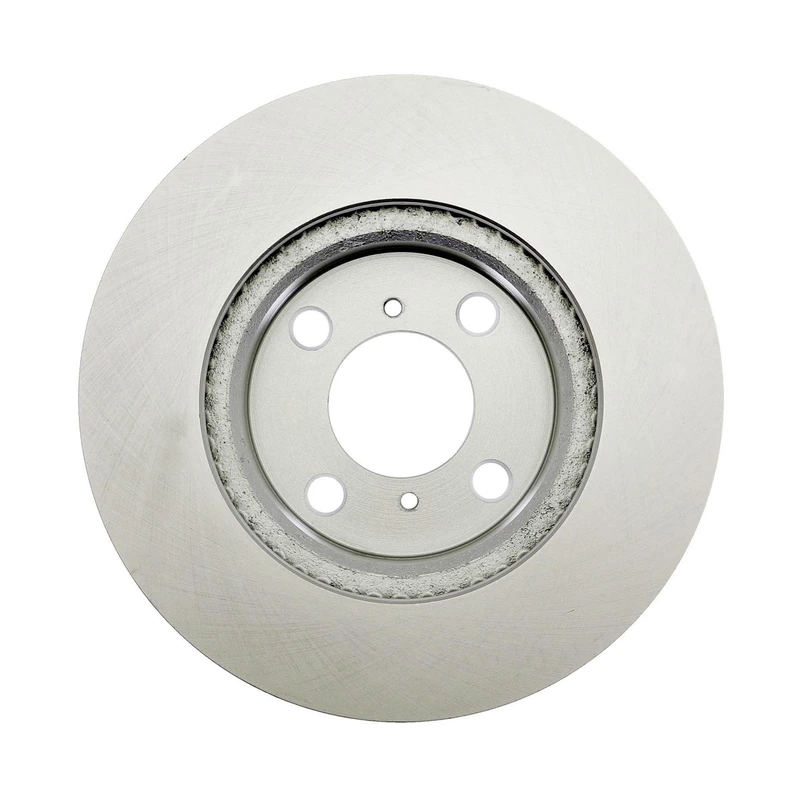

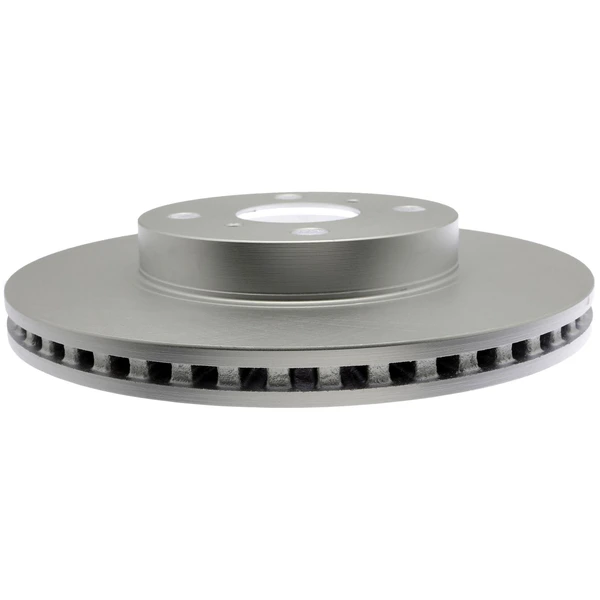

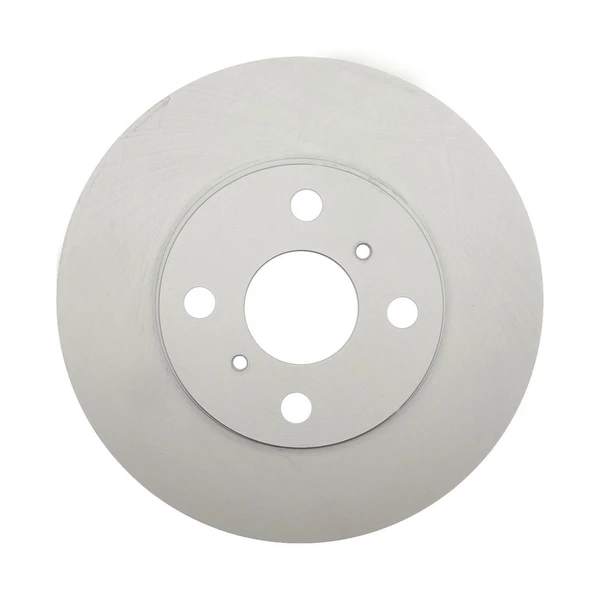

Raybestos 980476FZN Brake Rotor Front Side

Part # 980476FZN
Item # 1000VQEX
$51.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.17
Center Hole Diameter (mm)
55.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.748
Discard Thickness (mm)
19
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.573
Mounting Bolt Hole Diameter (mm)
14.55
Mounting Bolt Hole Quantity
4
Nominal Thickness (in)
0.866
Nominal Thickness (mm)
22
Outside Diameter (in)
10.039
Outside Diameter (mm)
255
Overall Height (in)
1.811
Overall Height (mm)
46
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
4
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31439, 3-14-39, 3-1439 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, MOPAR
44579 - DURALAST, CANADIAN TIRE, AUTOZONE, QUALIS
BD126409 - MONROE BRAKES, WAGNER BRAKE, ADVANCE AUTO PARTS
4351252120, 43512-52120 - OEM PART NUMBER, TOYOTA, SCION
2031439, 20-31439 - UAP, PROMAX, GEOTECH
12044143, 120.44143 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12644143CSL, 126.44143CSL - STOPTECH, CENTRIC PARTS
YH145710C - CARQUEST, ADVANCE AUTO PARTS
12644143CSR, 126.44143CSR - STOPTECH, CENTRIC PARTS
YH145710P - CARQUEST, ADVANCE AUTO PARTS
12044143CRY, 120.44143CRY - STOPTECH, CENTRIC PARTS
AX900348 - AUTO EXTRA, AUTOXTRA
980476R - RAYBESTOS BRAKES, BRAKEBEST
900348 - DURAGO, PARTS MASTER
12744143R, 127.44143R - STOPTECH, CENTRIC PARTS
12744143L, 127.44143L - STOPTECH, CENTRIC PARTS
YH145710 - CARQUEST, ADVANCE AUTO PARTS
12844143CR, 128.44143CR - STOPTECH, CENTRIC PARTS
50011325 - BOSCH, BRAKEBEST
12844143CL, 128.44143CL - STOPTECH, CENTRIC PARTS
980476FZN - RAYBESTOS BRAKES, BRAKEBEST
12644143SL, 126.44143SL - STOPTECH, CENTRIC PARTS
BR90034802, BR900348-02 - DURAGO, DURA CORP
PRT5710 - BENDIX PREMIUM, BENDIX
12644143SR, 126.44143SR - STOPTECH, CENTRIC PARTS
435120D190, 43512-0D190 - OEM PART NUMBER, TOYOTA
SB980476 - WAGNER BRAKE, SILENT STOP
12144143, 121.44143 - CENTRIC PARTS, CTEK
BR900348 - DURAGO, DURA CORP
22744143R, 227.44143R - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Scion
Toyota
2012 - 2021ToyotaPrius C
2016 - 2018ToyotaYaris
2017 - 2017ToyotaYaris
2006 - 2015ToyotaYaris
2013 - 2013ScioniQ
2016 - 2018ToyotaYaris
