Raybestos

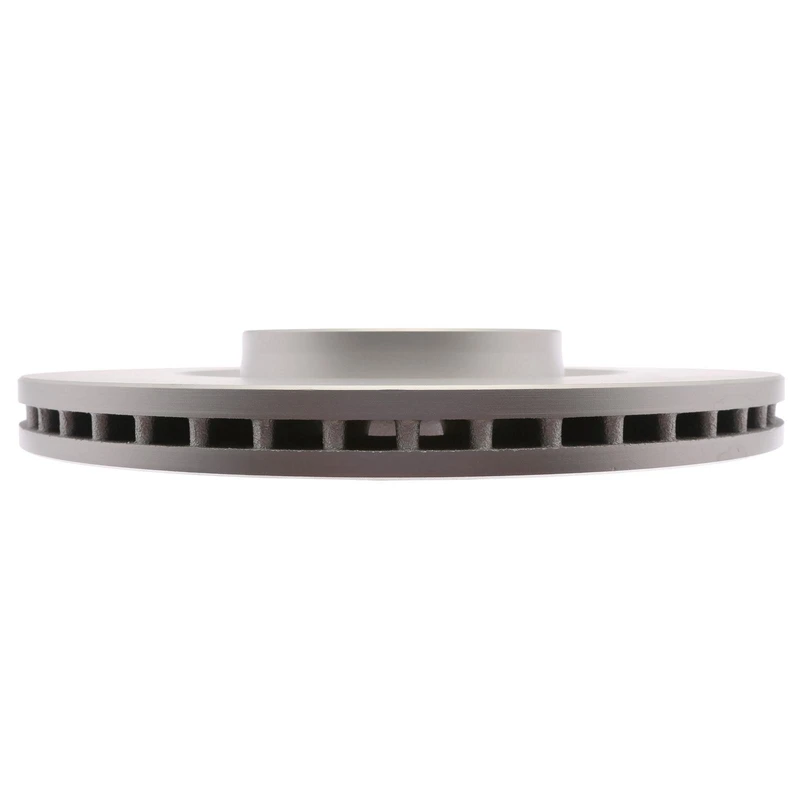

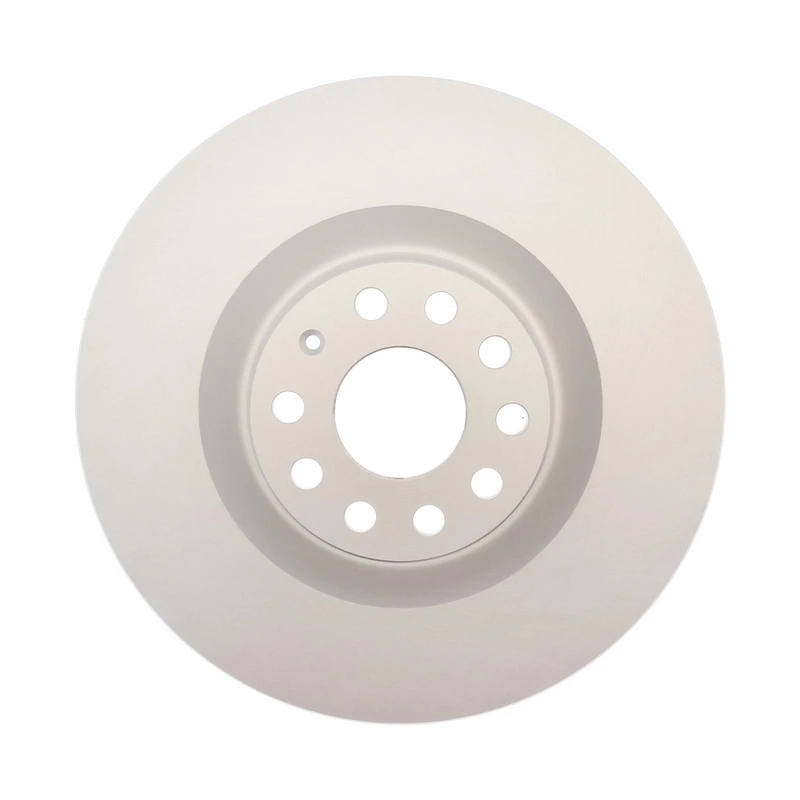

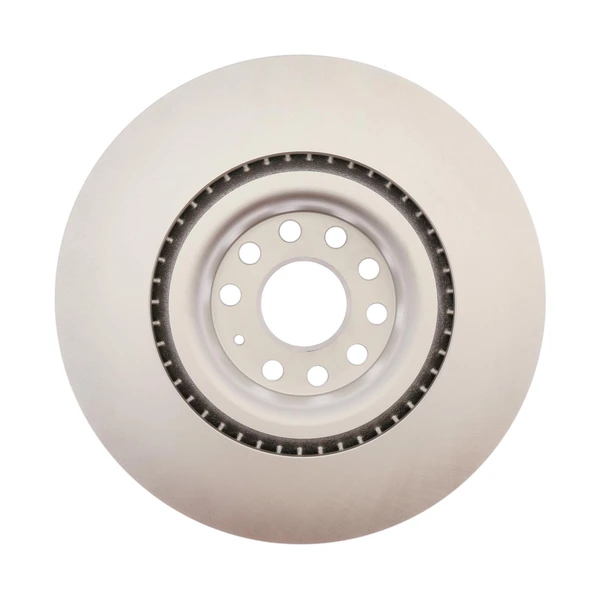

Raybestos 980471FZN Brake Rotor Front Side

Part # 980471FZN
Item # 1000VKT8
$118.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.559
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.063
Discard Thickness (mm)
27
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Quantity
9
Nominal Thickness (in)
1.18
Nominal Thickness (mm)
29.95
Outside Diameter (in)
13.58
Outside Diameter (mm)
344.95
Overall Height (in)
1.958
Overall Height (mm)
49.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
9
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34308 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
1K0615301M, 1K0 615 301 M - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
PRT5986 - BENDIX PREMIUM, BENDIX, BILSTEIN
YH200944 - CARQUEST, ADVANCE AUTO PARTS
BR34308 - DURAGO, DURA CORP
45452 - CANADIAN TIRE, QUALIS
53011413 - BOSCH, BRAKEBEST
12833112R, 128.33112R - STOPTECH, CENTRIC PARTS
12633112CSR, 126.33112CSR - STOPTECH, CENTRIC PARTS
12833112L, 128.33112L - STOPTECH, CENTRIC PARTS
12733112CR, 127.33112CR - STOPTECH, CENTRIC PARTS
980471 - RAYBESTOS BRAKES, BRAKEBEST
12833112CR, 128.33112CR - STOPTECH, CENTRIC PARTS
12533112, 125.33112 - STOPTECH, CENTRIC PARTS
12133112, 121.33112 - CENTRIC PARTS, CTEK
12833112CL, 128.33112CL - STOPTECH, CENTRIC PARTS
980471FZN - RAYBESTOS BRAKES, BRAKEBEST
BR900818 - DURAGO, DURA CORP
12733112CL, 127.33112CL - STOPTECH, CENTRIC PARTS
12733112R, 127.33112R - STOPTECH, CENTRIC PARTS
12633112SR, 126.33112SR - STOPTECH, CENTRIC PARTS
12533112CRY, 125.33112CRY - STOPTECH, CENTRIC PARTS
12733112L, 127.33112L - STOPTECH, CENTRIC PARTS
12633112SL, 126.33112SL - STOPTECH, CENTRIC PARTS
12633112CSL, 126.33112CSL - STOPTECH, CENTRIC PARTS
6620549 - WINHERE, PERFECT STOP
900818 - DURAGO, PARTS MASTER
DF4166S - TRW STEERING AND SUSPENSION PARTS, TRW
980471R - RAYBESTOS BRAKES, BRAKEBEST
4350 - TRW

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Audi
Seat
Volkswagen
2008 - 2012AudiS3
2013 - 2013VolkswagenGTI
2008 - 2008VolkswagenPassat
2009 - 2011VolkswagenCC
2008 - 2008VolkswagenR32
2011 - 2011AudiA3
2013 - 2013VolkswagenGolf
2012 - 2012VolkswagenCC
2012 - 2013VolkswagenGolf R
2011 - 2011AudiA3 Quattro
2009 - 2011VolkswagenPassat CC
2006 - 2007VolkswagenPassat
2006 - 2012SeatLeon
