Raybestos

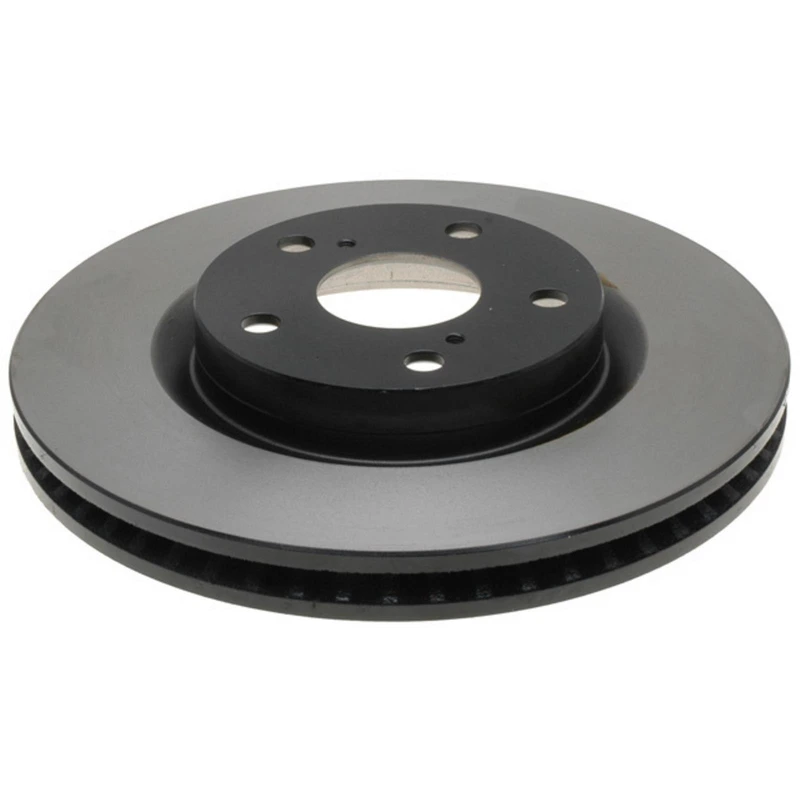

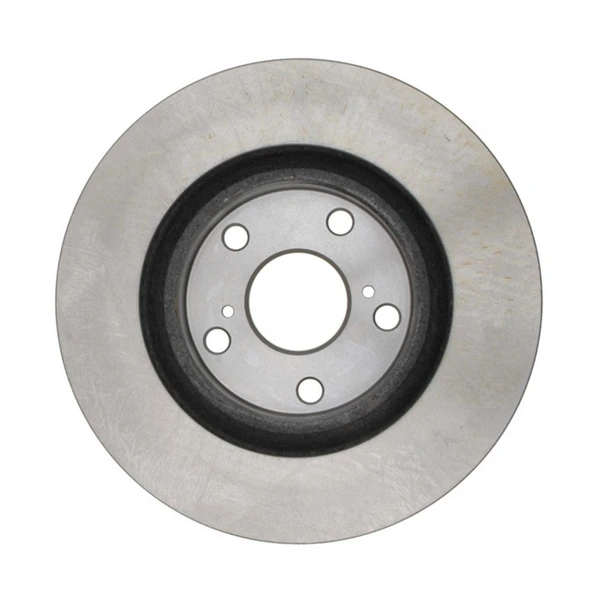

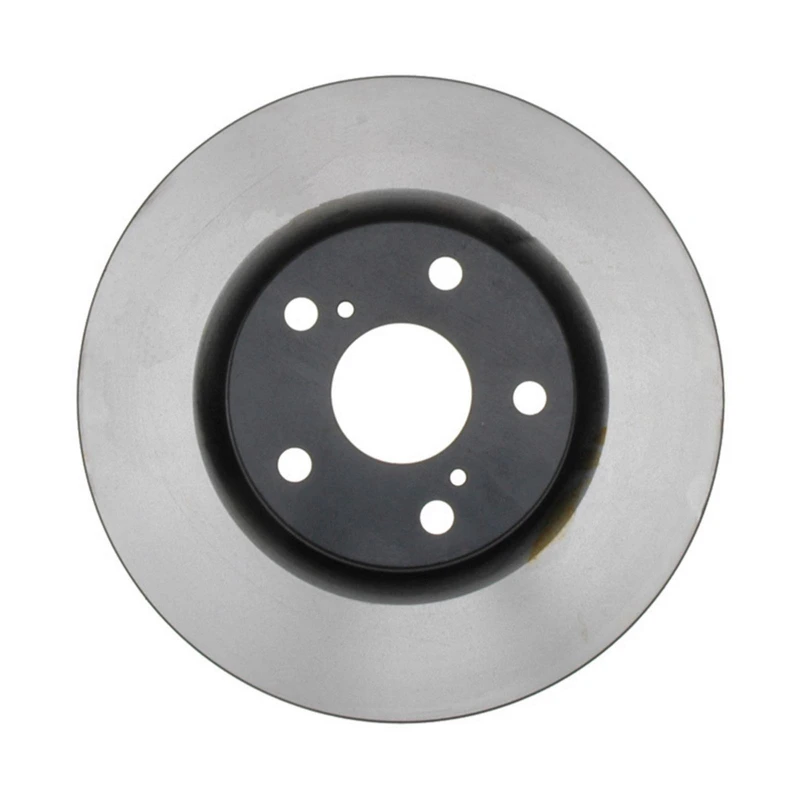

Raybestos 980470 Brake Rotor Front Side

Part # 980470
Item # 1000VNU5
$82.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Bearings Included
No
Center Hole Diameter (in)
2.441
Center Hole Diameter (mm)
62
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.984
Discard Thickness (mm)
25
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.566
Mounting Bolt Hole Diameter (mm)
14.4
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.101
Nominal Thickness (mm)
27.95
Outside Diameter (in)
11.65
Outside Diameter (mm)
295.9
Overall Height (in)
1.94
Overall Height (mm)
49.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31434 - NEWTEK AUTOMOTIVE USA, WAGNER BRAKE, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
44582 - DURALAST, CANADIAN TIRE, AUTOZONE, AIMCO, QUALIS
4351242050, 43512-42050 - GENERAL MOTORS, OEM PART NUMBER, TOYOTA, SCION
4351206090, 43512-06090 - LEXUS, GENERAL MOTORS, OEM PART NUMBER, TOYOTA
4351202250, 43512-02250 - LEXUS, OEM PART NUMBER, TOYOTA, SCION
BD126407 - MONROE BRAKES, WAGNER BRAKE, ADVANCE AUTO PARTS
2031434, 20-31434 - UAP, PROMAX, GEOTECH
12044146, 120.44146 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
4351233130, 43512-33130 - LEXUS, OEM PART NUMBER, TOYOTA
12644146SL, 126.44146SL - STOPTECH, CENTRIC PARTS
AX900340 - AUTO EXTRA, AUTOXTRA
BR31434 - DURAGO, DURA CORP
22744146R, 227.44146R - STOPTECH, CENTRIC PARTS
12644146SR, 126.44146SR - STOPTECH, CENTRIC PARTS
22744146L, 227.44146L - STOPTECH, CENTRIC PARTS
12844146L, 128.44146L - STOPTECH, CENTRIC PARTS
980470, 980-470 - RAYBESTOS BRAKES, BRAKEBEST
12844146R, 128.44146R - STOPTECH, CENTRIC PARTS
50011459 - BOSCH, BRAKEBEST
12644146CSL, 126.44146CSL - STOPTECH, CENTRIC PARTS
900340 - DURAGO, PARTS MASTER
YH145713P - CARQUEST, ADVANCE AUTO PARTS
12044146CRY, 120.44146CRY - STOPTECH, CENTRIC PARTS
12744146CL, 127.44146CL - STOPTECH, CENTRIC PARTS
44582DL - DURALAST, AUTOZONE
6621436 - WINHERE, PERFECT STOP
12744146CR, 127.44146CR - STOPTECH, CENTRIC PARTS
YH145713C - CARQUEST, ADVANCE AUTO PARTS
50011486 - BOSCH, BRAKEBEST
19205637 - GENERAL MOTORS, PONTIAC

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (28)vehicles
All
Lexus
Pontiac
Scion
Toyota
2006 - 2008ToyotaRAV4
2017 - 2017ToyotaRAV4
2011 - 2016SciontC
2018 - 2018ToyotaRAV4
2017 - 2018ToyotaCorolla iM
2016 - 2017ToyotaRAV4
2018 - 2018ToyotaRAV4
2013 - 2014ToyotaRAV4
2017 - 2017ToyotaRAV4
2009 - 2010PontiacVibe
2008 - 2011ToyotaAvalon
2016 - 2016ScioniM
2015 - 2018ToyotaRAV4
2017 - 2018ToyotaRAV4
2016 - 2018ToyotaRAV4
2009 - 2012ToyotaRAV4
2007 - 2010LexusES350
2007 - 2011ToyotaCamry
2015 - 2018ToyotaRAV4
2018 - 2018ToyotaRAV4
