Raybestos

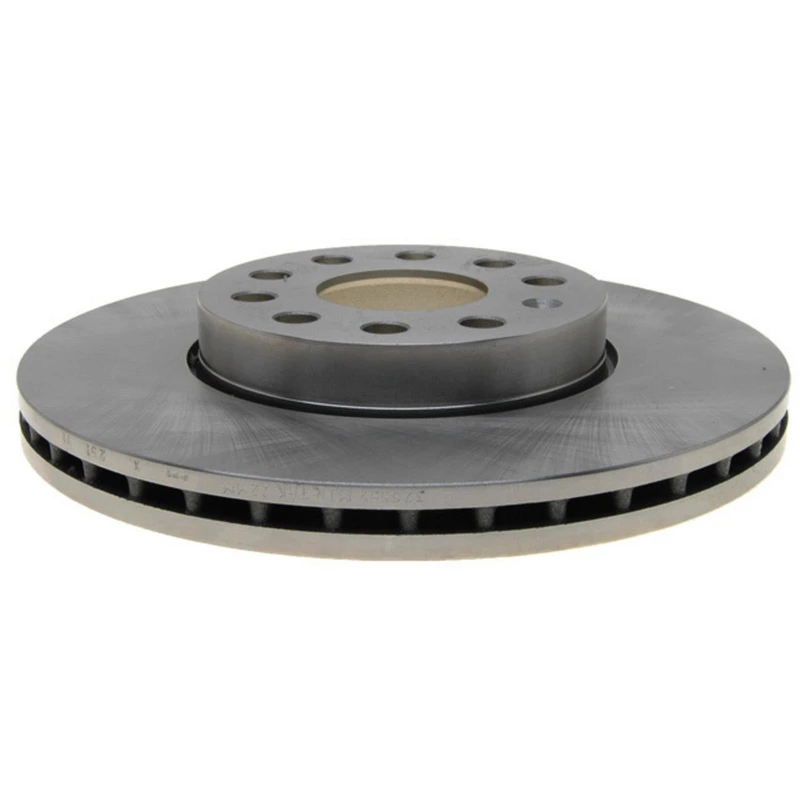

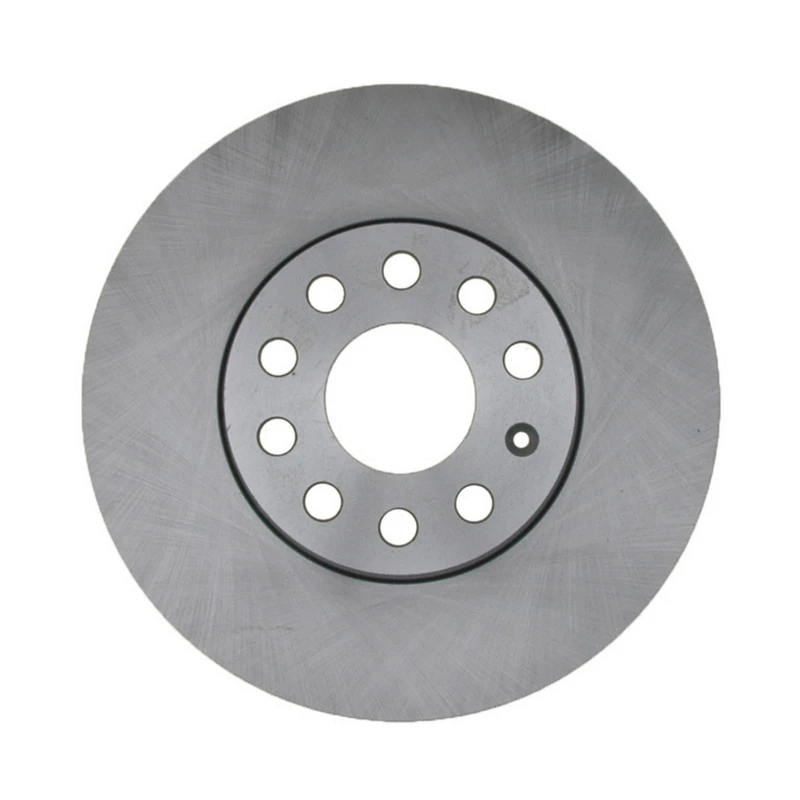

Raybestos 980456R Brake Rotor Front Side

Part # 980456R
Item # 1000XL91
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Construction
Full Cast
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Grade Type
Regular
Harmonize Code
8708.30.5030
Inside Diameter (in)
6.35
Inside Diameter (mm)
161.3
Misc. Holes
5
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.605
Mounting Bolt Hole Diameter (mm)
15.35
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.98
Nominal Thickness (mm)
24.9
Outside Diameter (in)
11.335
Outside Diameter (mm)
287.9
Overall Height (in)
1.945
Overall Height (mm)
49.4
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
Surface Type
Smooth
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
980456R
09.9145.11
120.33110
121.33110
125.33110
125.33110CRY
126.33110CSL
126.33110CSR
126.33110SL
126.33110SR
127.33110CL
127.33110CR
127.33110L
127.33110R
128.33110CL
128.33110CR
128.33110L
128.33110R
14-34303
1407-75717
145682
16D615301A
1K0615301K
1K0615301T
1KD615301
20-34303
227.33110L
227.33110R
320.33110
320.33110F

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (54)vehicles
All
Audi
Volkswagen
2009 - 2013AudiA3
2009 - 2013AudiA3 Quattro
2015 - 2016AudiA3
2005 - 2006VolkswagenJetta
2006 - 2009VolkswagenRabbit
2006 - 2010VolkswagenBora
2007 - 2007VolkswagenJetta
2008 - 2009VolkswagenJetta
2009 - 2009VolkswagenJetta
2009 - 2013VolkswagenEos
2010 - 2010VolkswagenJetta
2010 - 2011VolkswagenGolf
2011 - 2011VolkswagenJetta
2012 - 2012VolkswagenGolf
2012 - 2012VolkswagenGolf
2012 - 2012VolkswagenJetta
2012 - 2012VolkswagenJetta
2012 - 2012VolkswagenJetta
2012 - 2012VolkswagenJetta
2012 - 2012VolkswagenJetta
