Raybestos

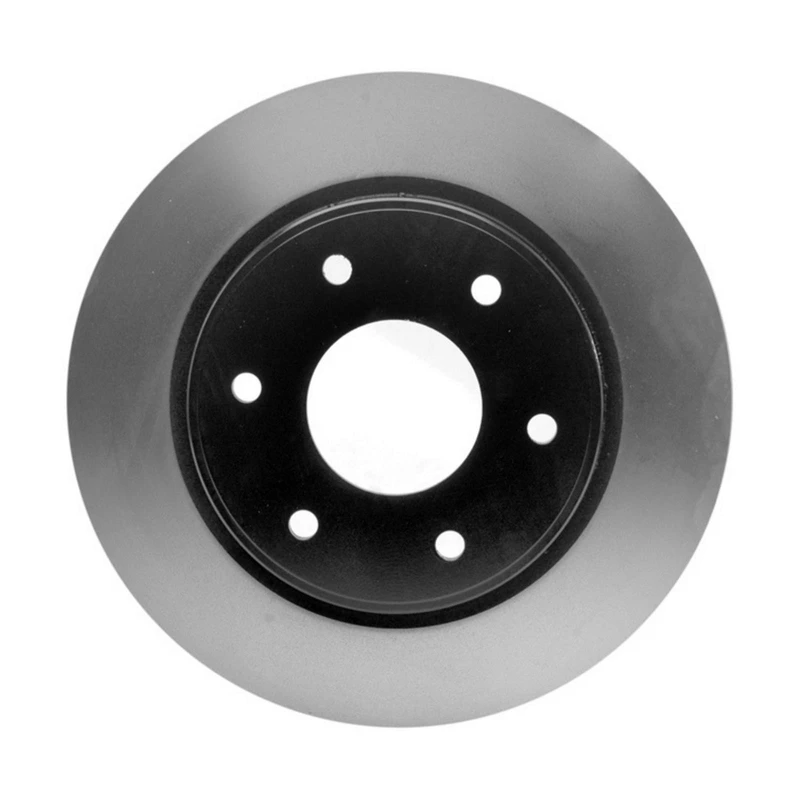

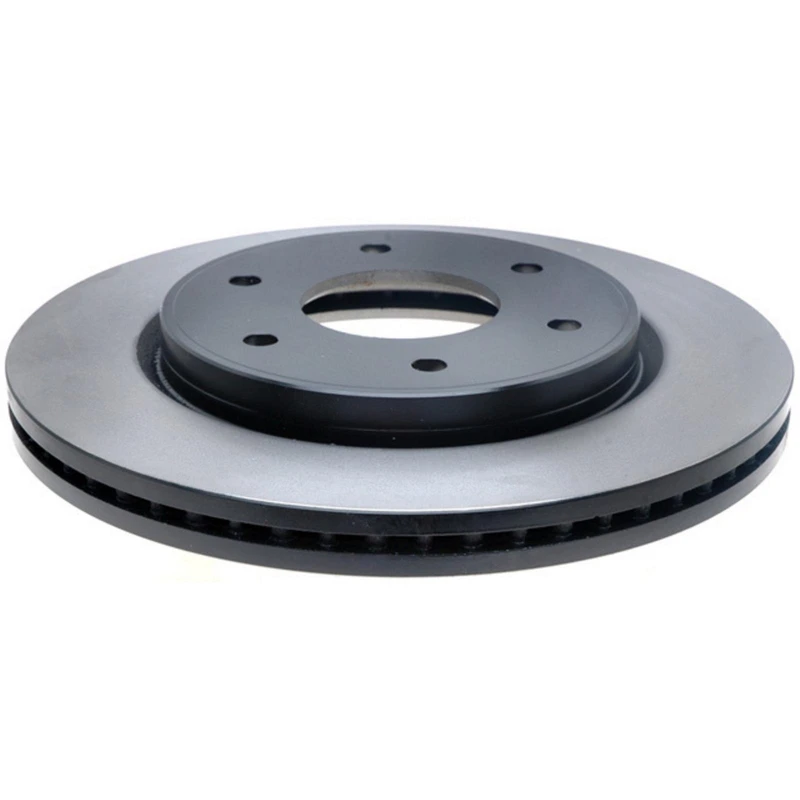

Raybestos 980424 Brake Rotor Front Side

Part # 980424
Item # 1000VS18
$106.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.232
Center Hole Diameter (mm)
82.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.965
Discard Thickness (mm)
24.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.654
Mounting Bolt Hole Diameter (mm)
16.6
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
12.597
Outside Diameter (mm)
319.95
Overall Height (in)
1.7
Overall Height (mm)
43.2
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31425, 3-1425 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, FEBIBILSTEIN
40206ZC00B, 40206-ZC00B - INFINITI, OEM PART NUMBER, NISSAN
44573 - CANADIAN TIRE, AUTOZONE, QUALIS
12742090R, 127.42090R - STOPTECH, CENTRIC PARTS
980424R - RAYBESTOS BRAKES, BRAKEBEST
40011101 - BOSCH, BRAKEBEST
12742090L, 127.42090L - STOPTECH, CENTRIC PARTS
980424 - RAYBESTOS BRAKES, BRAKEBEST
12642090CSR, 126.42090CSR - STOPTECH, CENTRIC PARTS
12642090SL, 126.42090SL - STOPTECH, CENTRIC PARTS
12642090CSL, 126.42090CSL - STOPTECH, CENTRIC PARTS
PRT5735 - BENDIX PREMIUM, BENDIX
12642090SR, 126.42090SR - STOPTECH, CENTRIC PARTS
12842090CL, 128.42090CL - STOPTECH, CENTRIC PARTS
12742090CL, 127.42090CL - STOPTECH, CENTRIC PARTS
40206ZC00A, 40206-ZC00A - OEM PART NUMBER, NISSAN
12842090CR, 128.42090CR - STOPTECH, CENTRIC PARTS
12542090, 125.42090 - STOPTECH, CENTRIC PARTS
BR31425 - DURAGO, DURA CORP
BR900286 - DURAGO, DURA CORP
09B63910, 09.B639.10, 09 B639 10 - BREMBO, IMC
AX900286 - AUTO EXTRA, AUTOXTRA
22742090R, 227.42090R - STOPTECH, CENTRIC PARTS
40206ZC01A, 40206-ZC01A - OEM PART NUMBER, NISSAN
32042090, 320.42090 - STOPTECH, CENTRIC PARTS
980424FZN - RAYBESTOS BRAKES, BRAKEBEST
12042090, 120.42090 - STOPTECH, CENTRIC PARTS
12842090L, 128.42090L - STOPTECH, CENTRIC PARTS
12742090CR, 127.42090CR - STOPTECH, CENTRIC PARTS
12842090R, 128.42090R - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
INFINITI
Nissan
2005 - 2005NissanTITAN
2006 - 2006NissanArmada
2006 - 2006NissanTITAN
2005 - 2005NissanArmada
2007 - 2007NissanTITAN
2006 - 2006INFINITIQX56
2005 - 2005INFINITIQX56
