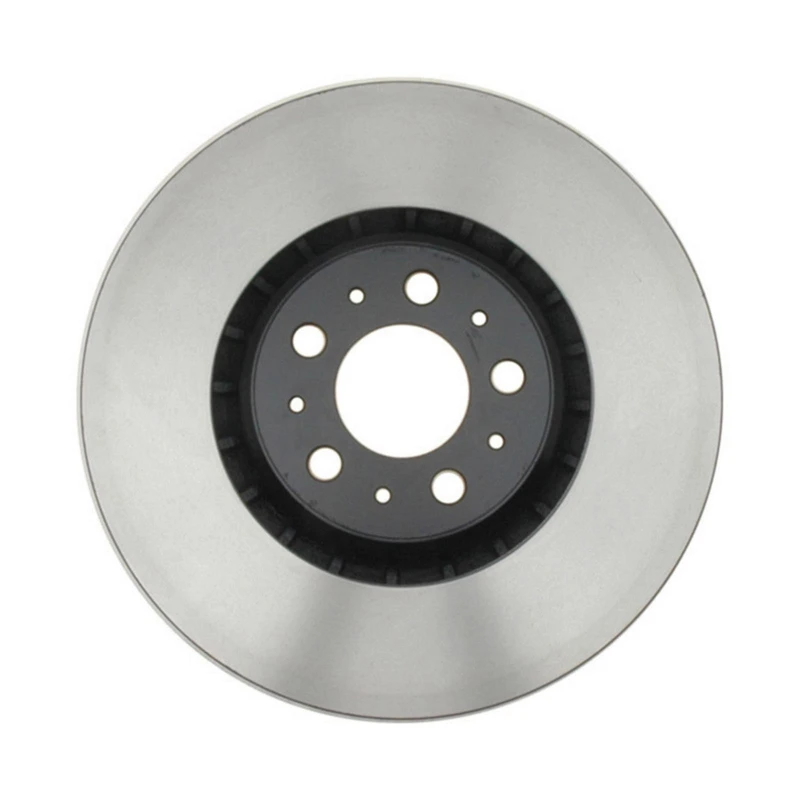

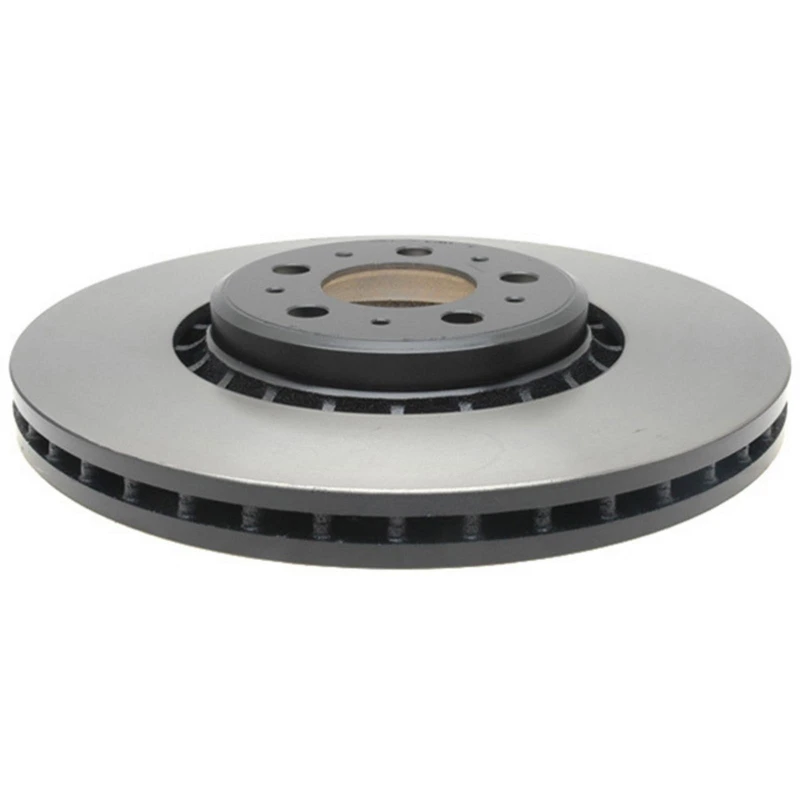

Raybestos 980412 Brake Rotor Front Side
Part # 980412
Item # 1000VKVX
$134.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.68
- Center Hole Diameter (mm)
- 68.05
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.063
- Discard Thickness (mm)
- 27
- Harmonize Code
- 8708.30.5030
- Inside Diameter (in)
- 7.953
- Inside Diameter (mm)
- 202
- Mounting Bolt Hole Circle Diameter (in)
- 4.25
- Mounting Bolt Hole Circle Diameter (mm)
- 107.95
- Mounting Bolt Hole Diameter (in)
- 0.645
- Mounting Bolt Hole Diameter (mm)
- 16.4
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.181
- Nominal Thickness (mm)
- 30
- Outside Diameter (in)
- 11.339
- Outside Diameter (mm)
- 288
- Overall Height (in)
- 2.01
- Overall Height (mm)
- 51.05
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
30657301 - VOLVO WHITE, OEM PART NUMBER, VOLVO, IMC
306573010, 30657301-0 - VOLVO WHITE, OEM PART NUMBER, VOLKSWAGEN, VOLVO
34357 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO
355110592 - PAGID RACING, HELLA PAGID
980412R - RAYBESTOS BRAKES, BRAKEBEST
AX900742 - AUTO EXTRA, AUTOXTRA
12839034L, 128.39034L - STOPTECH, CENTRIC PARTS
12839034R, 128.39034R - STOPTECH, CENTRIC PARTS
12839034CR, 128.39034CR - STOPTECH, CENTRIC PARTS
12739034CR, 127.39034CR - STOPTECH, CENTRIC PARTS
52011372 - BOSCH, BRAKEBEST
980412FZN - RAYBESTOS BRAKES, BRAKEBEST
12539034, 125.39034 - STOPTECH, CENTRIC PARTS
900742 - DURAGO, PARTS MASTER
12639034SL, 126.39034SL - STOPTECH, CENTRIC PARTS
BR900742 - DURAGO, DURA CORP
BR34357 - DURAGO, DURA CORP
980412 - RAYBESTOS BRAKES, BRAKEBEST
12139034, 121.39034 - CENTRIC PARTS, CTEK
12639034CSR, 126.39034CSR - STOPTECH, CENTRIC PARTS
12839034CL, 128.39034CL - STOPTECH, CENTRIC PARTS
34730 - DURALAST, AUTOZONE
12739034CL, 127.39034CL - STOPTECH, CENTRIC PARTS
12739034R, 127.39034R - STOPTECH, CENTRIC PARTS
52011387 - BOSCH, BRAKEBEST
YH200354 - CARQUEST, ADVANCE AUTO PARTS
12639034CSL, 126.39034CSL - STOPTECH, CENTRIC PARTS
12739034L, 127.39034L - STOPTECH, CENTRIC PARTS
32039034, 320.39034 - STOPTECH, CENTRIC PARTS
12639034SR, 126.39034SR - STOPTECH, CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Volvo
| 2003 - 2014 | Volvo | XC90 |
