Raybestos

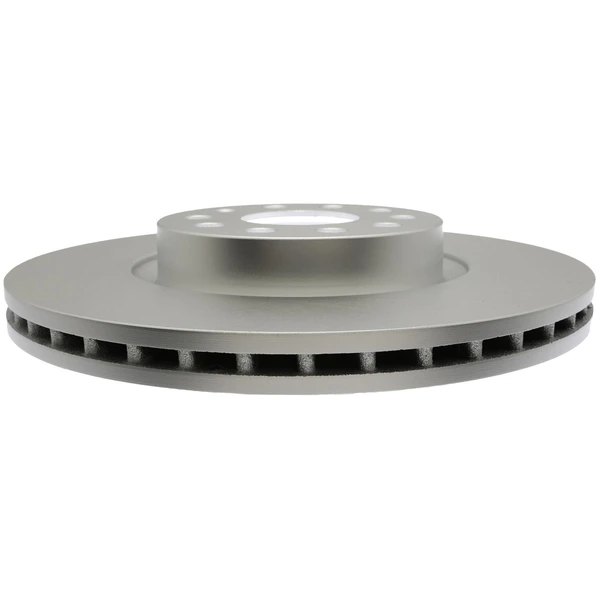

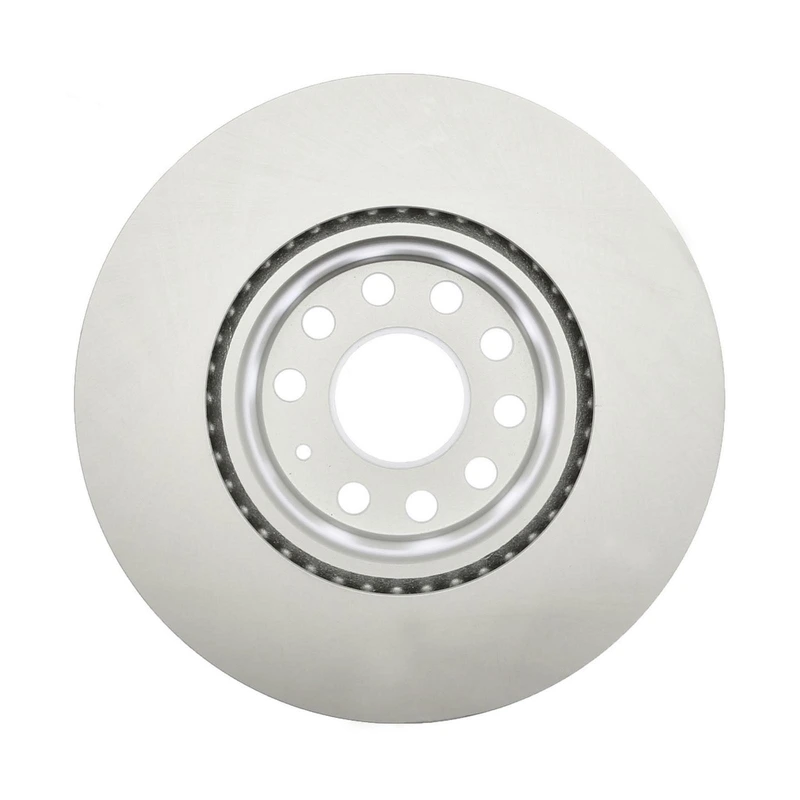

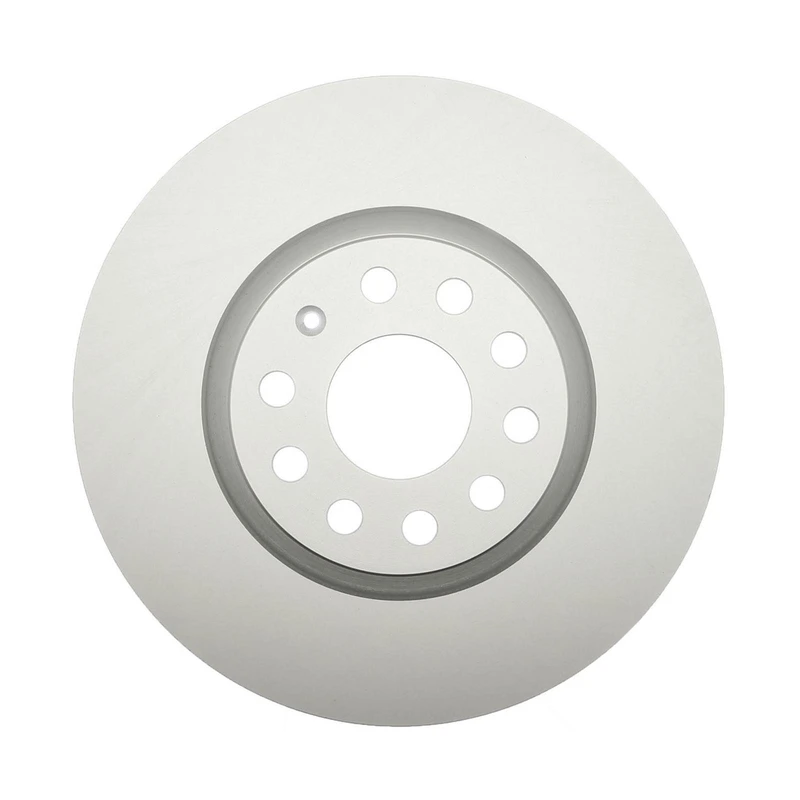

Raybestos 980383 Brake Rotor Front Side

Part # 980383
Item # 1000VKZ3
$89.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.597
Mounting Bolt Hole Diameter (mm)
15.15
Mounting Bolt Hole Quantity
9
Nominal Thickness (in)
0.984
Nominal Thickness (mm)
25
Outside Diameter (in)
12.283
Outside Diameter (mm)
312
Overall Height (in)
1.96
Overall Height (mm)
49.8
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
9
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
561615301B, 561 615 301 B - SKODA, SEAT, OEM PART NUMBER, CASTING NUMBERS, AUDI, VOLKSWAGEN
45112 - DURALAST, CANADIAN TIRE, AUTOZONE, AIMCO, QUALIS
5C0615301B, 5C0 615 301 B - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
561615301, 561 615 301 - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
5C0615301E, 5C0 615 301 E - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
1K0615301AA, 1K0 615 301 AA - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
5Q0615301F, 5Q0 615 301 F - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
34279 - NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
3CD615301, 3CD 615 301 - SKODA, AUDI, VOLKSWAGEN
25665, 2-5665 - BREMBO, AUTOPAR, IMC
561615301A, 561 615 301 A - OEM PART NUMBER, AUDI, VOLKSWAGEN
5QM615301A, 5QM 615 301A - OEM PART NUMBER, AUDI, VOLKSWAGEN
PRT5639 - BENDIX PREMIUM, BENDIX, BILSTEIN
2034279, 20-34279 - UAP, PROMAX, GEOTECH
12533098, 125.33098 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
AX900468 - AUTO EXTRA, AUTOXTRA
12733098L, 127.33098L - STOPTECH, CENTRIC PARTS
12533098CRY, 125.33098CRY - STOPTECH, CENTRIC PARTS
12733098R, 127.33098R - STOPTECH, CENTRIC PARTS
980383R - RAYBESTOS BRAKES, BRAKEBEST
900468 - DURAGO, PARTS MASTER
980383FZN - RAYBESTOS BRAKES, BRAKEBEST
YH145639 - CARQUEST, ADVANCE AUTO PARTS
12633098CSR, 126.33098CSR - STOPTECH, CENTRIC PARTS
12133098, 121.33098 - CENTRIC PARTS, CTEK
BD126476 - MONROE BRAKES, WAGNER BRAKE
12633098CSL, 126.33098CSL - STOPTECH, CENTRIC PARTS
980383 - RAYBESTOS BRAKES, BRAKEBEST
12633098SR, 126.33098SR - STOPTECH, CENTRIC PARTS
DF4295S - TRW STEERING AND SUSPENSION PARTS, TRW

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (70)vehicles
All
Audi
Volkswagen
2012 - 2013AudiTT Quattro
2012 - 2012VolkswagenJetta
2017 - 2020AudiA3
2006 - 2008AudiA3
2006 - 2008AudiA3 Quattro
2009 - 2009VolkswagenJetta
2009 - 2017VolkswagenTiguan
2010 - 2011AudiTT Quattro
2014 - 2015VolkswagenJetta
2006 - 2012VolkswagenGTI
2021 - 2023VolkswagenTaos
2009 - 2009VolkswagenJetta
2009 - 2010VolkswagenPassat
2008 - 2008VolkswagenJetta
2007 - 2007VolkswagenJetta
2015 - 2018AudiQ3
2009 - 2017VolkswagenCC
2008 - 2008VolkswagenPassat
2009 - 2013AudiA3 Quattro
2011 - 2011VolkswagenJetta
