Raybestos

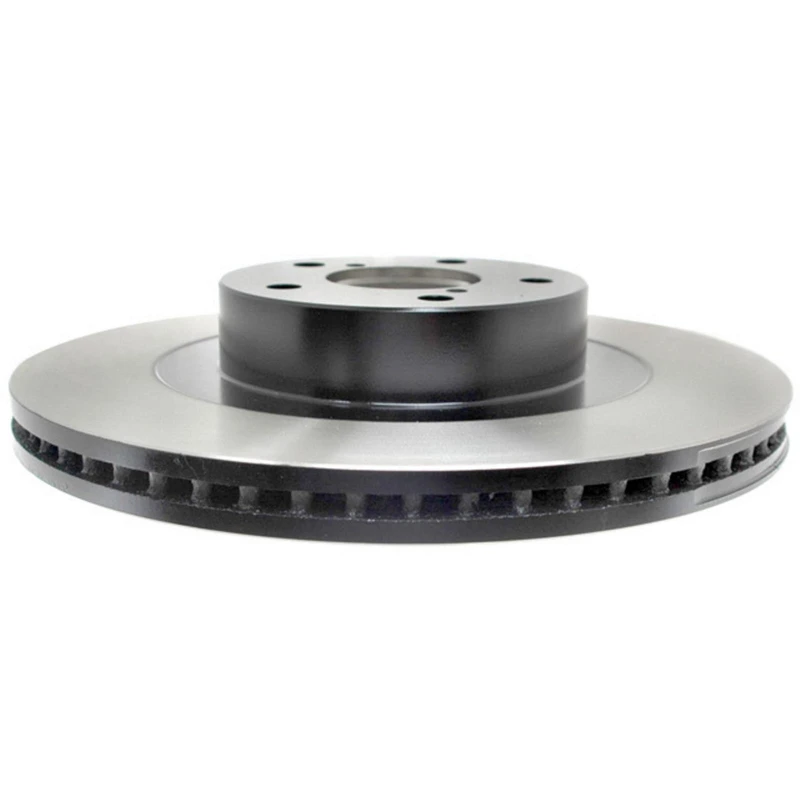

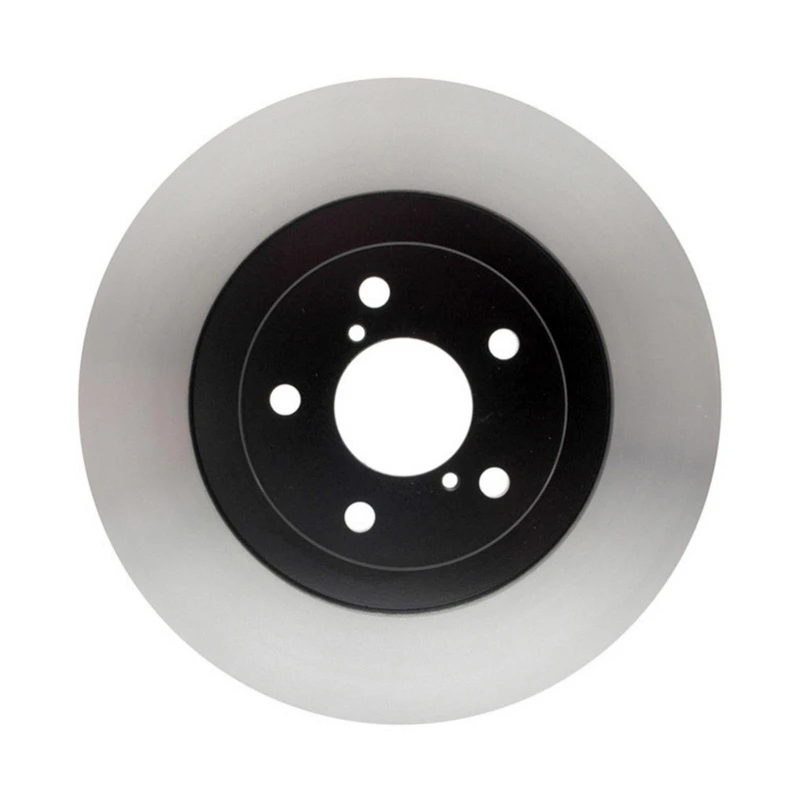

Raybestos 980360 Brake Rotor Front Side

Part # 980360
Item # 1000VE8E
$74.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.283
Center Hole Diameter (mm)
58
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.945
Nominal Thickness (mm)
24
Outside Diameter (in)
11.551
Outside Diameter (mm)
293.4
Overall Height (in)
2.23
Overall Height (mm)
56.65
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31407, 31-407 - DURALAST, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM
44306 - CANADIAN TIRE, AUTOZONE, QUALIS
26300SA001, 26300-SA001 - OEM PART NUMBER, SCION, SUBARU
26300SA000, 26300-SA000 - OEM PART NUMBER, SCION, SUBARU
12047021, 120.47021 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
2031407, 20-31407 - UAP, PROMAX, GEOTECH
BR90049602, BR900496-02 - DURAGO, DURA CORP
12647021CSL, 126.47021CSL - STOPTECH, CENTRIC PARTS
12647021CSR, 126.47021CSR - STOPTECH, CENTRIC PARTS
48011475 - BOSCH, BRAKEBEST
YH145657P - CARQUEST, ADVANCE AUTO PARTS
12747021L, 127.47021L - STOPTECH, CENTRIC PARTS
12747021R, 127.47021R - STOPTECH, CENTRIC PARTS
YH145657C - CARQUEST, ADVANCE AUTO PARTS
980360FZN - RAYBESTOS BRAKES, BRAKEBEST
980360PER - RAYBESTOS BRAKES, BRAKEBEST
12747021CR, 127.47021CR - STOPTECH, CENTRIC PARTS
44306DL - DURALAST, AUTOZONE
145657 - US AUTO FORCE, BENDIX
6620624 - WINHERE, PERFECT STOP
980360R - RAYBESTOS BRAKES, BRAKEBEST
BR900496 - DURAGO, DURA CORP
26300AG01A, 26300-AG01A - OEM PART NUMBER, SUBARU
32047021, 320.47021 - STOPTECH, CENTRIC PARTS
12647021SR, 126.47021SR - STOPTECH, CENTRIC PARTS
22747021R, 227.47021R - STOPTECH, CENTRIC PARTS
12847021CL, 128.47021CL - STOPTECH, CENTRIC PARTS
12647021SL, 126.47021SL - STOPTECH, CENTRIC PARTS
12747021CL, 127.47021CL - STOPTECH, CENTRIC PARTS
BD126192 - MONROE BRAKES, WAGNER BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (42)vehicles
All
Subaru
2017 - 2020SubaruBRZ
2017 - 2017SubaruForester
2008 - 2008SubaruLegacy
2013 - 2013SubaruWRX
2015 - 2016SubaruForester
2006 - 2012SubaruLegacy
2015 - 2016SubaruForester
2006 - 2009SubaruOutback
2018 - 2018SubaruForester
2010 - 2012SubaruLegacy
2015 - 2016SubaruForester
2015 - 2016SubaruForester
2010 - 2014SubaruOutback
2005 - 2005SubaruOutback
2010 - 2012SubaruLegacy
2009 - 2014SubaruImpreza
2009 - 2010SubaruImpreza
2008 - 2014SubaruImpreza
2016 - 2017SubaruCrosstrek
2009 - 2009SubaruLegacy
