Raybestos

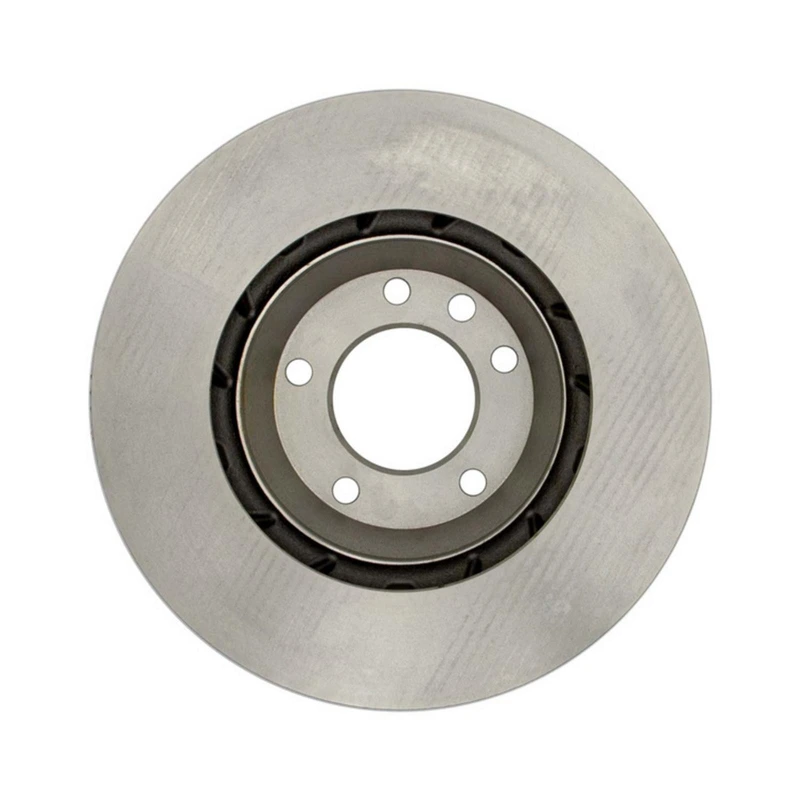

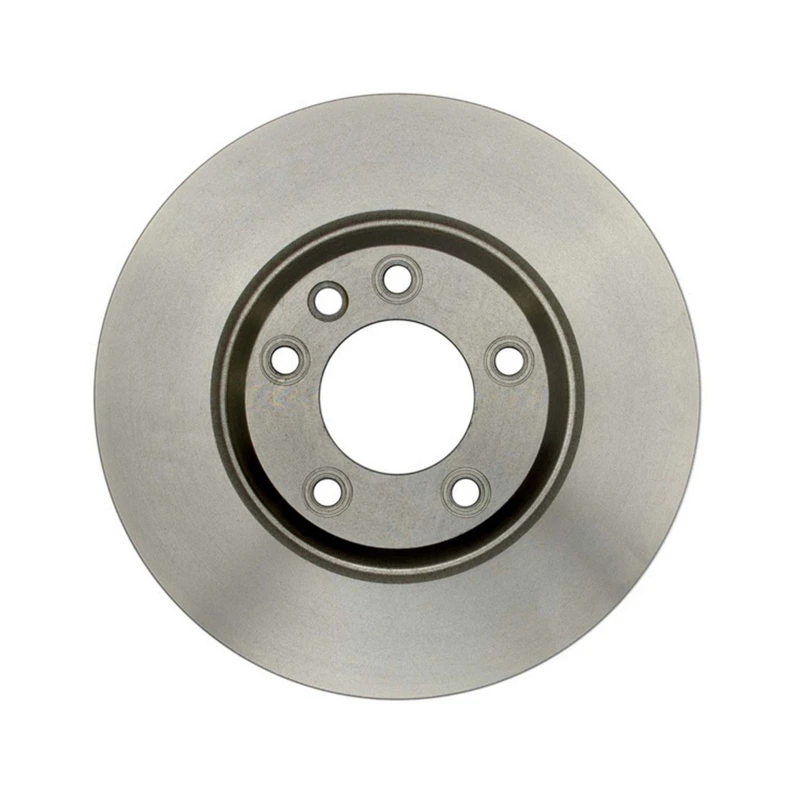

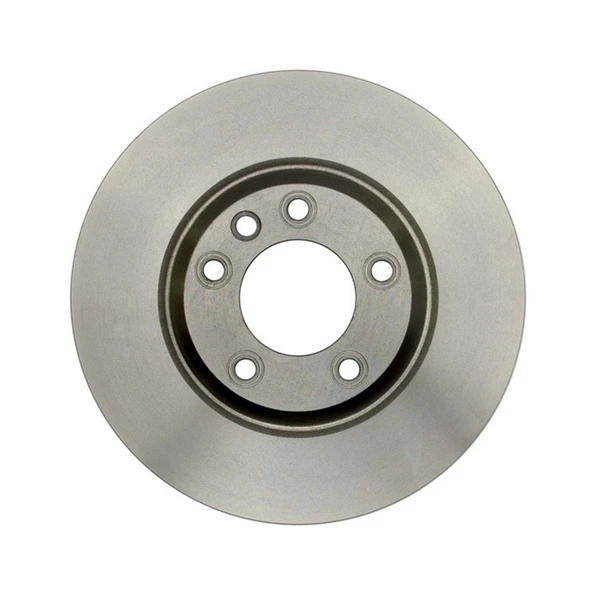

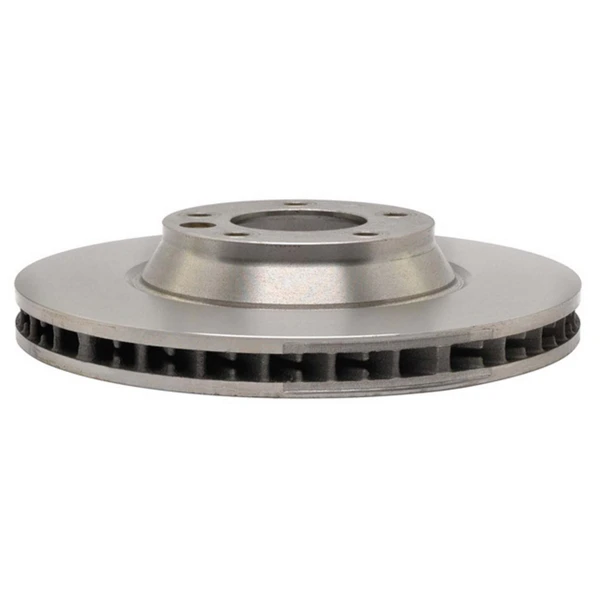

Raybestos 980310 Brake Rotor Front Right Passenger Side

Part # 980310
Item # 1000VC5U
$155.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Right Passenger Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.347
Center Hole Diameter (mm)
85
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.26
Discard Thickness (mm)
32
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.118
Mounting Bolt Hole Circle Diameter (mm)
130
Mounting Bolt Hole Diameter (in)
0.601
Mounting Bolt Hole Diameter (mm)
15.25
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.339
Nominal Thickness (mm)
34
Outside Diameter (in)
13.78
Outside Diameter (mm)
350
Overall Height (in)
2.697
Overall Height (mm)
68.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Diameter (in)
0.601
Stud/Lug Hole Diameter (mm)
15.25
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34264 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
7L6615302E, 7L6 615 302 E - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN, PORSCHE
7L6615302K, 7L6 615 302 K - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN, PORSCHE
7L8615302, 7L8 615 302 - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN, PORSCHE
95535140251, 955 351 402 51 - OEM PART NUMBER, AUDI, VOLKSWAGEN, PORSCHE
95535140250, 955 351 402 50 - OEM PART NUMBER, VOLKSWAGEN, PORSCHE
12533091, 125.33091 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12133091, 121.33091 - CANADIAN TIRE, CENTRIC PARTS, CTEK
BR900476 - DURAGO, DURA CORP
12633091CSR, 126.33091CSR - STOPTECH, CENTRIC PARTS
355109782 - PAGID RACING, HELLA PAGID
09A06311, 09.A063.11 - BREMBO, IMC
12733091R, 127.33091R - STOPTECH, CENTRIC PARTS
42011152 - BOSCH, BRAKEBEST
22733091R, 227.33091R - STOPTECH, CENTRIC PARTS
980310 - RAYBESTOS BRAKES, BRAKEBEST
BR34264 - DURAGO, DURA CORP
12533091CRY, 125.33091CRY - STOPTECH, CENTRIC PARTS
32033091, 320.33091 - STOPTECH, CENTRIC PARTS
6620207 - WINHERE, PERFECT STOP
12833091R, 128.33091R - STOPTECH, CENTRIC PARTS
12633091SR, 126.33091SR - STOPTECH, CENTRIC PARTS
34264DG - AUTOZONE
900476 - DURAGO
EBR823EVC - POWERSTOP
YH145148P - ADVANCE AUTO PARTS
SDK6412 - NAPA
145589 - BENDIX
V857R - PILENGA
1434264, 14-34264 - PROMAX

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Audi
Porsche
Volkswagen
2014 - 2015AudiQ7
2011 - 2013PorscheCayenne
2010 - 2013AudiQ7
2003 - 2006PorscheCayenne
2013 - 2013PorscheCayenne
2013 - 2013PorscheCayenne
2011 - 2013PorscheCayenne
2004 - 2010VolkswagenTouareg
2007 - 2009AudiQ7
2008 - 2010PorscheCayenne
