Raybestos

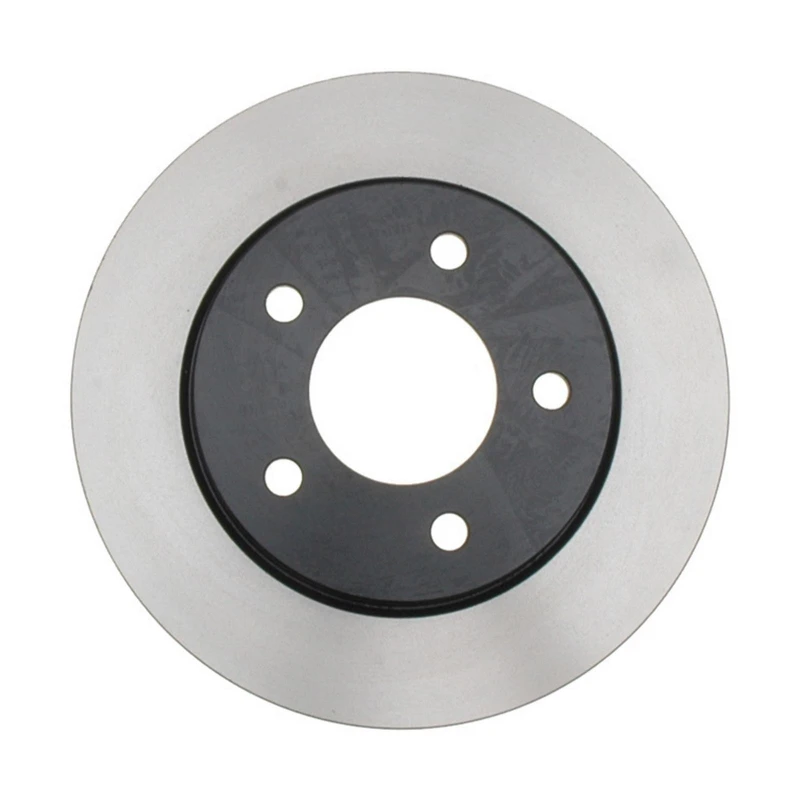

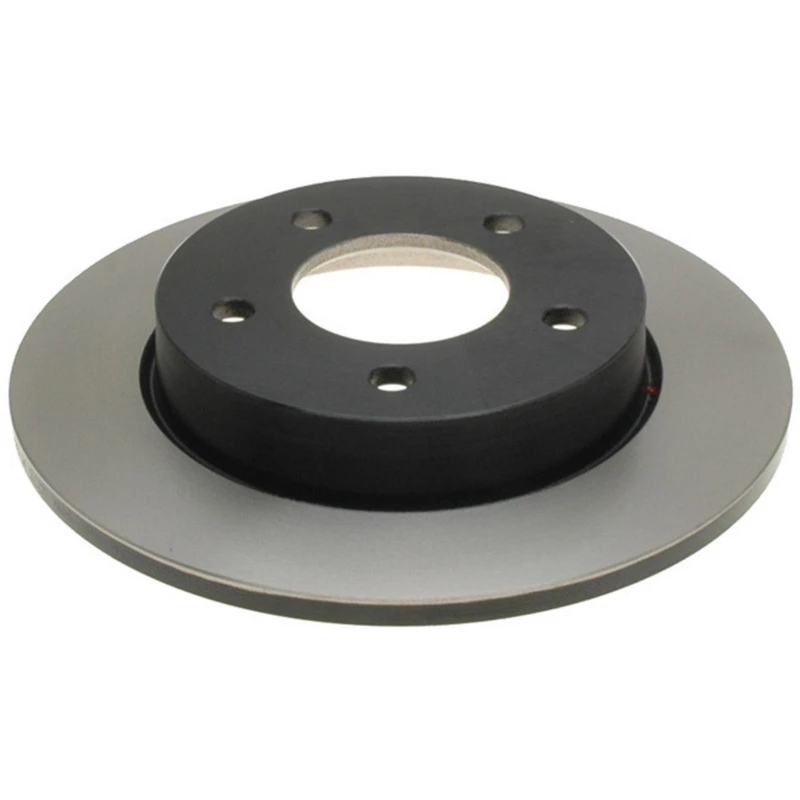

Raybestos 980285 Brake Rotor Rear Side

Part # 980285
Item # 1000VDKD
$65.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.84
Center Hole Diameter (mm)
72.15
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.354
Discard Thickness (mm)
9
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.54
Mounting Bolt Hole Diameter (mm)
13.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.43
Nominal Thickness (mm)
10.9
Outside Diameter (in)
10.43
Outside Diameter (mm)
264.9
Overall Height (in)
1.605
Overall Height (mm)
40.75
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31365, 3-1365 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
BP4Y26251D, BP4Y-26-251D - MITSUBISHI, OEM PART NUMBER, MAZDA
12045066, 120.45066 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
08A02910, 08.A029.10 - BREMBO, IMC
PRT5619 - BENDIX PREMIUM, BENDIX
32045066, 320.45066 - STOPTECH, CENTRIC PARTS
12645066CSL, 126.45066CSL - STOPTECH, CENTRIC PARTS
22745066R, 227.45066R - STOPTECH, CENTRIC PARTS
22745066L, 227.45066L - STOPTECH, CENTRIC PARTS
12645066CSR, 126.45066CSR - STOPTECH, CENTRIC PARTS
661648, 66-1648 - WINHERE, PERFECT STOP
25873 - MAPCO, BREMBO
980285FZN - RAYBESTOS BRAKES, BRAKEBEST
12745066CR, 127.45066CR - STOPTECH, CENTRIC PARTS
AX31365 - AUTO EXTRA, AUTOXTRA
12145066, 121.45066 - CENTRIC PARTS, CTEK
34010902 - BOSCH, BRAKEBEST
12745066CL, 127.45066CL - STOPTECH, CENTRIC PARTS
145619 - BENDIX, ADVANCE AUTO PARTS
12845066CL, 128.45066CL - STOPTECH, CENTRIC PARTS
YH145619P - CARQUEST, ADVANCE AUTO PARTS
12845066CR, 128.45066CR - STOPTECH, CENTRIC PARTS
12645066SR, 126.45066SR - STOPTECH, CENTRIC PARTS
12645066SL, 126.45066SL - STOPTECH, CENTRIC PARTS
BP4Y26251C, BP4Y-26-251C - OEM PART NUMBER, MAZDA
12745066R, 127.45066R - STOPTECH, CENTRIC PARTS
2031365, 20-31365 - PROMAX, GEOTECH
BP4Y26251B, BP4Y-26-251B - OEM PART NUMBER, MAZDA
YH145619C - CARQUEST, ADVANCE AUTO PARTS
12745066L, 127.45066L - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Mazda
2012 - 2012Mazda3
2010 - 2011Mazda3
2012 - 2012Mazda3
2007 - 2009Mazda3
2004 - 2005Mazda3
2010 - 2011Mazda3
2010 - 2011Mazda3
2006 - 2006Mazda3
2010 - 2012Mazda3 Sport
2011 - 2011Mazda3
2009 - 2009Mazda3 Sport
