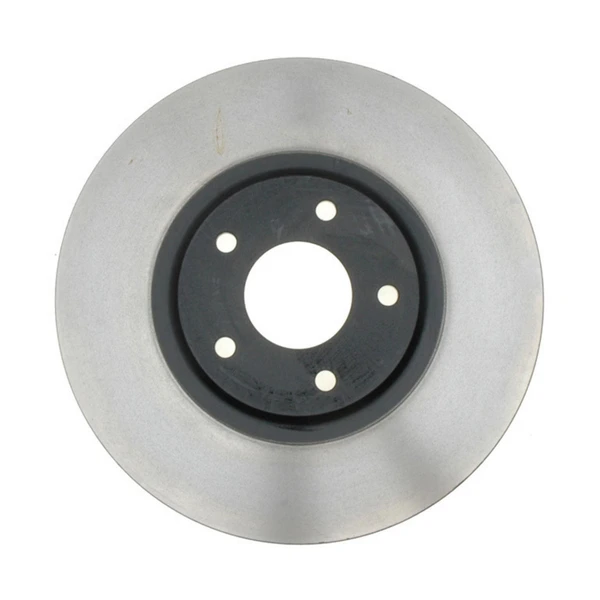

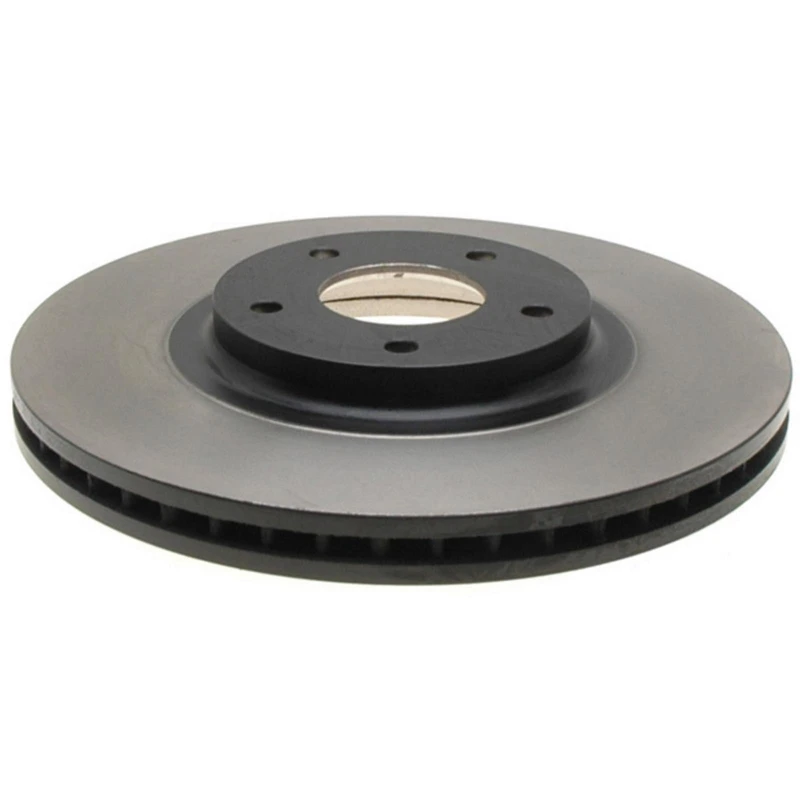

Raybestos 980225 Brake Rotor Front Side
Part # 980225
Item # 1000VHPH
$89.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.68
- Center Hole Diameter (mm)
- 68.05
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 1.024
- Discard Thickness (mm)
- 26
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.5
- Mounting Bolt Hole Circle Diameter (mm)
- 114.3
- Mounting Bolt Hole Diameter (in)
- 0.495
- Mounting Bolt Hole Diameter (mm)
- 12.55
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 1.102
- Nominal Thickness (mm)
- 28
- Outside Diameter (in)
- 12.6
- Outside Diameter (mm)
- 320.05
- Overall Height (in)
- 1.935
- Overall Height (mm)
- 49.15
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31330, 3-1330 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
402067Y000, 40206-7Y000 - INFINITI, OEM PART NUMBER, NISSAN
2031330, 20-31330 - UAP, PROMAX, GEOTECH
12142075, 121.42075 - CENTRIC PARTS, CTEK
980225FZN - RAYBESTOS BRAKES, BRAKEBEST
12642075CSL, 126.42075CSL - STOPTECH, CENTRIC PARTS
25841 - MAPCO, BREMBO
980225, 980-225 - RAYBESTOS BRAKES, BRAKEBEST
BR31330 - DURAGO, DURA CORP
12642075CSR, 126.42075CSR - STOPTECH, CENTRIC PARTS
145571, 14-5571 - BENDIX, ADVANCE AUTO PARTS
40206CA000, 40206-CA000 - OEM PART NUMBER, NISSAN
32042075, 320.42075 - STOPTECH, CENTRIC PARTS
22742075L, 227.42075L - STOPTECH, CENTRIC PARTS
12642075SL, 126.42075SL - STOPTECH, CENTRIC PARTS
6620415 - WINHERE, PERFECT STOP
12042075CRY, 120.42075CRY - STOPTECH, CENTRIC PARTS
12642075SR, 126.42075SR - STOPTECH, CENTRIC PARTS
22742075R, 227.42075R - STOPTECH, CENTRIC PARTS
980225R - RAYBESTOS BRAKES, BRAKEBEST
12842075CL, 128.42075CL - STOPTECH, CENTRIC PARTS
12742075R, 127.42075R - STOPTECH, CENTRIC PARTS
12542075CRY, 125.42075CRY - STOPTECH, CENTRIC PARTS
12842075CR, 128.42075CR - STOPTECH, CENTRIC PARTS
12542075, 125.42075 - STOPTECH, CENTRIC PARTS
12742075L, 127.42075L - STOPTECH, CENTRIC PARTS
12042075, 120.42075 - STOPTECH, CENTRIC PARTS
YH145571 - CARQUEST, ADVANCE AUTO PARTS
12842075L, 128.42075L - STOPTECH, CENTRIC PARTS
12842075R, 128.42075R - STOPTECH, CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Nissan
| 2003 - 2004 | Nissan | Murano |
| 2004 - 2004 | Nissan | Maxima |
| 2005 - 2005 | Nissan | Altima |
