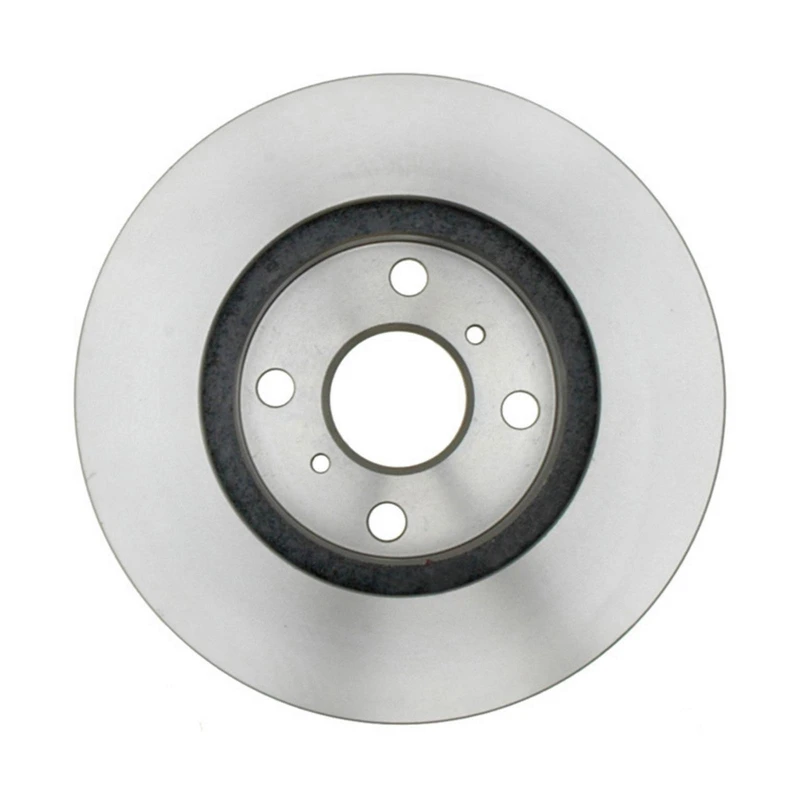

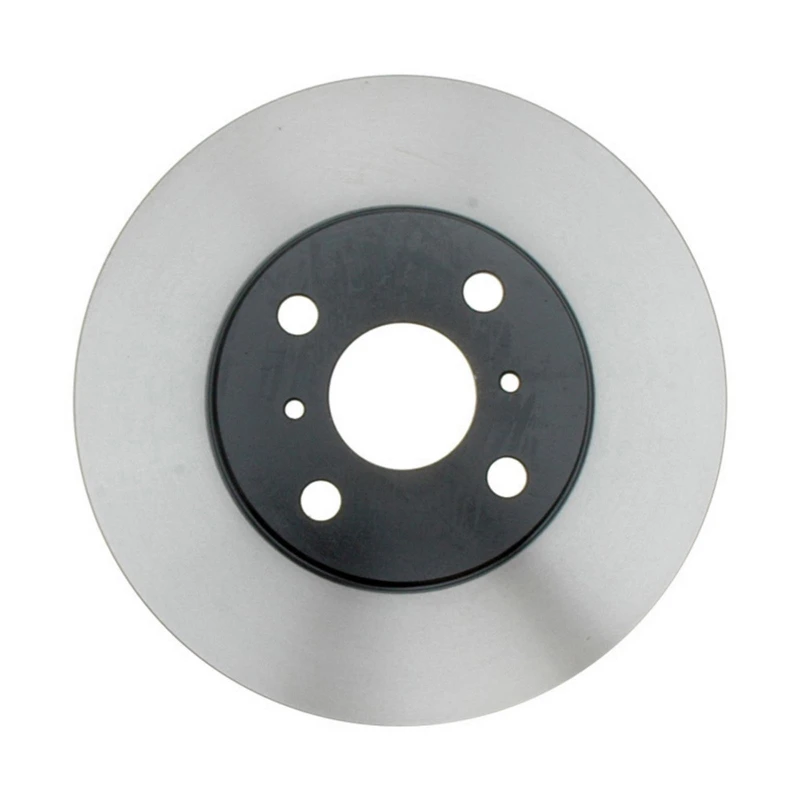

Raybestos 980201 Brake Rotor Front Side
Part # 980201
Item # 1000VCHQ
$85.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.17
- Center Hole Diameter (mm)
- 55.1
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.787
- Discard Thickness (mm)
- 20
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 3.93
- Mounting Bolt Hole Circle Diameter (mm)
- 99.8
- Mounting Bolt Hole Diameter (in)
- 0.573
- Mounting Bolt Hole Diameter (mm)
- 14.55
- Mounting Bolt Hole Quantity
- 4
- Nominal Thickness (in)
- 0.865
- Nominal Thickness (mm)
- 21.95
- Outside Diameter (in)
- 10.04
- Outside Diameter (mm)
- 255
- Overall Height (in)
- 1.695
- Overall Height (mm)
- 43.05
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 4
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31332 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
4351252080, 43512-52080, 43512 52080 - OEM PART NUMBER, TOYOTA, SCION, IMC
BR3133202, BR31332-02 - DURAGO, DURA CORP
12144133, 121.44133 - CENTRIC PARTS, CTEK
12544133CRY, 125.44133CRY - STOPTECH, CENTRIC PARTS
BR31332 - DURAGO, DURA CORP
980201 - RAYBESTOS BRAKES, BRAKEBEST
12844133CR, 128.44133CR - STOPTECH, CENTRIC PARTS
AX31332 - AUTO EXTRA, AUTOXTRA
12844133CL, 128.44133CL - STOPTECH, CENTRIC PARTS
50011272 - BOSCH, BRAKEBEST
12644133SL, 126.44133SL - STOPTECH, CENTRIC PARTS
12544133, 125.44133 - STOPTECH, CENTRIC PARTS
12744133L, 127.44133L - STOPTECH, CENTRIC PARTS
YH145476 - CARQUEST, ADVANCE AUTO PARTS
12044133, 120.44133 - STOPTECH, CENTRIC PARTS
12744133R, 127.44133R - STOPTECH, CENTRIC PARTS
12644133SR, 126.44133SR - STOPTECH, CENTRIC PARTS
32044133, 320.44133 - STOPTECH, CENTRIC PARTS
12844133L, 128.44133L - STOPTECH, CENTRIC PARTS
12644133CSL, 126.44133CSL - STOPTECH, CENTRIC PARTS
6620226 - WINHERE, PERFECT STOP
12644133CSR, 126.44133CSR - STOPTECH, CENTRIC PARTS
12844133R, 128.44133R - STOPTECH, CENTRIC PARTS
980201R - RAYBESTOS BRAKES, BRAKEBEST
BD126481E - WAGNER BRAKE
1431332, 14-31332 - PROMAX
09B46011, 09.B460.11 - BREMBO
09B46010, 09.B460.10 - BREMBO
80980201 - AUTOXTRA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Scion
| 2004 - 2006 | Scion | xB |
| 2004 - 2006 | Scion | xA |
