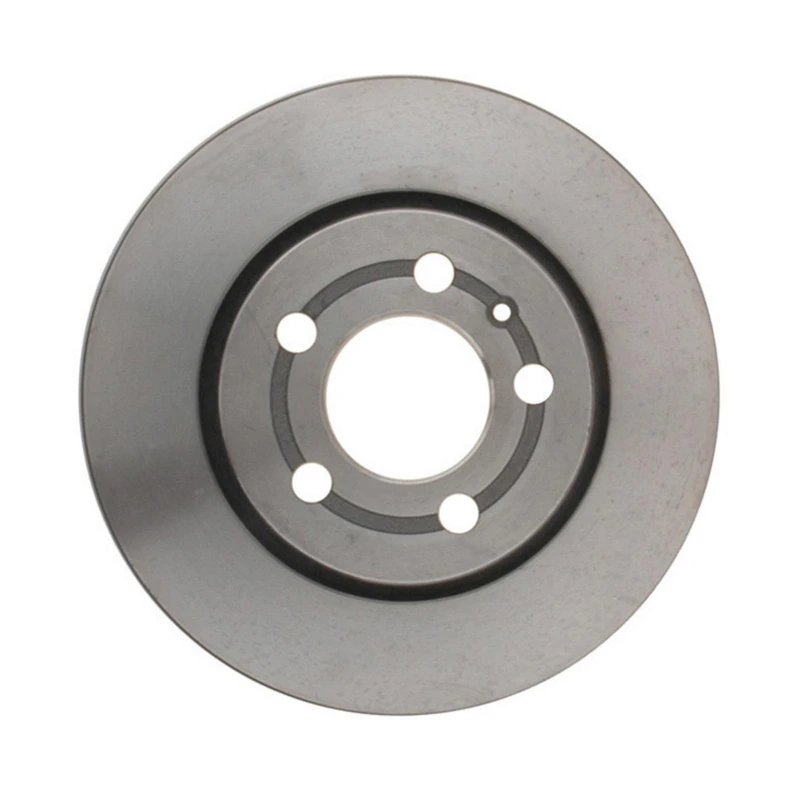

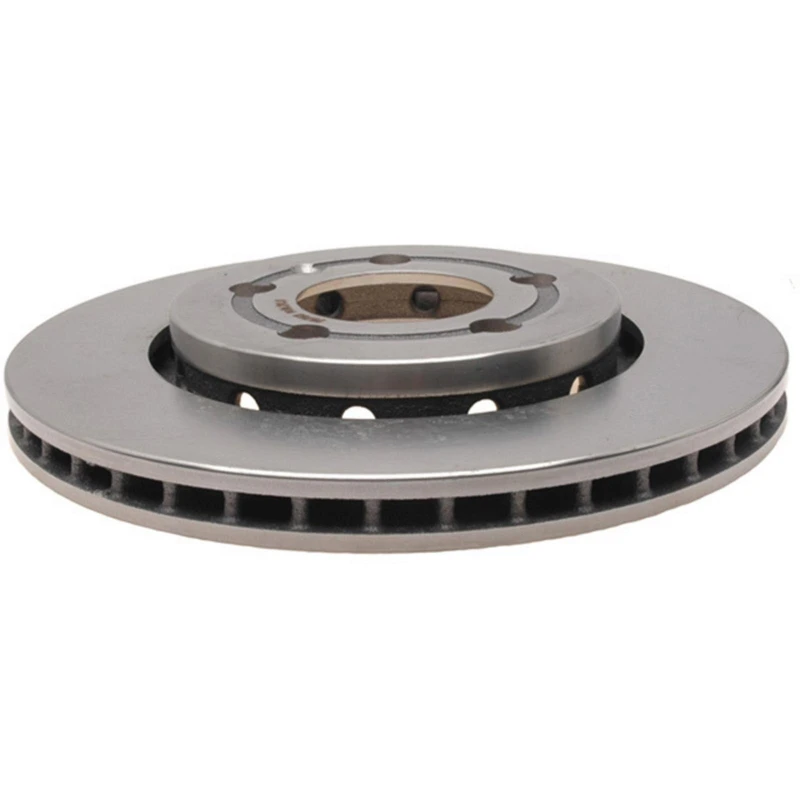

Raybestos 980131 Brake Rotor Rear Side
Part # 980131
Item # 1000VHAN
$77.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Rear Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.559
- Center Hole Diameter (mm)
- 65
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.787
- Discard Thickness (mm)
- 20
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 3.937
- Mounting Bolt Hole Circle Diameter (mm)
- 100
- Mounting Bolt Hole Diameter (in)
- 3.937
- Mounting Bolt Hole Diameter (mm)
- 100
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.862
- Nominal Thickness (mm)
- 21.9
- Outside Diameter (in)
- 10.079
- Outside Diameter (mm)
- 256
- Overall Height (in)
- 1.433
- Overall Height (mm)
- 36.4
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- Surface Type
- Smooth
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34222 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
8N0615601B, 8N0 615 601 B - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
25707 - MAPCO, BREMBO, IMC
12833069R, 128.33069R - STOPTECH, CENTRIC PARTS
14010054 - BOSCH, BRAKEBEST
12833069L, 128.33069L - STOPTECH, CENTRIC PARTS
BR34222 - DURAGO, DURA CORP
980131FZN - RAYBESTOS BRAKES, BRAKEBEST
980131 - RAYBESTOS BRAKES, BRAKEBEST
12633069SR, 126.33069SR - STOPTECH, CENTRIC PARTS
355106752 - PAGID RACING, HELLA PAGID
12633069SL, 126.33069SL - STOPTECH, CENTRIC PARTS
980131R - RAYBESTOS BRAKES, BRAKEBEST
662915 - WINHERE, PERFECT STOP
12633069CSL, 126.33069CSL - STOPTECH, CENTRIC PARTS
12733069R, 127.33069R - STOPTECH, CENTRIC PARTS
4065 - MCI, TRW
12733069CR, 127.33069CR - STOPTECH, CENTRIC PARTS
YH145418 - CARQUEST, ADVANCE AUTO PARTS
12633069CSR, 126.33069CSR - STOPTECH, CENTRIC PARTS
12733069CL, 127.33069CL - STOPTECH, CENTRIC PARTS
12533069CRY, 125.33069CRY - STOPTECH, CENTRIC PARTS
12833069CL, 128.33069CL - STOPTECH, CENTRIC PARTS
12133069, 121.33069 - CENTRIC PARTS, CTEK
12533069, 125.33069 - STOPTECH, CENTRIC PARTS
12733069L, 127.33069L - STOPTECH, CENTRIC PARTS
12833069CR, 128.33069CR - STOPTECH, CENTRIC PARTS
34222DG - AUTOZONE
SDK6259 - NAPA
V872 - PILENGA
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Audi
Volkswagen
| 2005 - 2005 | Volkswagen | Jetta |
| 2002 - 2004 | Volkswagen | Jetta |
| 2000 - 2006 | Audi | TT Quattro |
| 2003 - 2003 | Volkswagen | Golf |
| 2004 - 2004 | Volkswagen | R32 |
| 2002 - 2002 | Volkswagen | Golf |
| 2011 - 2013 | Volkswagen | Clasico |
