Raybestos

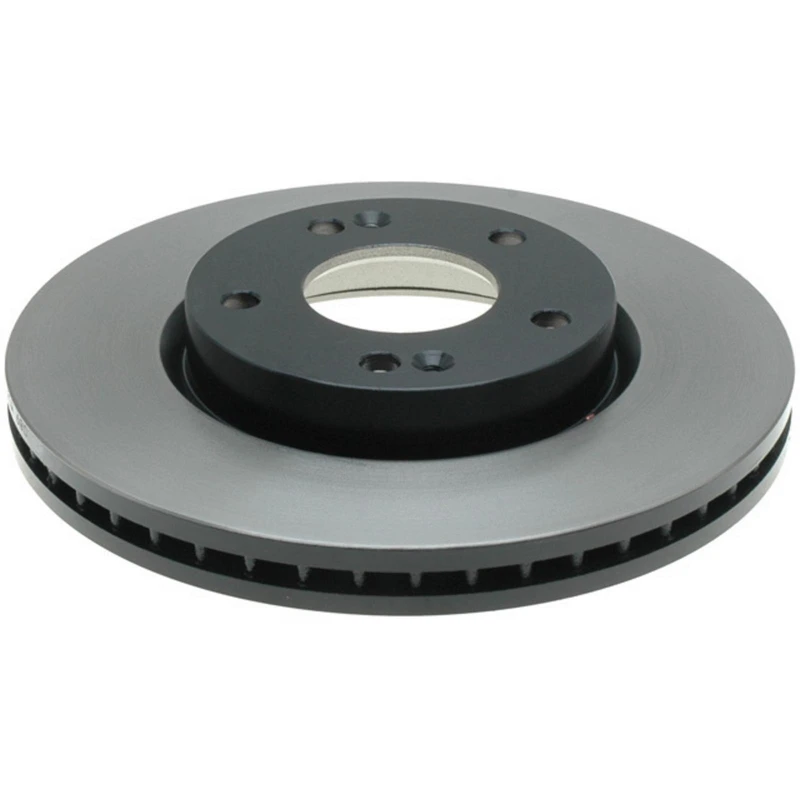

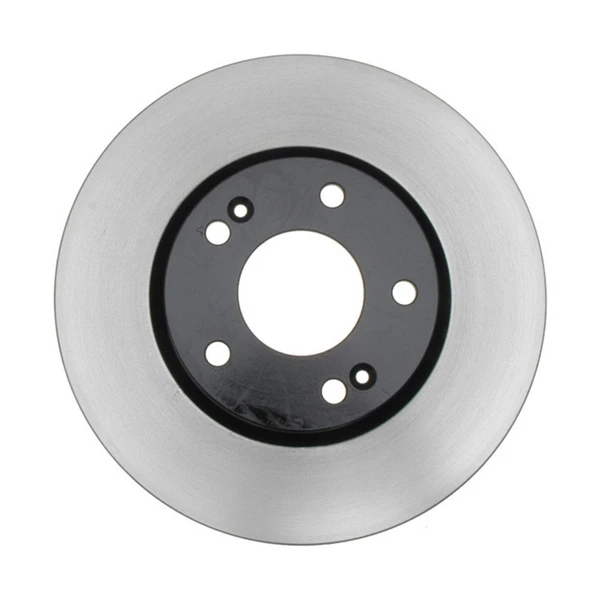

Raybestos 980089 Brake Rotor Front Side

Part # 980089
Item # 1000V620
$65.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.72
Center Hole Diameter (mm)
69.1
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.961
Discard Thickness (mm)
24.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
11.025
Outside Diameter (mm)
280.05
Overall Height (in)
1.865
Overall Height (mm)
47.35
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31337, 3-1337 - CARQUEST, DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, MOPAR
31423, 3-1423 - DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12051015, 120.51015 - STOPTECH, CANADIAN TIRE, CENTRIC PARTS, WAGNER BRAKE
517121F300, 51712-1F300 - HYUNDAI, KIA, OEM PART NUMBER
145504 - US AUTO FORCE, BENDIX, ADVANCE AUTO PARTS
BD126141 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
2031337, 20-31337 - UAP, PROMAX, GEOTECH
YH145504P - CARQUEST, ADVANCE AUTO PARTS
YH145504 - CARQUEST, ADVANCE AUTO PARTS
BR3133702, BR31337-02 - DURAGO, DURA CORP
12751015L, 127.51015L - STOPTECH, CENTRIC PARTS
12751015R, 127.51015R - STOPTECH, CENTRIC PARTS
12051015CRY, 120.51015CRY - STOPTECH, CENTRIC PARTS
980089FZN - RAYBESTOS BRAKES, BRAKEBEST
32051015, 320.51015 - STOPTECH, CENTRIC PARTS
YH145504C - CARQUEST, ADVANCE AUTO PARTS
12851015L, 128.51015L - STOPTECH, CENTRIC PARTS
12851015CR, 128.51015CR - STOPTECH, CENTRIC PARTS
BR900800 - DURAGO, DURA CORP
12651015CSL, 126.51015CSL - STOPTECH, CENTRIC PARTS
12651015SR, 126.51015SR - STOPTECH, CENTRIC PARTS
12651015CSR, 126.51015CSR - STOPTECH, CENTRIC PARTS
DF4283S - TRW STEERING AND SUSPENSION PARTS, TRW
12151015, 121.51015 - CENTRIC PARTS, CTEK
12851015R, 128.51015R - STOPTECH, CENTRIC PARTS
12851015CL, 128.51015CL - STOPTECH, CENTRIC PARTS
980089R - RAYBESTOS BRAKES, BRAKEBEST
22751015L, 227.51015L - STOPTECH, CENTRIC PARTS
BR31337 - DURAGO, DURA CORP
980089 - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Hyundai
Kia
2007 - 2008HyundaiTiburon
2007 - 2007HyundaiTiburon
2008 - 2008HyundaiTiburon
2007 - 2008HyundaiTiburon
2003 - 2006HyundaiTiburon
2005 - 2009HyundaiTucson
2005 - 2010KiaSportage
