Raybestos

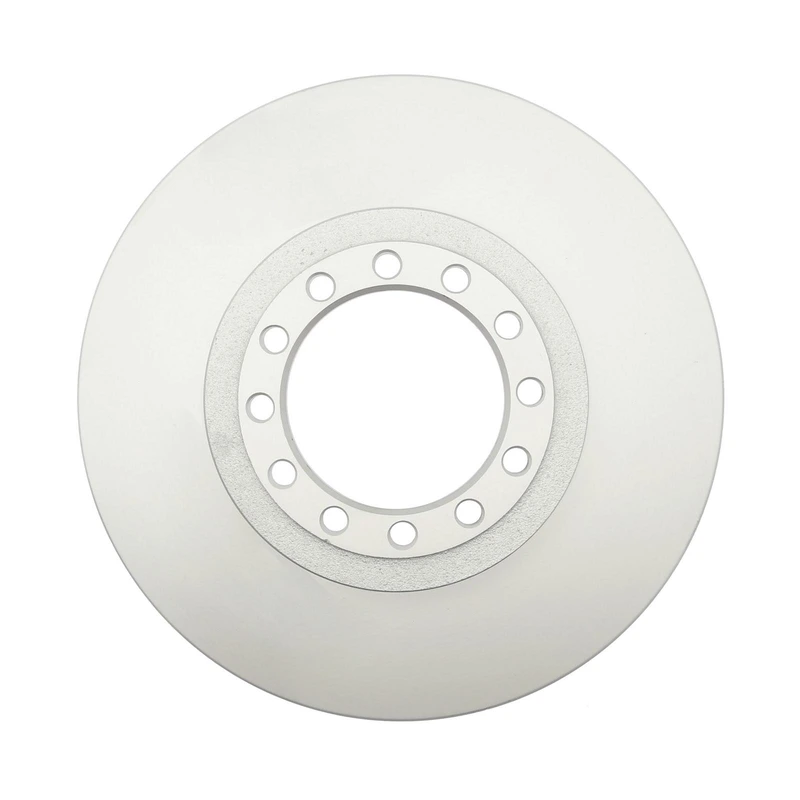

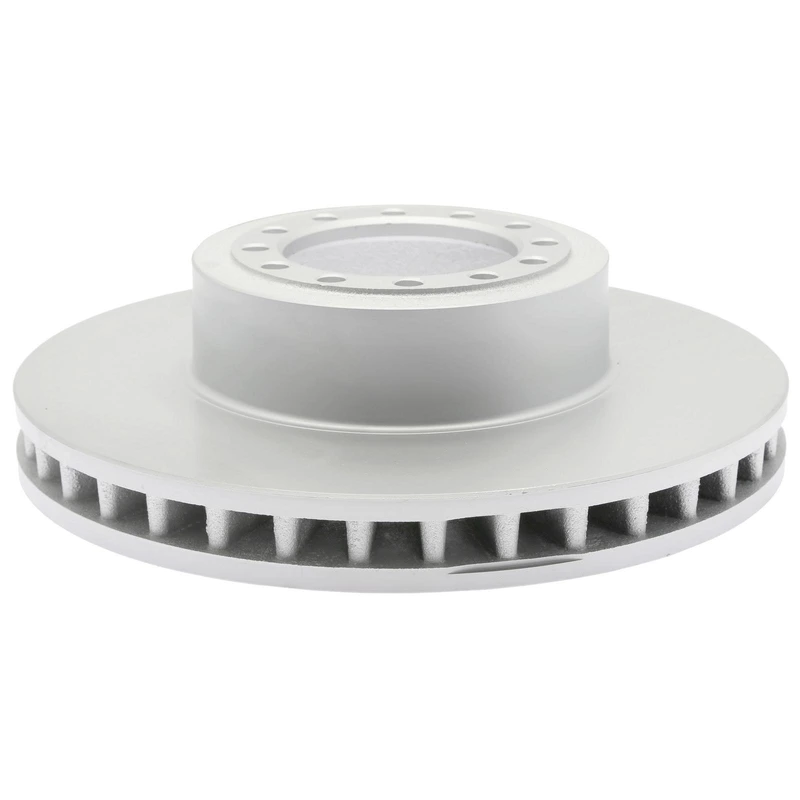

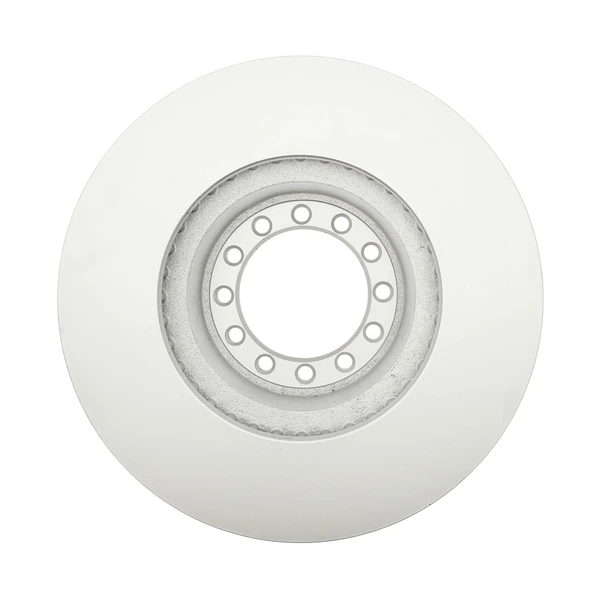

Raybestos 980066 Brake Rotor Front Side

Part # 980066
Item # 1000VA8G
$164.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.332
Center Hole Diameter (mm)
110.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.535
Discard Thickness (mm)
39
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.354
Mounting Bolt Hole Circle Diameter (mm)
136
Mounting Bolt Hole Diameter (in)
0.487
Mounting Bolt Hole Diameter (mm)
12.35
Mounting Bolt Hole Quantity
12
Nominal Thickness (in)
1.653
Nominal Thickness (mm)
42
Outside Diameter (in)
14.295
Outside Diameter (mm)
363.1
Overall Height (in)
3.95
Overall Height (mm)
100.35
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
12
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31352 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12143019, 121.43019 - CANADIAN TIRE, CENTRIC PARTS, CTEK
8971827710 - GENERAL MOTORS, OEM PART NUMBER, ISUZU
12743019L, 127.43019L - STOPTECH, CENTRIC PARTS
12743019R, 127.43019R - STOPTECH, CENTRIC PARTS
12043019, 120.43019 - STOPTECH, CENTRIC PARTS
97182771 - GENERAL MOTORS, OEM PART NUMBER
901122, 901-122 - DURAGO, PARTS MASTER
8981052720 - OEM PART NUMBER, ISUZU
BR901122 - DURAGO, DURA CORP
BR31352 - DURAGO, DURA CORP
32043019, 320.43019 - STOPTECH, CENTRIC PARTS
980066 - RAYBESTOS BRAKES, BRAKEBEST
8980063950 - OEM PART NUMBER, ISUZU
145558, 14-5558 - BENDIX, PROMAX
6620541 - WINHERE, PERFECT STOP
AX901122 - AUTO EXTRA, AUTOXTRA
PS126393 - WABCO ARCHIVED
211428C, 211428-C - CASTING NUMBERS
QBRR539 - OMNICRAFT
E12548024, E125-48-024 - FORMULA BLUE HYDRAULIC BRAKE PARTS
BD126393 - WAGNER BRAKE
980066RGS - BRAKEBEST
1431352, 14-31352 - PROMAX
YH145558 - ADVANCE AUTO PARTS
32043019F, 320.43019F - CENTRIC PARTS
X51602

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (26)vehicles
All
Chevrolet
GMC
Isuzu
1999 - 1999ChevroletW4500 Tiltmaster
2010 - 2011IsuzuFTR
2000 - 2003ChevroletW4500 Tiltmaster
2000 - 2014IsuzuNQR
2017 - 2021ChevroletLCF 5500XD
2015 - 2019IsuzuNPR-XD
1999 - 1999GMCW4500 Forward
2000 - 2003GMCW4500 Forward
2000 - 2010ChevroletW5500 Tiltmaster
2016 - 2019IsuzuNQR
2012 - 2018IsuzuNPR-HD
2000 - 2010GMCW5500 Forward
2003 - 2009IsuzuNPR-HD
2018 - 2018IsuzuFTR
1999 - 1999IsuzuNQR
2003 - 2010ChevroletW4500 Tiltmaster
2000 - 2003IsuzuNPR-HD
1999 - 1999IsuzuNPR-HD
2004 - 2009ChevroletW5500HD Tiltmaster
2017 - 2023ChevroletLCF 5500HD
