Raybestos

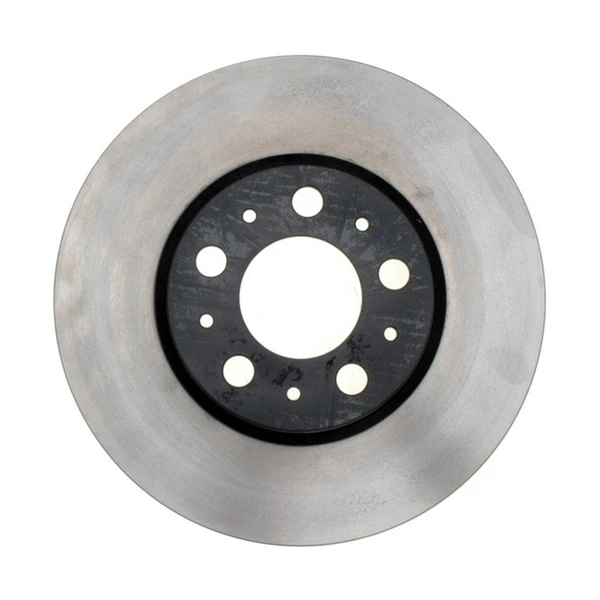

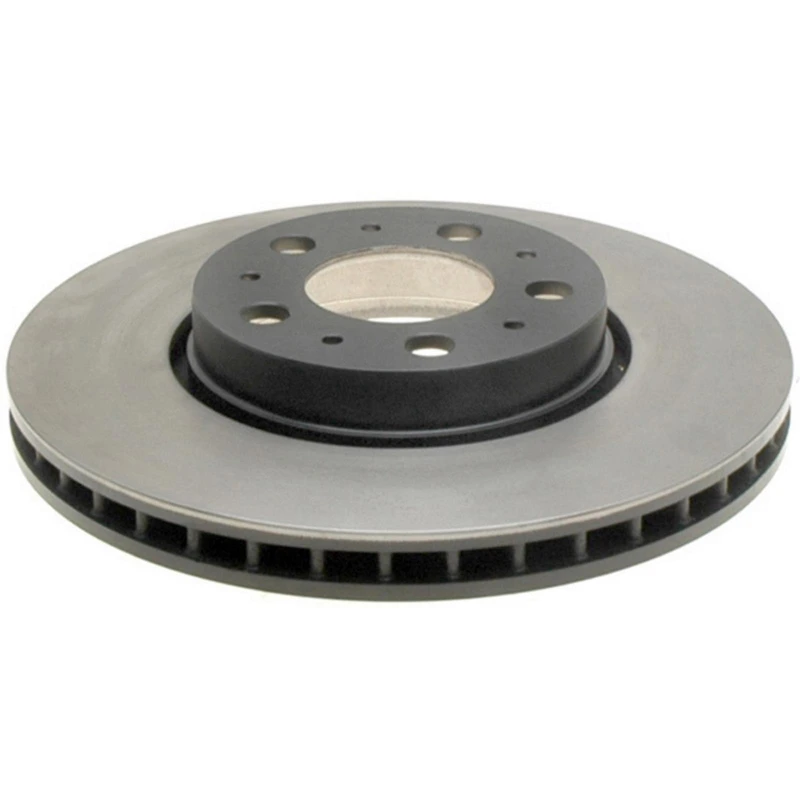

Raybestos 980046 Brake Rotor Front Side

Part # 980046
Item # 1000VAAS
$80.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.68
Center Hole Diameter (mm)
68.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.906
Discard Thickness (mm)
23
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.25
Mounting Bolt Hole Circle Diameter (mm)
107.95
Mounting Bolt Hole Diameter (in)
0.645
Mounting Bolt Hole Diameter (mm)
16.4
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.024
Nominal Thickness (mm)
26
Outside Diameter (in)
11.24
Outside Diameter (mm)
285.5
Overall Height (in)
1.98
Overall Height (mm)
50.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34207 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
2724030, 27-24030, 272403-0 - VOLVO WHITE, GENERAL MOTORS, OEM PART NUMBER, VOLKSWAGEN, VOLVO
312627060, 31262706-0 - VOLVO WHITE, OEM PART NUMBER, VOLKSWAGEN, VOLVO
2724037, 272 403 7 - VOLVO WHITE, OEM PART NUMBER, VOLKSWAGEN, VOLVO
272403, 272 403 - VOLVO WHITE, OEM PART NUMBER, VOLVO, IMC
31262706, 31 262 706 - VOLVO WHITE, OEM PART NUMBER, VOLKSWAGEN, VOLVO
140725659, 1407-25659 - AI CONVERTER, AUTOPAR, API
12539029, 125.39029 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
52011376 - BOSCH, BRAKEBEST
12739029L, 127.39029L - STOPTECH, CENTRIC PARTS
12739029R, 127.39029R - STOPTECH, CENTRIC PARTS
12539029CRY, 125.39029CRY - STOPTECH, CENTRIC PARTS
12839029L, 128.39029L - STOPTECH, CENTRIC PARTS
12839029R, 128.39029R - STOPTECH, CENTRIC PARTS
YH145433 - CARQUEST, ADVANCE AUTO PARTS
980046FZN - RAYBESTOS BRAKES, BRAKEBEST
12139029, 121.39029 - CENTRIC PARTS, CTEK
EBR642 - POWERSTOP, AUTOSPECIALTY
BR34207 - DURAGO, DURA CORP
980046 - RAYBESTOS BRAKES, BRAKEBEST
12639029CSL, 126.39029CSL - STOPTECH, CENTRIC PARTS
12639029SR, 126.39029SR - STOPTECH, CENTRIC PARTS
12639029CSR, 126.39029CSR - STOPTECH, CENTRIC PARTS
980046R - RAYBESTOS BRAKES, BRAKEBEST
12639029SL, 126.39029SL - STOPTECH, CENTRIC PARTS
YH145433C - CARQUEST, ADVANCE AUTO PARTS
32039029, 320.39029 - STOPTECH, CENTRIC PARTS
12839029CR, 128.39029CR - STOPTECH, CENTRIC PARTS
CW26122 - ATE, CONTINENTAL
12839029CL, 128.39029CL - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Volvo
2006 - 2009VolvoS60
2004 - 2004VolvoV70
2001 - 2003VolvoS60
2004 - 2007VolvoV70
1999 - 2006VolvoS80
2004 - 2005VolvoS60
2001 - 2003VolvoV70
2004 - 2007VolvoV70
2004 - 2005VolvoS60
2003 - 2007VolvoXC70
2004 - 2005VolvoS60
2004 - 2005VolvoS60
