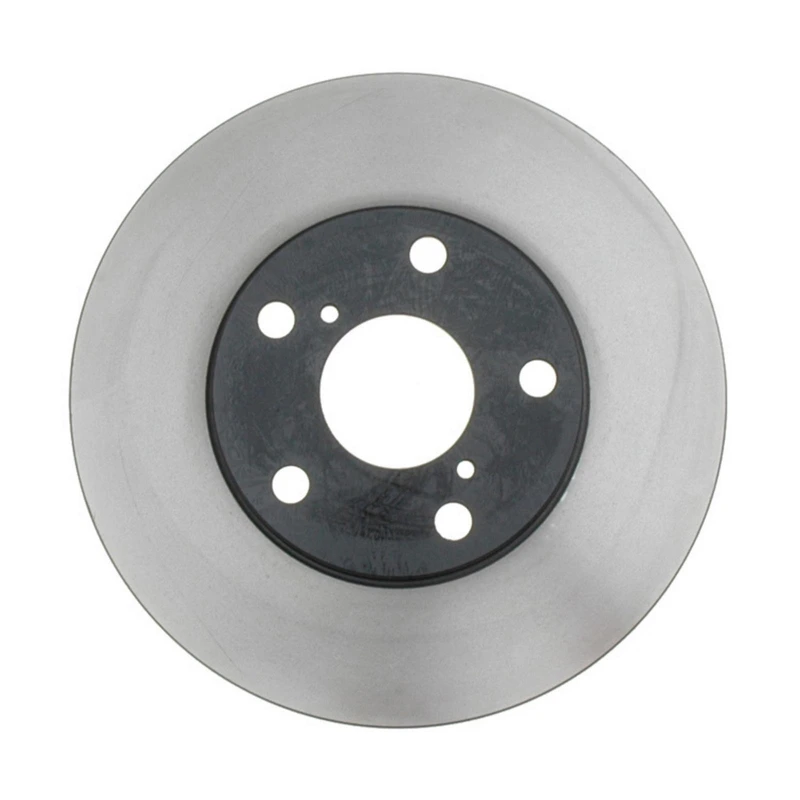

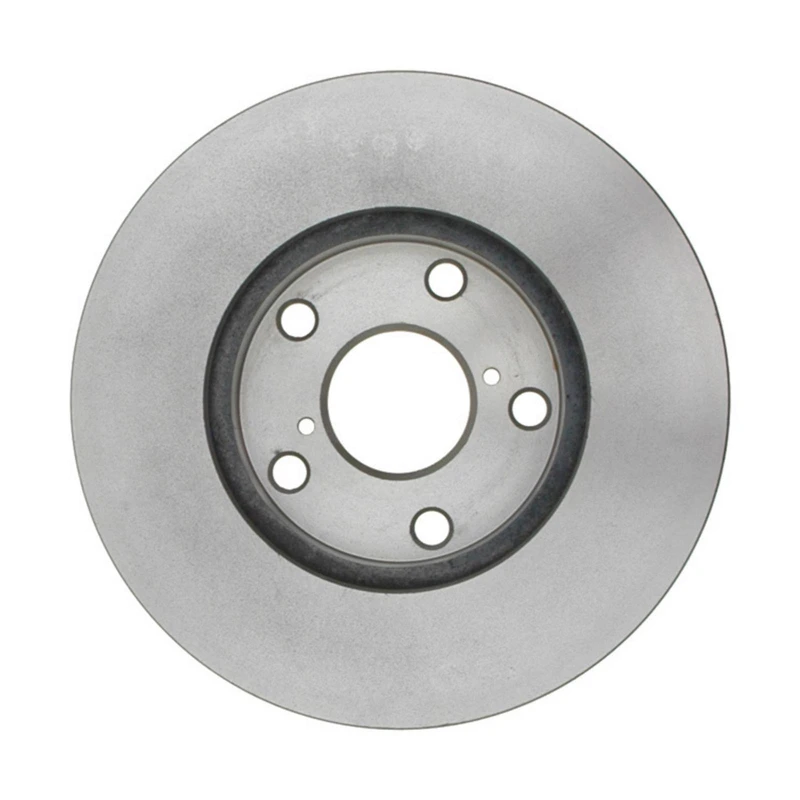

Raybestos 980033 Brake Rotor Front Side
Part # 980033
Item # 1000VAEH
$73.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- Material
- Cast Iron
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.44
- Center Hole Diameter (mm)
- 62
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness (in)
- 0.906
- Discard Thickness (mm)
- 23
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.5
- Mounting Bolt Hole Circle Diameter (mm)
- 114.3
- Mounting Bolt Hole Diameter (in)
- 0.573
- Mounting Bolt Hole Diameter (mm)
- 14.55
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.984
- Nominal Thickness (mm)
- 25
- Outside Diameter (in)
- 10.825
- Outside Diameter (mm)
- 274.95
- Overall Height (in)
- 1.94
- Overall Height (mm)
- 49.3
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31295, 31-295 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
12644121SL, 126.44121SL - STOPTECH, CENTRIC PARTS
12644121SR, 126.44121SR - STOPTECH, CENTRIC PARTS
12044121, 120.44121 - STOPTECH, CENTRIC PARTS
980033 - RAYBESTOS BRAKES, BRAKEBEST
145328 - BENDIX, ADVANCE AUTO PARTS
DF4161S - TRW STEERING AND SUSPENSION PARTS, TRW
12144121, 121.44121 - CENTRIC PARTS, CTEK
22744121R, 227.44121R - STOPTECH, CENTRIC PARTS
25679 - BREMBO, IMC
22744121L, 227.44121L - STOPTECH, CENTRIC PARTS
32044121, 320.44121 - STOPTECH, CENTRIC PARTS
12844121L, 128.44121L - STOPTECH, CENTRIC PARTS
12744121CL, 127.44121CL - STOPTECH, CENTRIC PARTS
12844121R, 128.44121R - STOPTECH, CENTRIC PARTS
980033R - RAYBESTOS BRAKES, BRAKEBEST
12744121CR, 127.44121CR - STOPTECH, CENTRIC PARTS
YH145328C - CARQUEST, ADVANCE AUTO PARTS
YH145328 - CARQUEST, ADVANCE AUTO PARTS
BR31295 - DURAGO, DURA CORP
AX31295 - AUTO EXTRA, AUTOXTRA
980033FZN - RAYBESTOS BRAKES, BRAKEBEST
12744121R, 127.44121R - STOPTECH, CENTRIC PARTS
12644121CSR, 126.44121CSR - STOPTECH, CENTRIC PARTS
50011235 - BOSCH, BRAKEBEST
12644121CSL, 126.44121CSL - STOPTECH, CENTRIC PARTS
12744121L, 127.44121L - STOPTECH, CENTRIC PARTS
12844121CR, 128.44121CR - STOPTECH, CENTRIC PARTS
JBR974 - POWERSTOP, AUTOSPECIALTY
CW25703 - ATE, CONTINENTAL
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Toyota
| 2001 - 2005 | Toyota | RAV4 |
