Raybestos

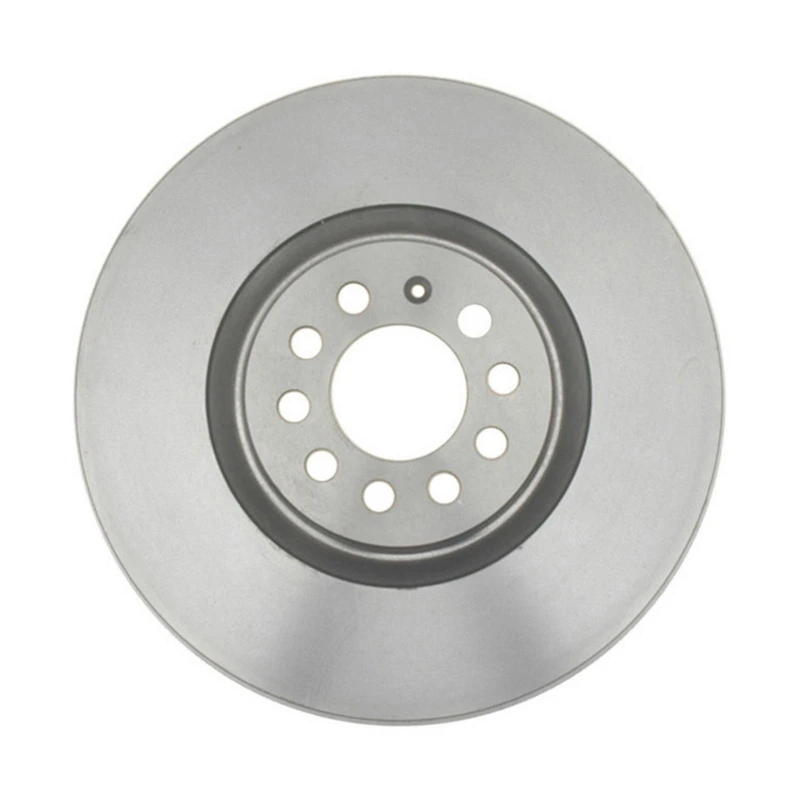

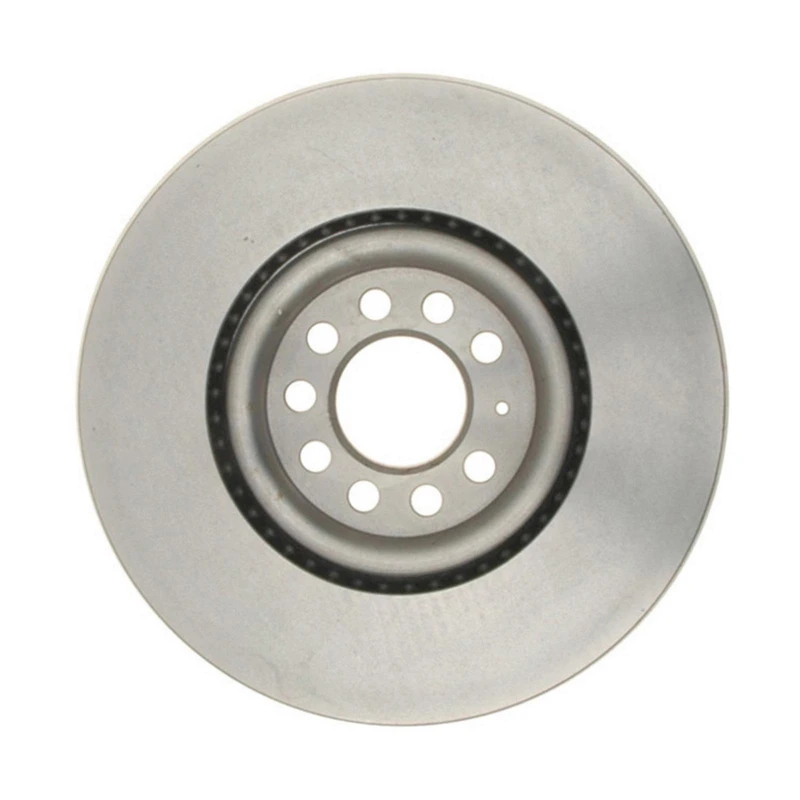

Raybestos 980004 Brake Rotor Front Side

Part # 980004
Item # 1000VAKY
$86.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.559
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.906
Discard Thickness (mm)
23
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.937
Mounting Bolt Hole Circle Diameter (mm)
100
Mounting Bolt Hole Diameter (in)
0.609
Mounting Bolt Hole Diameter (mm)
15.45
Mounting Bolt Hole Quantity
9
Nominal Thickness (in)
0.984
Nominal Thickness (mm)
25
Outside Diameter (in)
12.283
Outside Diameter (mm)
312
Overall Height (in)
1.354
Overall Height (mm)
34.4
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
9
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34193, 34-193 - CARQUEST, DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
8N0615301A, 8N0 615 301 A - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN, IMC
8L0615301, 8L0 615 301 - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
12133062, 121.33062 - AUTOZONE, CENTRIC PARTS, CTEK
145387, 14-5387 - BENDIX, ADVANCE AUTO PARTS, PROMAX
BD126241 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12533062, 125.33062 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12733062L, 127.33062L - STOPTECH, CENTRIC PARTS
980004R - RAYBESTOS BRAKES, BRAKEBEST
12633062CSL, 126.33062CSL - STOPTECH, CENTRIC PARTS
12733062R, 127.33062R - STOPTECH, CENTRIC PARTS
12633062CSR, 126.33062CSR - STOPTECH, CENTRIC PARTS
980004 - RAYBESTOS BRAKES, BRAKEBEST
12833062CL, 128.33062CL - STOPTECH, CENTRIC PARTS
12533062CRY, 125.33062CRY - STOPTECH, CENTRIC PARTS
12733062CL, 127.33062CL - STOPTECH, CENTRIC PARTS
YH145387 - CARQUEST, ADVANCE AUTO PARTS
BR34193 - DURAGO, DURA CORP
355106732 - PAGID RACING, HELLA PAGID
12633062SR, 126.33062SR - STOPTECH, CENTRIC PARTS
DF4064S - TRW STEERING AND SUSPENSION PARTS, TRW
12633062SL, 126.33062SL - STOPTECH, CENTRIC PARTS
12833062R, 128.33062R - STOPTECH, CENTRIC PARTS
12833062L, 128.33062L - STOPTECH, CENTRIC PARTS
12733062CR, 127.33062CR - STOPTECH, CENTRIC PARTS
53011389 - BOSCH, BRAKEBEST
12833062CR, 128.33062CR - STOPTECH, CENTRIC PARTS
662848 - WINHERE, PERFECT STOP
QBRR553 - OMNICRAFT
BD126241E - WAGNER BRAKE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Audi
Volkswagen
2000 - 2006AudiTT
2000 - 2006AudiTT Quattro
2004 - 2004VolkswagenJetta
2003 - 2003VolkswagenGolf
2002 - 2002VolkswagenGolf
2011 - 2013VolkswagenClasico
