Raybestos

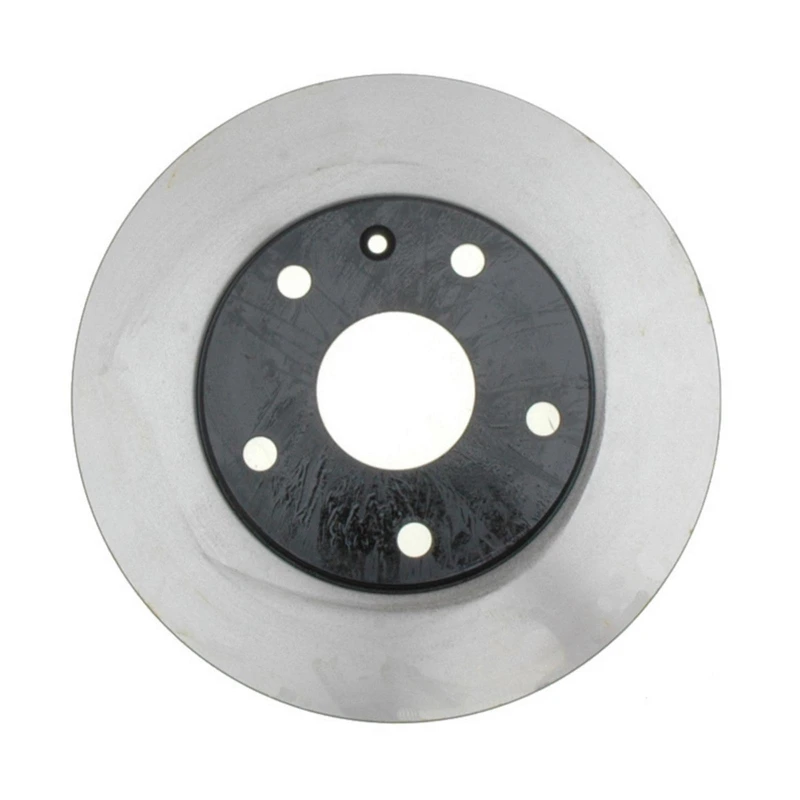

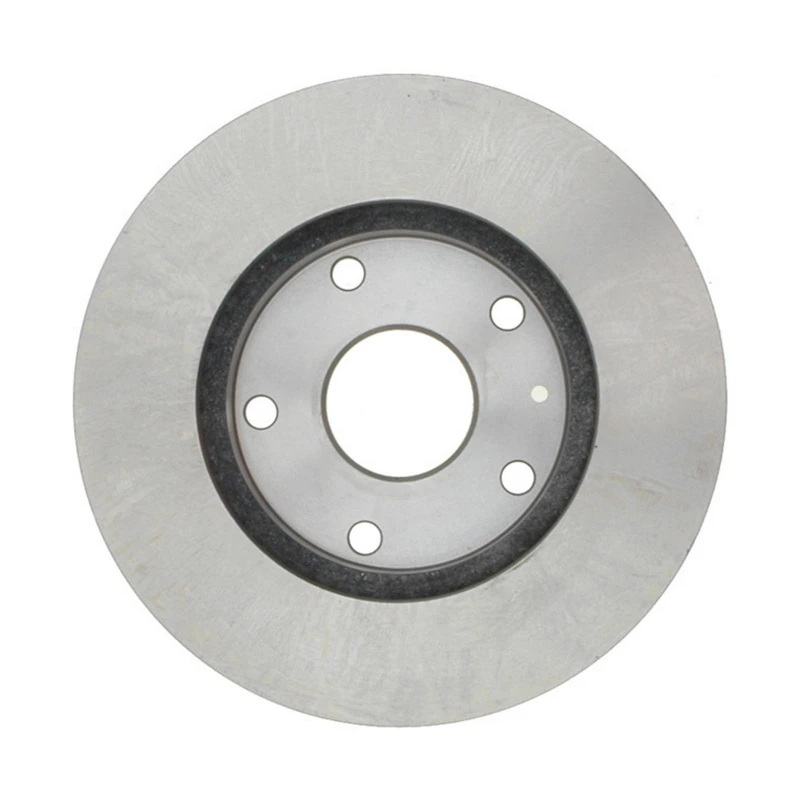

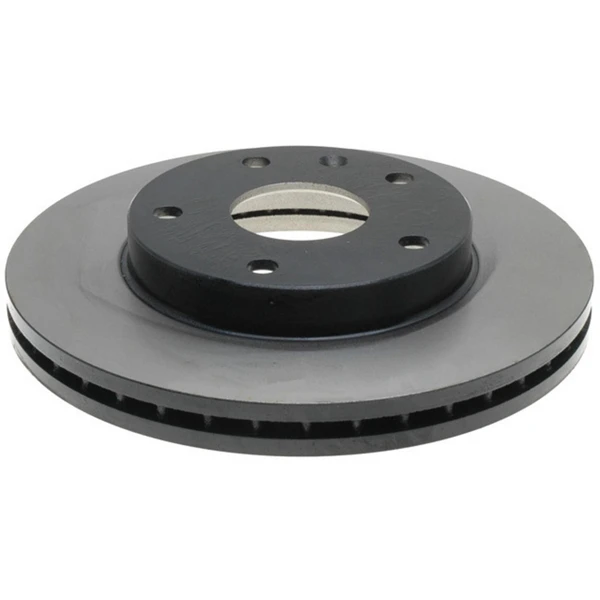

Raybestos 96949 Brake Rotor Front Side

Part # 96949
Item # 1000V63C
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.365
Center Hole Diameter (mm)
60.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.882
Discard Thickness (mm)
22.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.495
Mounting Bolt Hole Diameter (mm)
12.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.945
Nominal Thickness (mm)
24
Outside Diameter (in)
10.07
Outside Diameter (mm)
255.8
Overall Height (in)
1.845
Overall Height (mm)
46.85
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31278, 3-1278 - QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12149001, 121.49001 - CANADIAN TIRE, CENTRIC PARTS, CTEK
BD126129 - WAGNER BRAKE, BRAKEBEST
BR31278 - DURAGO, DURA CORP
JBR942 - POWERSTOP, AUTOSPECIALTY
96238673 - DAEWOO, OEM PART NUMBER
96949R - RAYBESTOS BRAKES, BRAKEBEST
YH145334 - CARQUEST, ADVANCE AUTO PARTS
442892 - WINHERE, PERFECT STOP
145334 - BENDIX, ADVANCE AUTO PARTS
12749001L, 127.49001L - STOPTECH, CENTRIC PARTS
12649001SR, 126.49001SR - STOPTECH, CENTRIC PARTS
12749001R, 127.49001R - STOPTECH, CENTRIC PARTS
96949 - RAYBESTOS BRAKES, BRAKEBEST
12649001SL, 126.49001SL - STOPTECH, CENTRIC PARTS
1431278, 14-31278 - PROMAX
JBR942E - AUTOSPECIALTY
09909485, 09.9094.85 - BREMBO
12049001, 120.49001 - CENTRIC PARTS
8902003, 89-02003 - AMERICAN REMANUFACTURED
52126129, 52-126129 - GUARDIAN
BDC5007 - QUINTON HAZELL
CW24723 - CONTINENTAL
81126129, 81-126129 - BRAKEBEST
211398C, 211398-C - CASTING NUMBERS
YH145334C - ADVANCE AUTO PARTS
31278G - PEP BOYS
325527 - CASTING NUMBERS
25677, 2-5677 - BREMBO
31278DG - AUTOZONE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Daewoo
1999 - 2002DaewooLeganza
