Raybestos

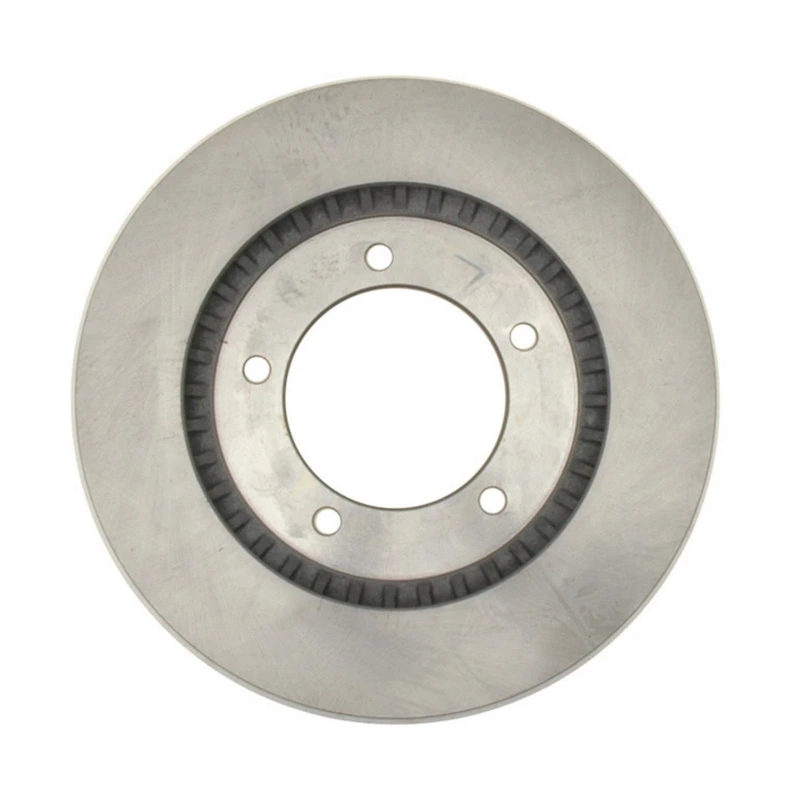

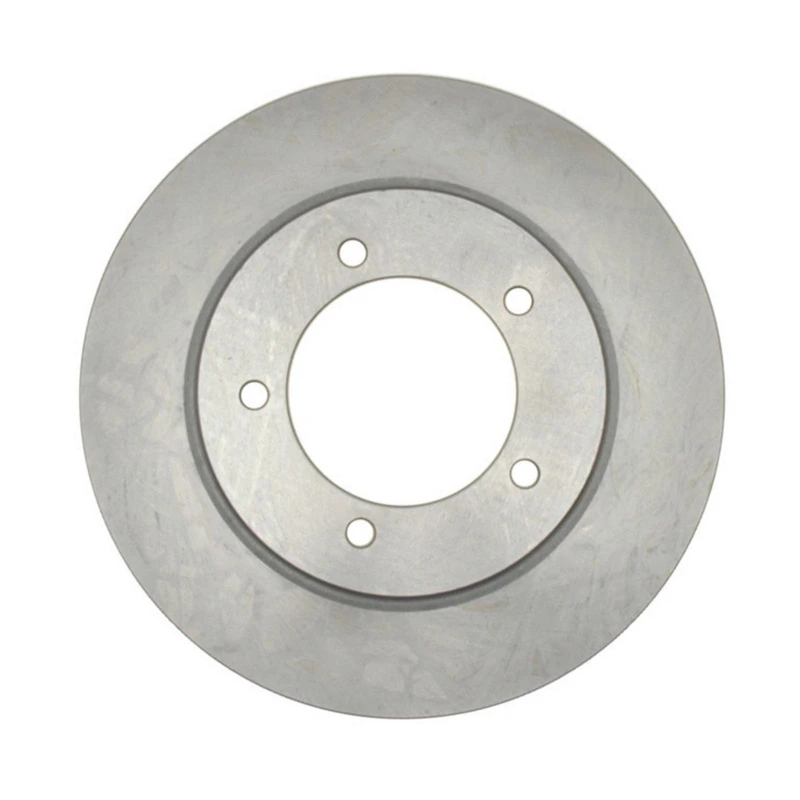

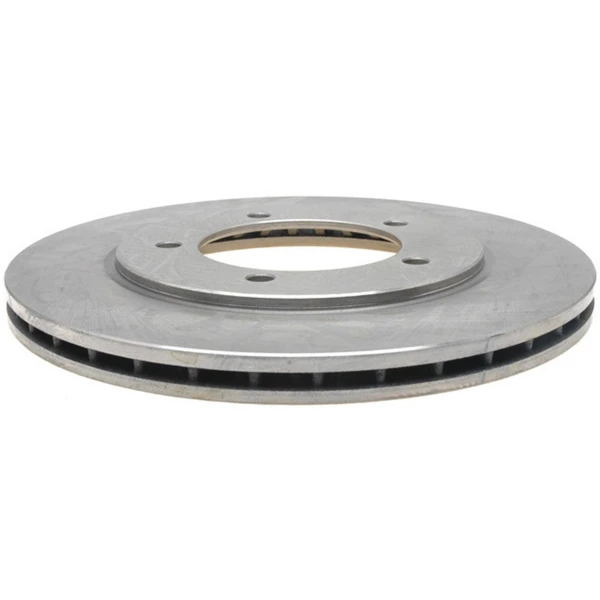

Raybestos 96922R Brake Rotor Front Side

Part # 96922R
Item # 1000RZ81
$53.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
4.27
Center Hole Diameter (mm)
108.45
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.787
Discard Thickness (mm)
20
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
5.5
Mounting Bolt Hole Circle Diameter (mm)
139.7
Mounting Bolt Hole Diameter (in)
0.5
Mounting Bolt Hole Diameter (mm)
12.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.866
Nominal Thickness (mm)
22
Outside Diameter (in)
12.195
Outside Diameter (mm)
309.75
Overall Height (in)
1.14
Overall Height (mm)
28.95
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96922R
083-2869
09.9089.85
120.48008
121.48008
125.48008
125736
126.48008SL
126.48008SR
127.48008L
127.48008R
128.48008CL
128.48008CR
128.48008L
128.48008R
14-31289
145296
211244-C
25648
31276
31276DG
31289
31289G
320.48008
325563
4156
478090
49011211
52-125736
5521165D11

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Suzuki
1999 - 2005SuzukiGrand Vitara
2002 - 2006SuzukiXL-7
