Raybestos

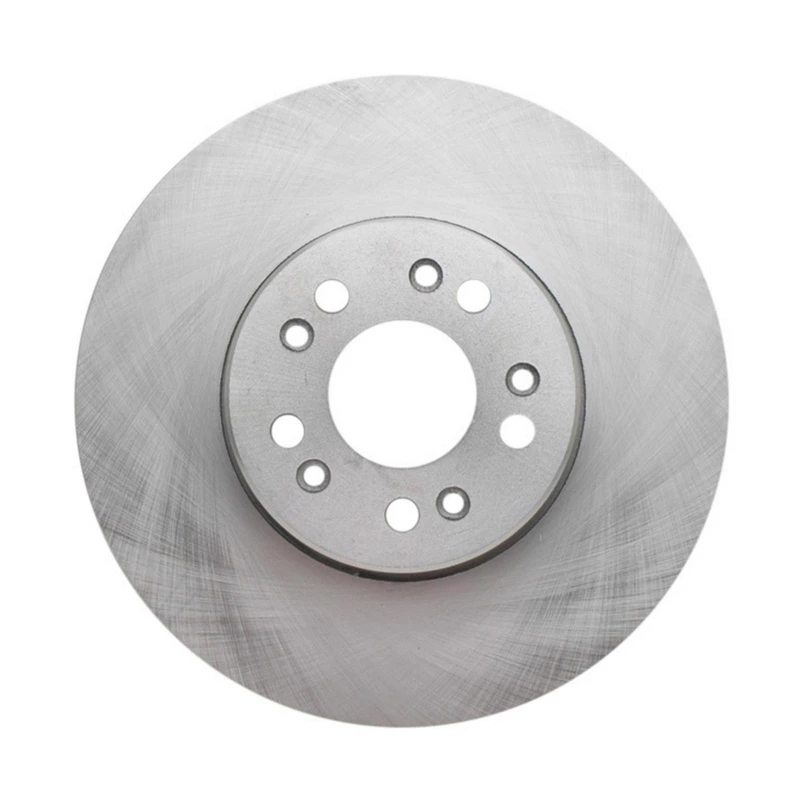

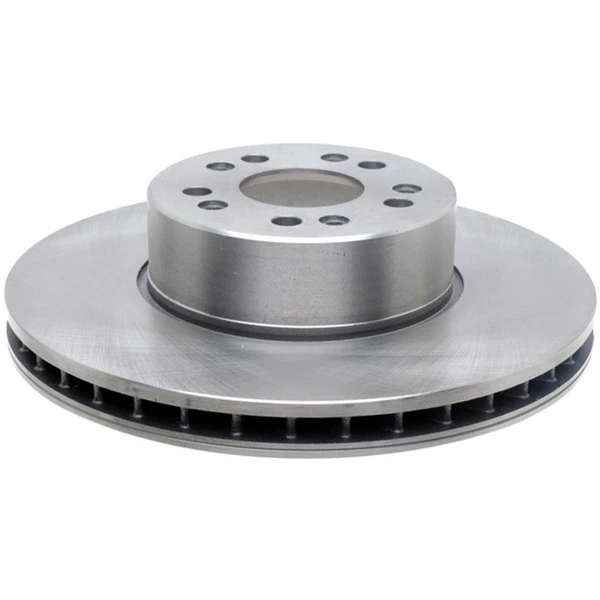

Raybestos 96838 Brake Rotor Front Side

Part # 96838
Item # 1000VAAT
$120.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.638
Center Hole Diameter (mm)
67
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1.079
Discard Thickness (mm)
27.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
4.409
Mounting Bolt Hole Diameter (mm)
112
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.181
Nominal Thickness (mm)
30
Outside Diameter (in)
12.598
Outside Diameter (mm)
320
Overall Height (in)
3.228
Overall Height (mm)
82
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34112, 341-12 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
34047 - AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, QUALIS
1404211012, 140 421 10 12, 140 421 1012 - OEM PART NUMBER, ALTROM GROUP, IMC, MERCEDESBENZ
12135023, 121.35023 - CANADIAN TIRE, CENTRIC PARTS, CTEK
12735023L, 127.35023L - STOPTECH, CENTRIC PARTS
BR34047 - DURAGO, DURA CORP
145373, 14-5373 - BENDIX, PROMAX
96838 - RAYBESTOS BRAKES, BRAKEBEST
1404210912, 140 421 0912 - OEM PART NUMBER, MERCEDESBENZ
12535023CRY, 125.35023CRY - STOPTECH, CENTRIC PARTS
96838R - RAYBESTOS BRAKES, BRAKEBEST
12635023SL, 126.35023SL - STOPTECH, CENTRIC PARTS
12835023L, 128.35023L - STOPTECH, CENTRIC PARTS
BR34112 - DURAGO, DURA CORP
36010947 - BOSCH, BRAKEBEST
12635023SR, 126.35023SR - STOPTECH, CENTRIC PARTS
YH145373 - CARQUEST, ADVANCE AUTO PARTS
12535023, 125.35023 - STOPTECH, CENTRIC PARTS
36010963 - BOSCH, BRAKEBEST
12635023CSL, 126.35023CSL - STOPTECH, CENTRIC PARTS
442332GBL - WINHERE, PERFECT STOP
12635023CSR, 126.35023CSR - STOPTECH, CENTRIC PARTS
09872610, 09.8726.10 - BREMBO
325914 - CASTING NUMBERS
2595 - TRW
2593, 2-593 - TRW
32035023H, 320.35023H - CENTRIC PARTS
45054 - QUALIS
12035023, 120.35023 - CENTRIC PARTS
432902, 43-2902 - GREN

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (15)vehicles
All
Mercedes-Benz
1992 - 1993Mercedes-Benz600SEL
1994 - 1999Mercedes-BenzS600
1998 - 1999Mercedes-BenzCL500
1992 - 1993Mercedes-Benz300SE
1992 - 1992Mercedes-Benz400SE
1995 - 1999Mercedes-BenzS420
1994 - 1999Mercedes-BenzS500
1993 - 1993Mercedes-Benz400SEL
1998 - 1999Mercedes-BenzCL600
1992 - 1993Mercedes-Benz300SD
1993 - 1993Mercedes-Benz600SEC
1994 - 1995Mercedes-BenzS350
1992 - 1993Mercedes-Benz500SEL
1994 - 1999Mercedes-BenzS320
1993 - 1993Mercedes-Benz500SEC
