Raybestos

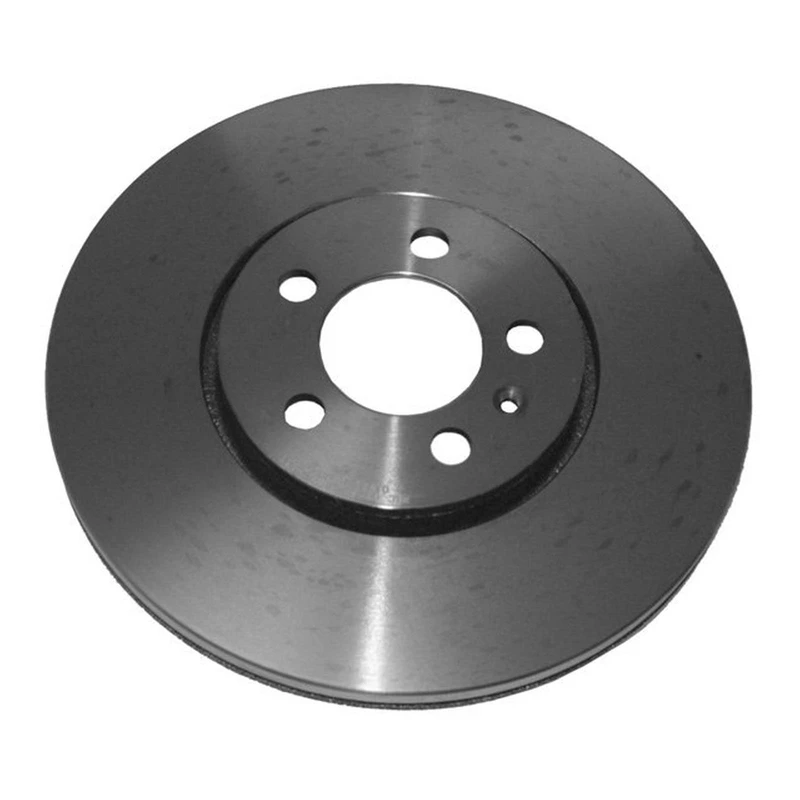

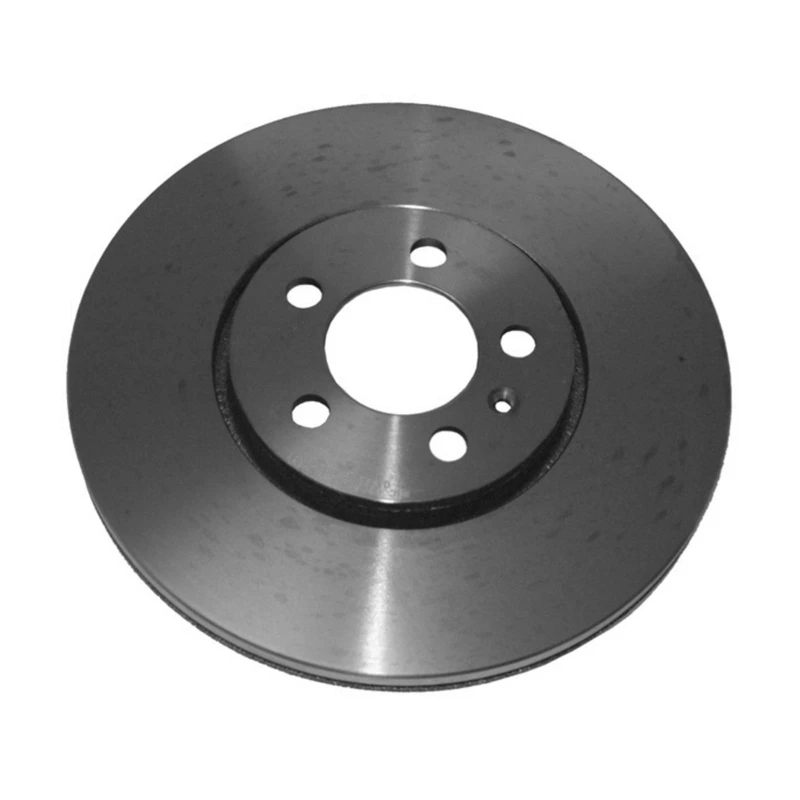

Raybestos 96806R Brake Rotor Front Side

Part # 96806R
Item # 1000RYLD
$63.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.937
Mounting Bolt Hole Circle Diameter (mm)
100
Mounting Bolt Hole Diameter (in)
3.937
Mounting Bolt Hole Diameter (mm)
100
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.984
Nominal Thickness (mm)
25
Outside Diameter (in)
11.33
Outside Diameter (mm)
287.8
Overall Height (in)
1.35
Overall Height (mm)
34.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96806R
083-2793
09.7010.10
09.7010.21
117201
120.33059
121.33059
125.33059
125.33059CRY
125681
126.33059CSL
126.33059CSR
126.33059SL
126.33059SR
127.33059CL
127.33059CR
127.33059L
127.33059R
128.33059CL
128.33059CR
128.33059L
128.33059R
14-34168
145278
1J0615301K
1J0615301S
211242-C
227.33059L
227.33059R
25503

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (31)vehicles
All
Audi
Seat
Volkswagen
1998 - 2003AudiA3
2011 - 2018AudiA1
2001 - 2002SeatCordoba
2001 - 2005SeatToledo
2001 - 2007SeatLeon
2002 - 2002SeatIbiza
2003 - 2009SeatCordoba
2003 - 2010SeatIbiza
2011 - 2012SeatIbiza
2015 - 2016SeatToledo
2018 - 2018SeatToledo
1999 - 1999VolkswagenGolf
1999 - 1999VolkswagenJetta
1999 - 2005VolkswagenBeetle
2000 - 2000VolkswagenGolf
2000 - 2000VolkswagenGolf
2000 - 2004VolkswagenJetta
2001 - 2001VolkswagenGolf
2001 - 2001VolkswagenGolf
2002 - 2002VolkswagenGolf
