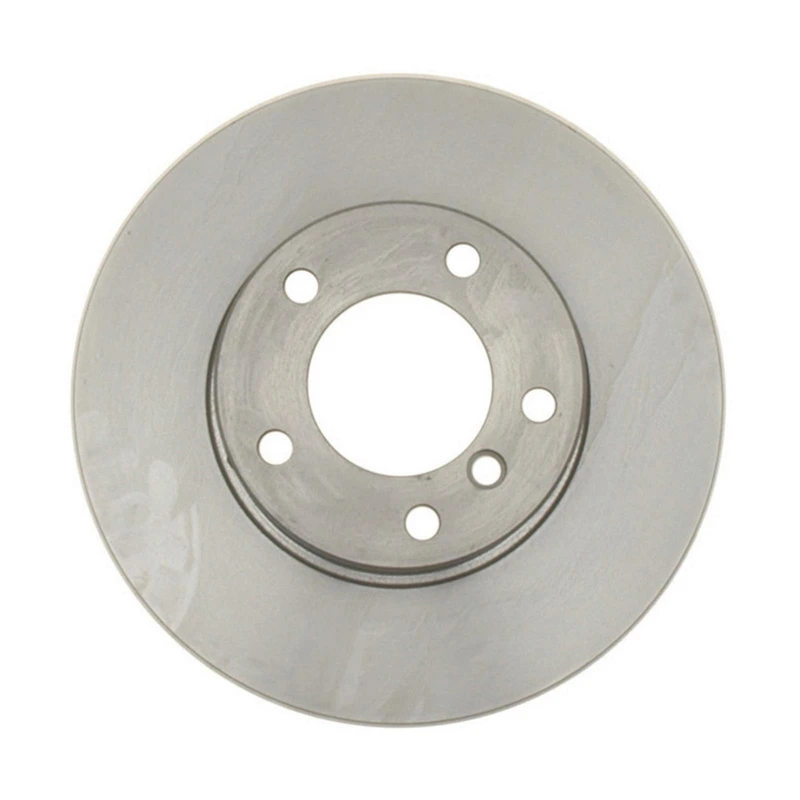

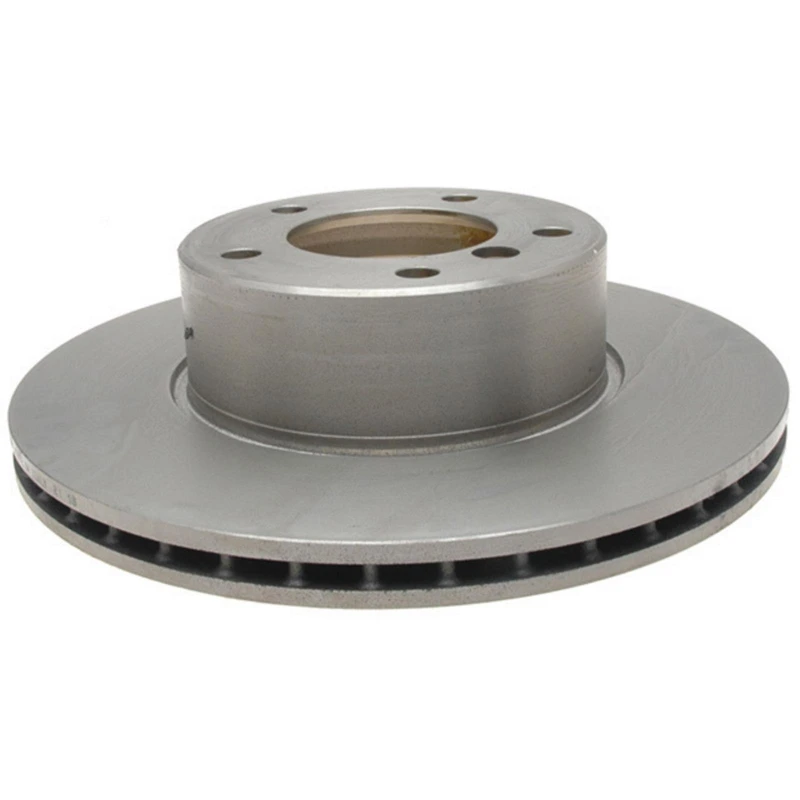

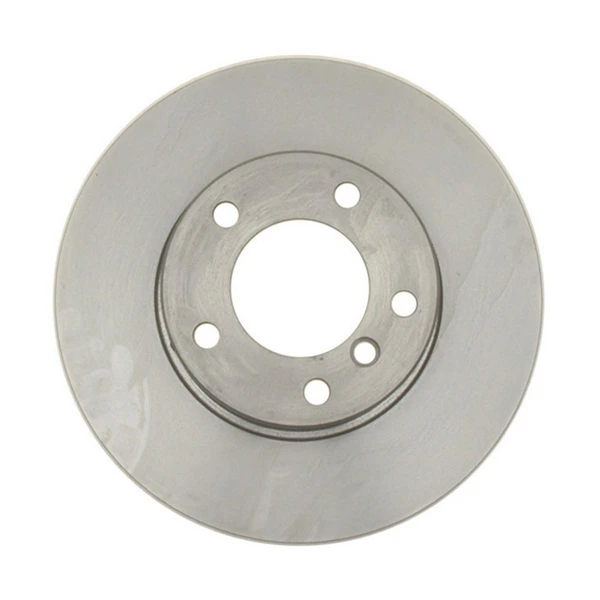

Raybestos 96801 Brake Rotor Front Side
Part # 96801
Item # 1000V8HX
$76.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 3.11
- Center Hole Diameter (mm)
- 79
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.803
- Discard Thickness (mm)
- 20.4
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 4.724
- Mounting Bolt Hole Circle Diameter (mm)
- 120
- Mounting Bolt Hole Diameter (in)
- 0.575
- Mounting Bolt Hole Diameter (mm)
- 14.6
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.866
- Nominal Thickness (mm)
- 22
- Outside Diameter (in)
- 11.654
- Outside Diameter (mm)
- 296
- Overall Height (in)
- 2.992
- Overall Height (mm)
- 76
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Solid
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34161 - DURALAST, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, CASTING NUMBERS, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS
12534045, 125.34045 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
34111163013, 3411 1 163 013, 34 11 1 163 013 - OEM PART NUMBER, BMW, IMC
34121, 3412-1 - NEWTEK AUTOMOTIVE USA, AIMCO, QUALIS
96801FZN - RAYBESTOS BRAKES, BRAKEBEST
96801R - RAYBESTOS BRAKES, BRAKEBEST
12834045CL, 128.34045CL - STOPTECH, CENTRIC PARTS
145371, 14-5371 - BENDIX, PROMAX
12534045CRY, 125.34045CRY - STOPTECH, CENTRIC PARTS
12834045CR, 128.34045CR - STOPTECH, CENTRIC PARTS
12134045, 121.34045 - CENTRIC PARTS, CTEK
34116767061, 3411 6 767 061, 34 11 6 767 061 - OEM PART NUMBER, BMW
25473 - BREMBO, LEMFORDER
96801 - RAYBESTOS BRAKES, BRAKEBEST
BD125575 - MONROE BRAKES, WAGNER BRAKE
15010121 - BOSCH, BRAKEBEST
12734045L, 127.34045L - STOPTECH, CENTRIC PARTS
EBR496 - POWERSTOP, AUTOSPECIALTY
12734045R, 127.34045R - STOPTECH, CENTRIC PARTS
12634045CSR, 126.34045CSR - STOPTECH, CENTRIC PARTS
12634045CSL, 126.34045CSL - STOPTECH, CENTRIC PARTS
CW22159 - ATE, CONTINENTAL
442496 - WINHERE, PERFECT STOP
34111164839, 34 11 1 164 839, 3411 1 164 839 - OEM PART NUMBER, BMW
12834045R, 128.34045R - STOPTECH, CENTRIC PARTS
BR34161 - DURAGO, DURA CORP
355122112 - PAGID RACING, HELLA PAGID
YH145371 - CARQUEST, ADVANCE AUTO PARTS
12634045SL, 126.34045SL - STOPTECH, CENTRIC PARTS
12834045L, 128.34045L - STOPTECH, CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
BMW
| 2001 - 2003 | BMW | 525i |
| 1996 - 2000 | BMW | 528i |
