Raybestos

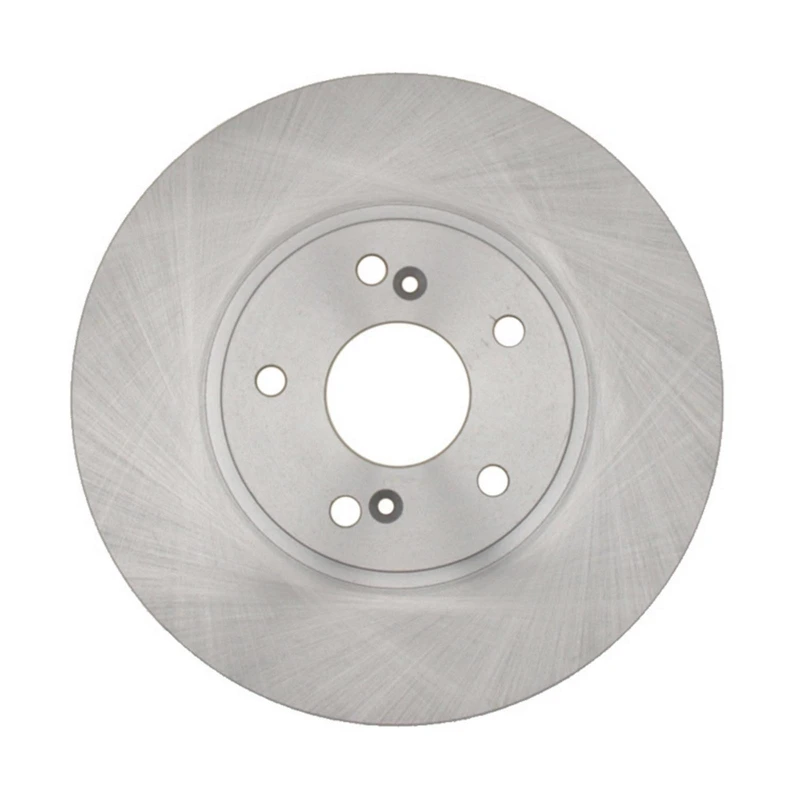

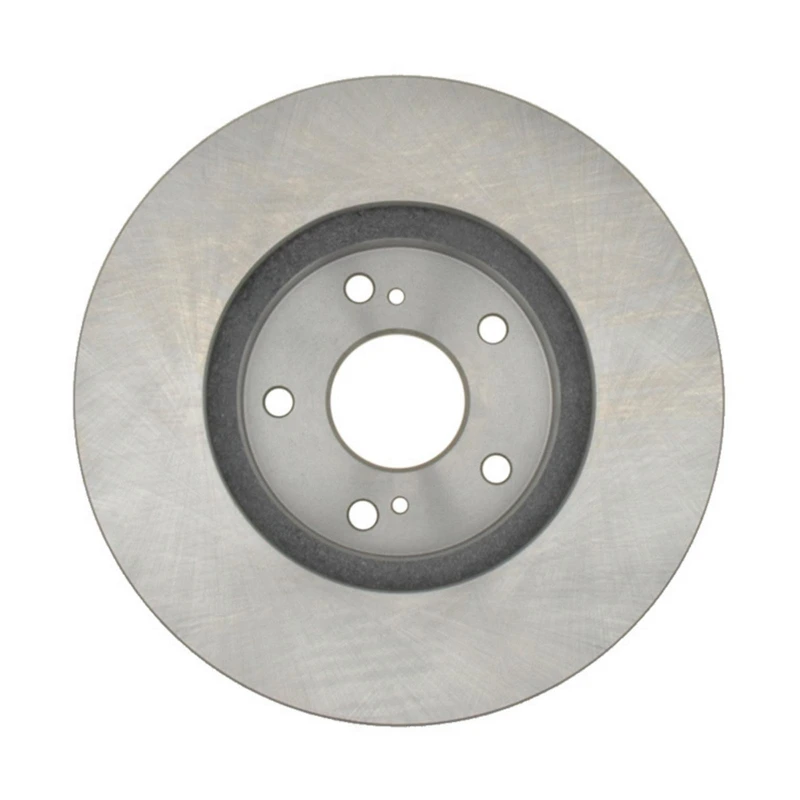

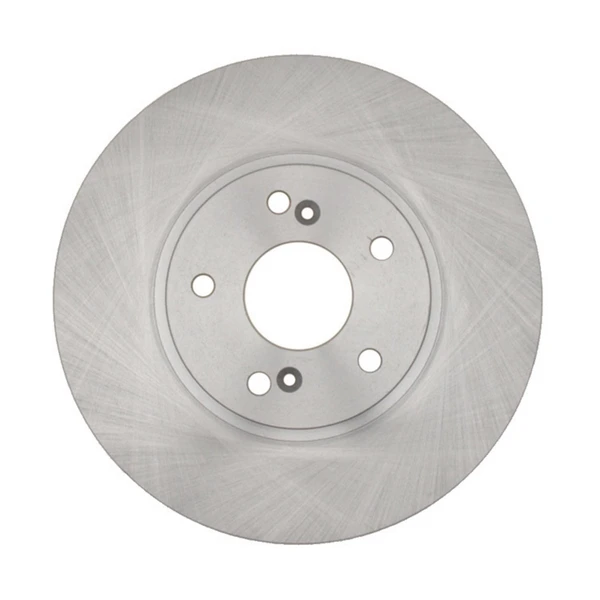

Raybestos 96795R Brake Rotor Front Side

Part # 96795R
Item # 1000RZAH
$64.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.53
Center Hole Diameter (mm)
64.25
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.024
Discard Thickness (mm)
26
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.5
Mounting Bolt Hole Diameter (mm)
12.7
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.1
Nominal Thickness (mm)
27.95
Outside Diameter (in)
11.81
Outside Diameter (mm)
299.95
Overall Height (in)
1.86
Overall Height (mm)
47.25
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96795R
083-2822
09.8840.10
108218
120.40046
120.40046CRY
121.40046
125.40046
125.40046CRY
125674
126.40046CSL
126.40046CSR
126.40046SL
126.40046SR
127.40046CL
127.40046CR
127.40046L
127.40046R
128.40046CL
128.40046CR
128.40046L
128.40046R
14-31275
145287
20-31275
2031275
227.40046L
227.40046R
228.40046DL
228.40046DR

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (18)vehicles
All
Acura
Honda
1999 - 2003AcuraTL
2001 - 2003AcuraCL
2001 - 2006AcuraMDX
2004 - 2008AcuraTSX
2006 - 2006AcuraTL
2007 - 2008AcuraTL
1999 - 2004HondaOdyssey
2003 - 2005HondaAccord
2003 - 2008HondaPilot
2006 - 2007HondaAccord
2006 - 2007HondaAccord
2007 - 2007HondaAccord
2007 - 2007HondaAccord
2008 - 2011HondaAccord
2008 - 2012HondaAccord
2008 - 2012HondaAccord
2012 - 2012HondaAccord
2012 - 2012HondaAccord
