Raybestos

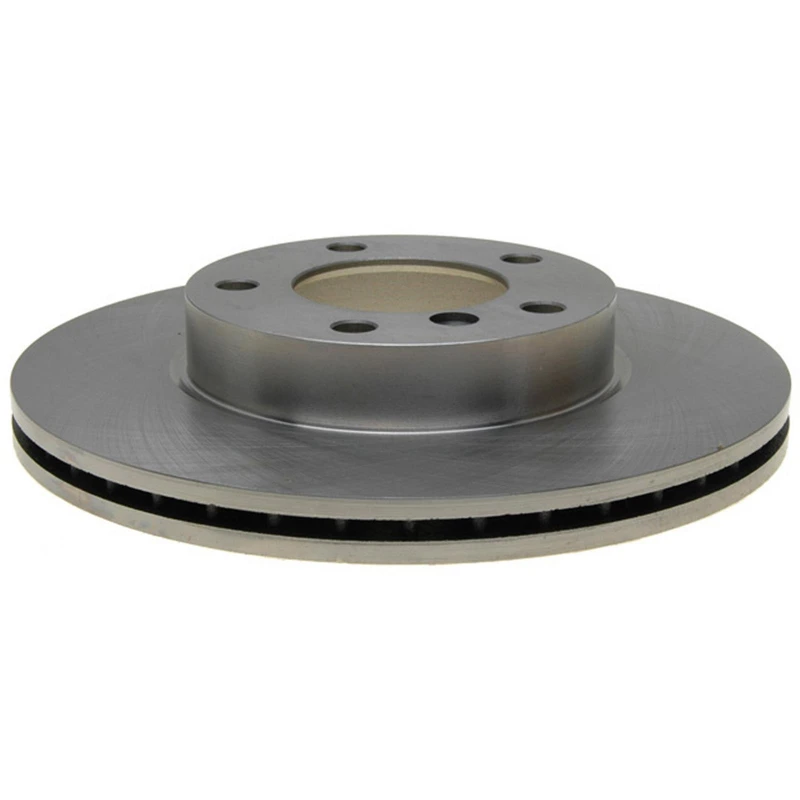

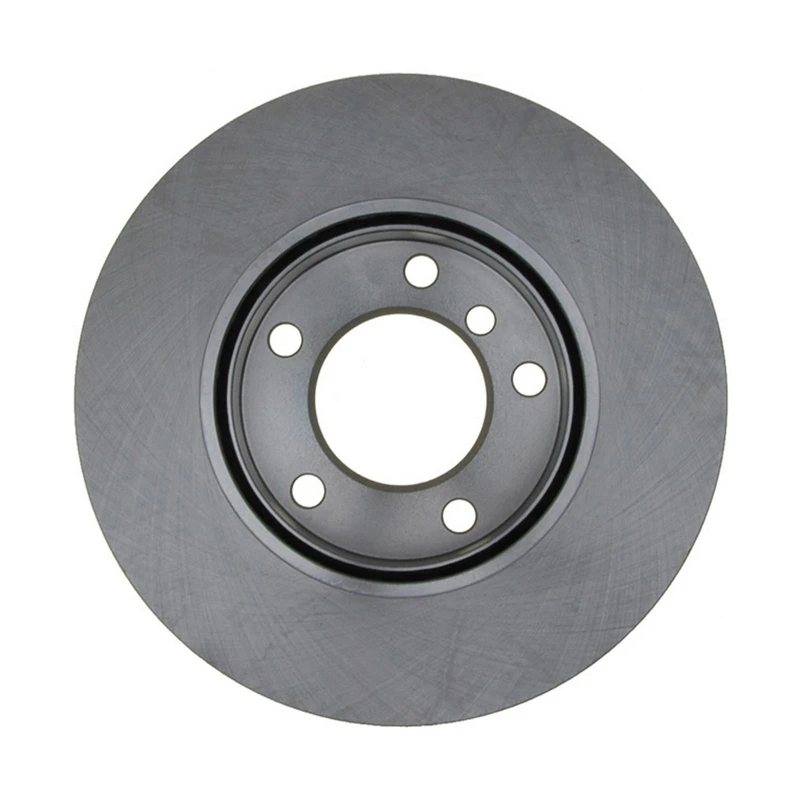

Raybestos 96780R Brake Rotor Front Side

Part # 96780R
Item # 1000RZV0
$65.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.12
Center Hole Diameter (mm)
79.25
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.803
Discard Thickness (mm)
20.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.72
Mounting Bolt Hole Circle Diameter (mm)
119.9
Mounting Bolt Hole Diameter (in)
0.573
Mounting Bolt Hole Diameter (mm)
14.55
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.86
Nominal Thickness (mm)
21.85
Outside Diameter (in)
11.25
Outside Diameter (mm)
285.75
Overall Height (in)
2.03
Overall Height (mm)
51.55
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34064 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
34004 - AUTOZONE, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
BD125277 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12534029, 125.34029 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
34111162282, 3411 1 162 282 - OEM PART NUMBER, BMW
22634029SLT, 226.34029SLT - STOPTECH, CENTRIC PARTS
96780 - RAYBESTOS BRAKES, BRAKEBEST
12634029CSR, 126.34029CSR - STOPTECH, CENTRIC PARTS
403102, 40-3102 - GREN, DASH4
125277, 12-5277 - PARTS MASTER, AUTOXTRA
12634029CSL, 126.34029CSL - STOPTECH, CENTRIC PARTS
355102582 - PAGID RACING, HELLA PAGID
BR34064 - DURAGO, DURA CORP
96780FZN - RAYBESTOS BRAKES, BRAKEBEST
15010056 - BOSCH, BRAKEBEST
96780R - RAYBESTOS BRAKES, BRAKEBEST
12634029SL, 126.34029SL - STOPTECH, CENTRIC PARTS
141815 - BENDIX, ADVANCE AUTO PARTS
8962030, 89-62030 - DELTA, AMERICAN REMANUFACTURED
12634029SR, 126.34029SR - STOPTECH, CENTRIC PARTS
22634029SRT, 226.34029SRT - STOPTECH, CENTRIC PARTS
32034029, 320.34029 - STOPTECH, CENTRIC PARTS
12734029L, 127.34029L - STOPTECH, CENTRIC PARTS
78962030, 789-62030 - DELTA, AMERICAN REMANUFACTURED
12734029CL, 127.34029CL - STOPTECH, CENTRIC PARTS
BR34004 - DURAGO, DURA CORP
12734029CR, 127.34029CR - STOPTECH, CENTRIC PARTS
12134029, 121.34029 - CENTRIC PARTS, CTEK
34116864060, 3411 6 864 060 - OEM PART NUMBER, BMW
12734029R, 127.34029R - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (21)vehicles
All
BMW
1992 - 1992BMW318i
1992 - 1992BMW325i
1992 - 1995BMW325is
1992 - 1999BMW318is
1993 - 1993BMW325i
1993 - 1995BMW320i
1993 - 1998BMW318i
1994 - 1995BMW325i
1996 - 1998BMW328i
1996 - 1999BMW328is
1997 - 2000BMWZ3
1998 - 1998BMW323i
1998 - 1999BMW318ti
1998 - 1999BMW323is
1999 - 1999BMW323i
1999 - 1999BMW328i
1999 - 2002BMWZ3
2000 - 2000BMW323Ci
2000 - 2000BMW323i
2001 - 2005BMW320i
