Raybestos

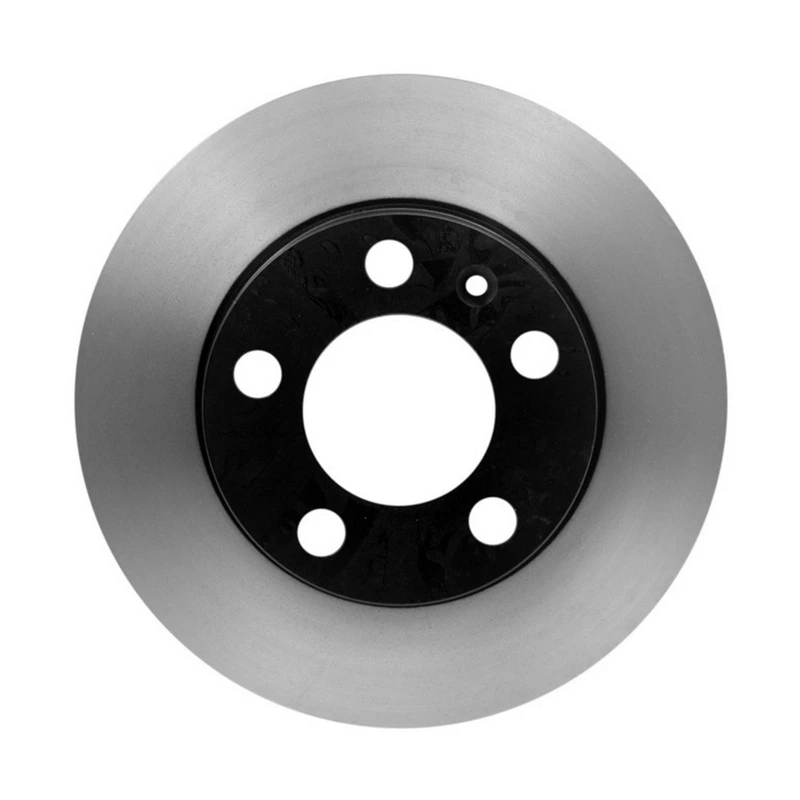

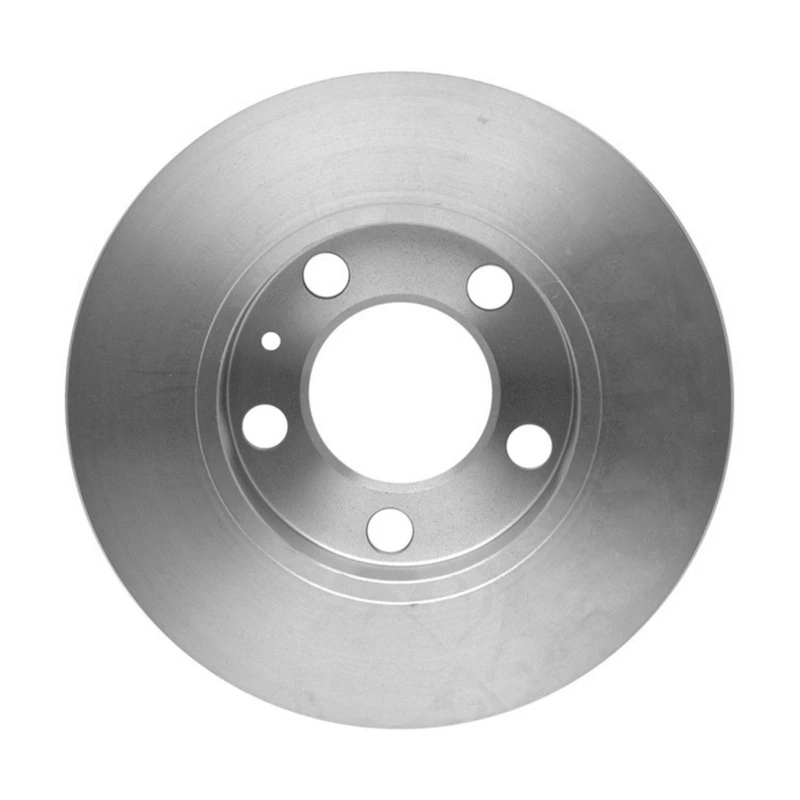

Raybestos 96779 Brake Rotor Rear Side

Part # 96779
Item # 1000V827
$40.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.276
Discard Thickness (mm)
7
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.345
Nominal Thickness (mm)
8.75
Outside Diameter (in)
9.13
Outside Diameter (mm)
231.9
Overall Height (in)
1.56
Overall Height (mm)
39.6
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34144 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
1J0615601C, 1J0 615 601 C - SKODA, SEAT, OEM PART NUMBER, AUDI, ALTROM IMPORTS, VOLKSWAGEN, IMC
1J0615601N, 1J0 615 601 N - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
1J0615601P, 1J0 615 601 P - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
1J0615601, 1J0 615 601 - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
L6QD615601, L6QD 615 601 - SKODA, OEM PART NUMBER, AUDI, VOLKSWAGEN
2034144, 20-34144 - UAP, PROMAX, GEOTECH
12533057, 125.33057 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12133057, 121.33057 - AUTOZONE, CENTRIC PARTS, CTEK
BD125642 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12733057CR, 127.33057CR - STOPTECH, CENTRIC PARTS
12733057CL, 127.33057CL - STOPTECH, CENTRIC PARTS
BR3414402, BR34144-02 - DURAGO, DURA CORP
BR34144 - DURAGO, DURA CORP
53011381 - BOSCH, BRAKEBEST
12833057CL, 128.33057CL - STOPTECH, CENTRIC PARTS
12833057CR, 128.33057CR - STOPTECH, CENTRIC PARTS
96779 - RAYBESTOS BRAKES, BRAKEBEST
12733057R, 127.33057R - STOPTECH, CENTRIC PARTS
12733057L, 127.33057L - STOPTECH, CENTRIC PARTS
YH145238 - CARQUEST, ADVANCE AUTO PARTS
DF2805 - TRW, LUCAS ELECTRICAL
355105412 - PAGID RACING, HELLA PAGID
12533057CRY, 125.33057CRY - STOPTECH, CENTRIC PARTS
32033057, 320.33057 - STOPTECH, CENTRIC PARTS
12833057R, 128.33057R - STOPTECH, CENTRIC PARTS
12833057L, 128.33057L - STOPTECH, CENTRIC PARTS
8996045, 89-96045 - DELTA, AMERICAN REMANUFACTURED
12633057CSR, 126.33057CSR - STOPTECH, CENTRIC PARTS
661309 - WINHERE, PERFECT STOP

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (73)vehicles
All
Audi
Seat
Volkswagen
2008 - 2008VolkswagenJetta
2003 - 2007VolkswagenPolo
2009 - 2009VolkswagenJetta
2002 - 2002VolkswagenGolf
2017 - 2018VolkswagenPolo
2000 - 2000VolkswagenGolf
2019 - 2020SeatTarraco
2009 - 2009VolkswagenJetta
2009 - 2009VolkswagenJetta
2000 - 2000VolkswagenGolf
2008 - 2008VolkswagenJetta City
2009 - 2009VolkswagenJetta
2009 - 2009VolkswagenJetta City
2009 - 2009VolkswagenJetta
2009 - 2009VolkswagenJetta
1999 - 1999VolkswagenGolf
2018 - 2018AudiA1
2007 - 2007VolkswagenJetta City
2000 - 2000VolkswagenGolf
2007 - 2008VolkswagenJetta
