Raybestos

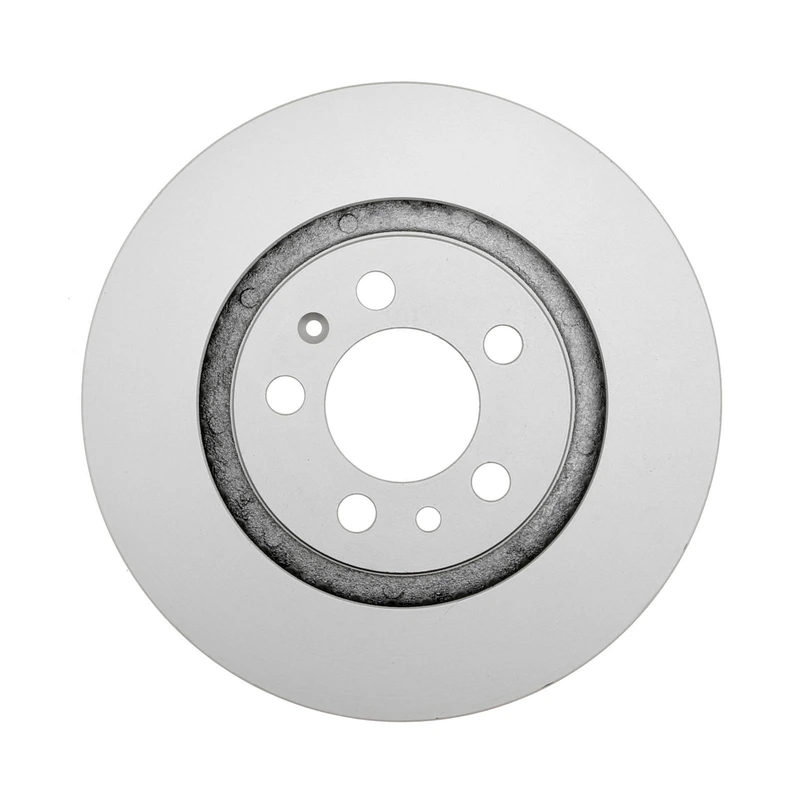

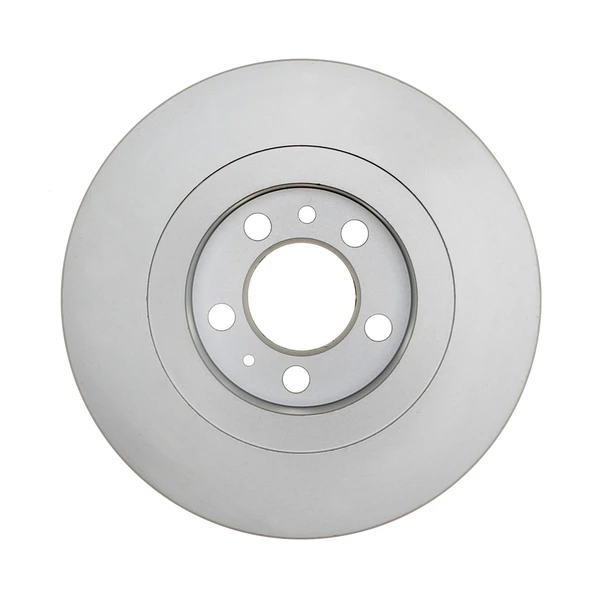

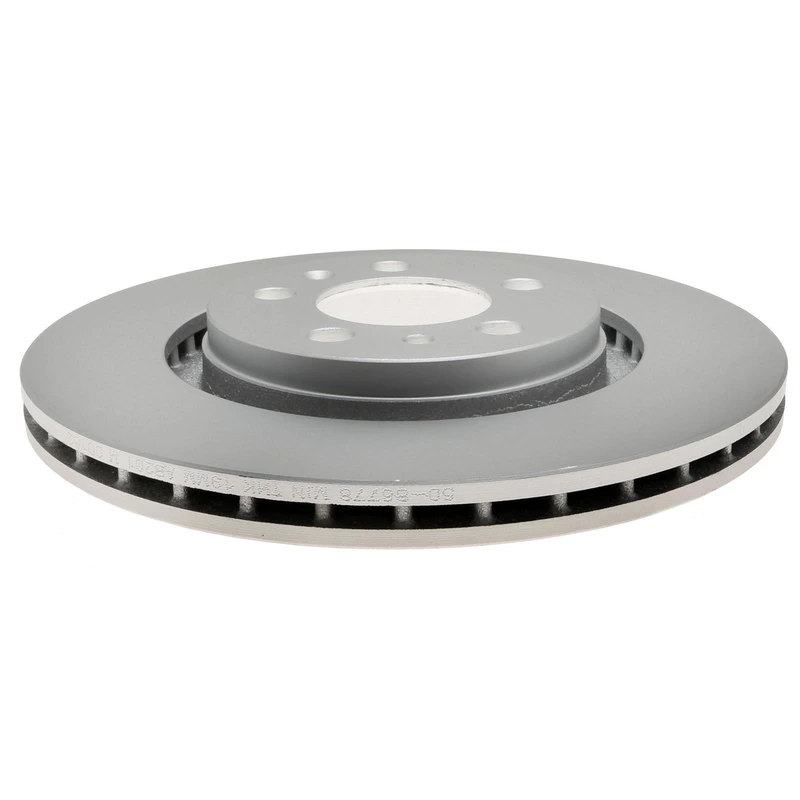

Raybestos 96778FZN Brake Rotor Front Side

Part # 96778FZN
Item # 1000V5P2
$61.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.748
Discard Thickness (mm)
19
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.865
Nominal Thickness (mm)
21.95
Outside Diameter (in)
11.02
Outside Diameter (mm)
279.9
Overall Height (in)
1.435
Overall Height (mm)
36.45
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96778FZN
083-2750
09.7012.10
09.7012.80
117202
120.33054
121.33054
125.33054
125.33054CRY
125647
125740
126.33054CSL
126.33054CSR
126.33054SL
126.33054SR
127.33054L
127.33054R
128.33054CL
128.33054CR
128.33054L
128.33054R
14-34143
145239
180615301
1J0615301M
1J0615301P
20-34143
211213-C
227.33054L
227.33054R

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (31)vehicles
All
Audi
Seat
Volkswagen
1998 - 2002AudiA3
2003 - 2003AudiA3
2004 - 2004AudiA3
2004 - 2004AudiA3 Quattro
2001 - 2002SeatCordoba
2001 - 2005SeatLeon
2001 - 2005SeatToledo
2002 - 2002SeatIbiza
2003 - 2007SeatIbiza
2003 - 2009SeatCordoba
1998 - 2005VolkswagenBeetle
1999 - 1999VolkswagenGolf
1999 - 1999VolkswagenJetta
1999 - 2005VolkswagenBeetle
2000 - 2000VolkswagenGolf
2000 - 2000VolkswagenGolf
2000 - 2004VolkswagenJetta
2001 - 2001VolkswagenGolf
2001 - 2001VolkswagenGolf
2002 - 2002VolkswagenGolf
