Raybestos

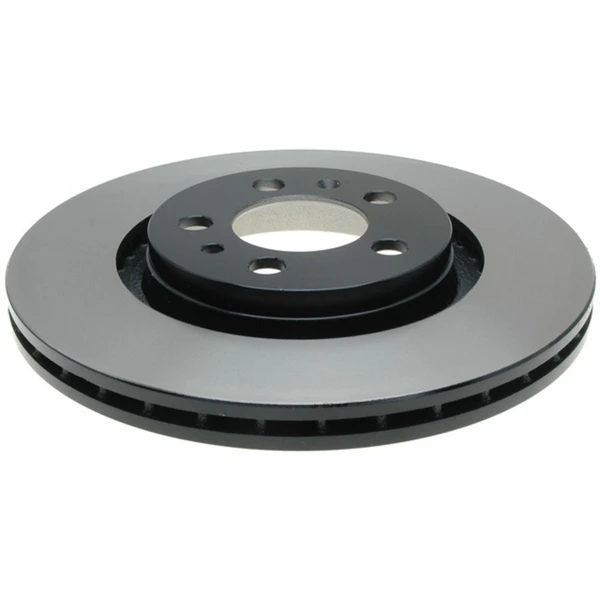

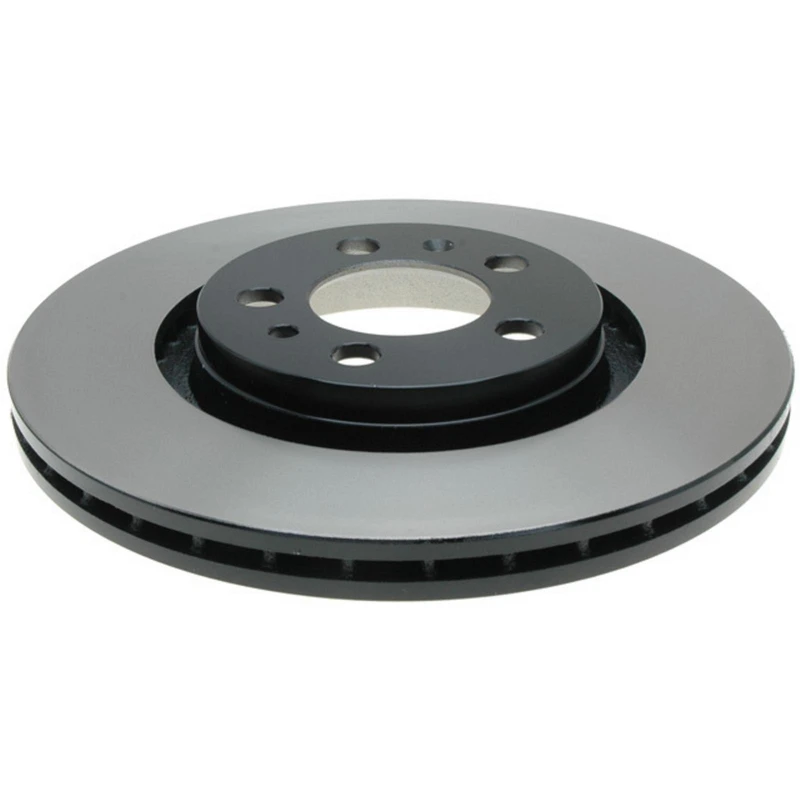

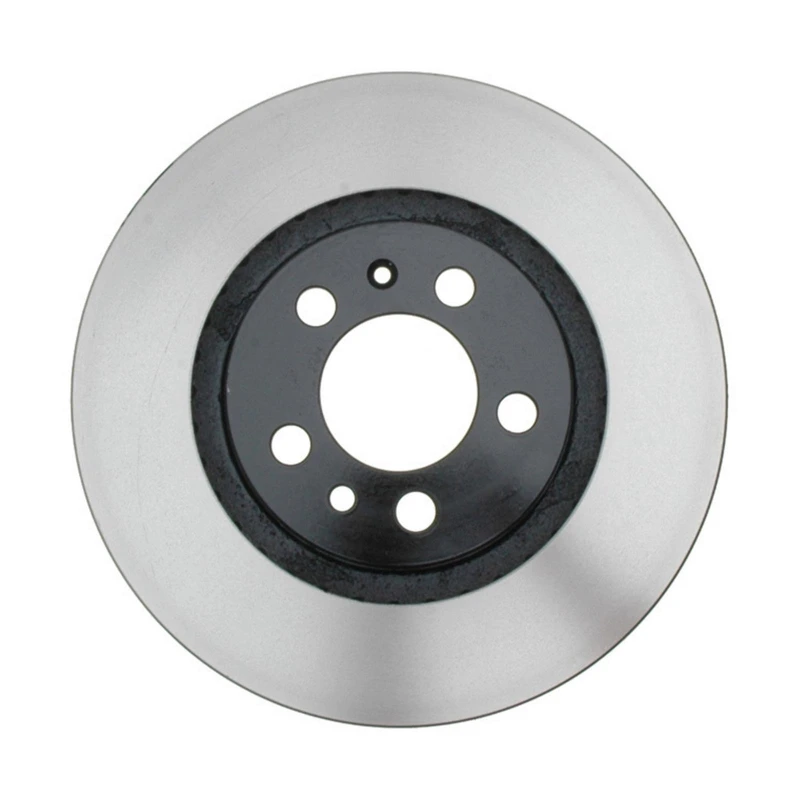

Raybestos 96778 Brake Rotor Front Side

Part # 96778
Item # 1000V716
$67.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.56
Center Hole Diameter (mm)
65
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.748
Discard Thickness (mm)
19
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
3.93
Mounting Bolt Hole Circle Diameter (mm)
99.8
Mounting Bolt Hole Diameter (in)
0.625
Mounting Bolt Hole Diameter (mm)
15.9
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.865
Nominal Thickness (mm)
21.95
Outside Diameter (in)
11.02
Outside Diameter (mm)
279.9
Overall Height (in)
1.435
Overall Height (mm)
36.45
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34143, 3-4143 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
1J0615301M, 1J0 615 301 M - SKODA, SEAT, OEM PART NUMBER, AUDI, ALTROM IMPORTS, VOLKSWAGEN, IMC
1J0615301P, 1J0 615 301 P - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
BD125740 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12533054, 125.33054 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12733054L, 127.33054L - STOPTECH, CENTRIC PARTS
12733054R, 127.33054R - STOPTECH, CENTRIC PARTS
52125740, 52-125740 - GUARDIAN, WAGNER BRAKE
53011384 - BOSCH, BRAKEBEST
53011382 - BOSCH, BRAKEBEST
AX34143 - AUTO EXTRA, AUTOXTRA
R16220, R16 220 - QUALITEE INTERNATIONAL, TRUSTAR
96778 - RAYBESTOS BRAKES, BRAKEBEST
YH145239 - CARQUEST, ADVANCE AUTO PARTS
662573, 66-2573 - WINHERE, PERFECT STOP
12133054, 121.33054 - CENTRIC PARTS, CTEK
BR34143 - DURAGO, DURA CORP
2034143, 20-34143 - PROMAX, GEOTECH
12633054SR, 126.33054SR - STOPTECH, CENTRIC PARTS
12633054SL, 126.33054SL - STOPTECH, CENTRIC PARTS
YH145239C - CARQUEST, ADVANCE AUTO PARTS
96778R - RAYBESTOS BRAKES, BRAKEBEST
12533054CRY, 125.33054CRY - STOPTECH, CENTRIC PARTS
12033054, 120.33054 - CANADIAN TIRE, CENTRIC PARTS
22733054R, 227.33054R - STOPTECH, CENTRIC PARTS
BR3414302, BR34143-02 - DURAGO, DURA CORP
125740 - PARTS MASTER, AUTOXTRA
8996042, 89-96042 - DELTA, AMERICAN REMANUFACTURED
22733054L, 227.33054L - STOPTECH, CENTRIC PARTS
96778FZN - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (31)vehicles
All
Audi
Seat
Volkswagen
2001 - 2005SeatToledo
2002 - 2006VolkswagenGolf
2002 - 2002VolkswagenGolf
1999 - 2005VolkswagenBeetle
1998 - 2002AudiA3
2011 - 2012VolkswagenClasico
1998 - 2005VolkswagenBeetle
2003 - 2009SeatCordoba
2000 - 2004VolkswagenJetta
2004 - 2004AudiA3 Quattro
2003 - 2003AudiA3
2005 - 2006VolkswagenGolf
1999 - 1999VolkswagenGolf
2004 - 2004AudiA3
2010 - 2010VolkswagenGolf City
2001 - 2001VolkswagenGolf
2007 - 2009VolkswagenJetta City
2005 - 2006VolkswagenJetta
2003 - 2004VolkswagenGolf
1999 - 1999VolkswagenJetta
