Raybestos

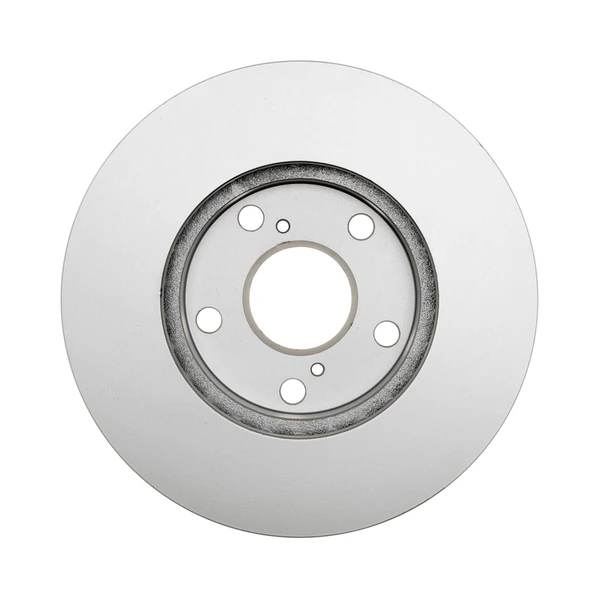

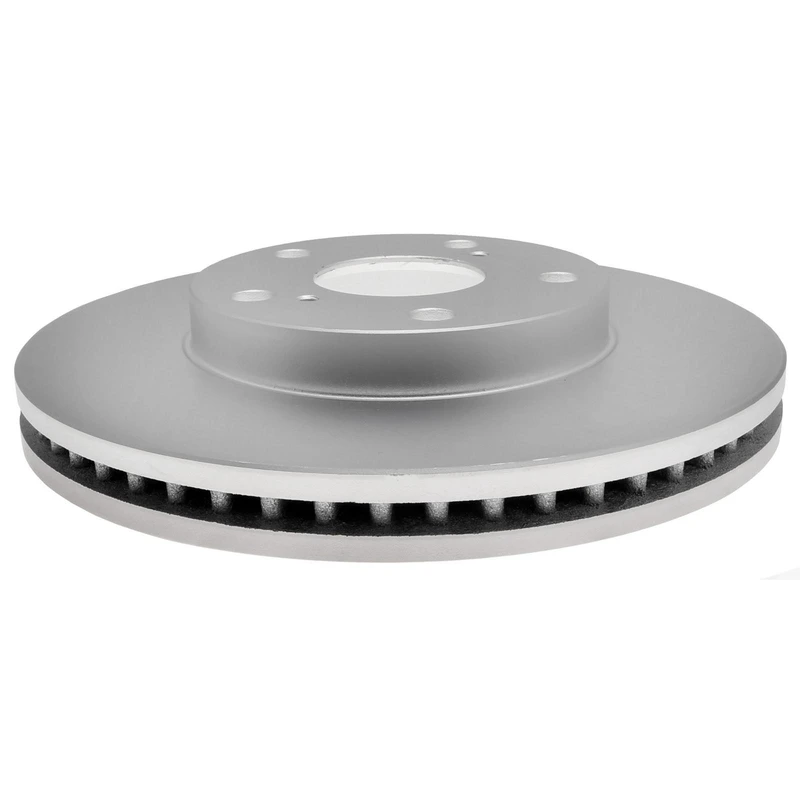

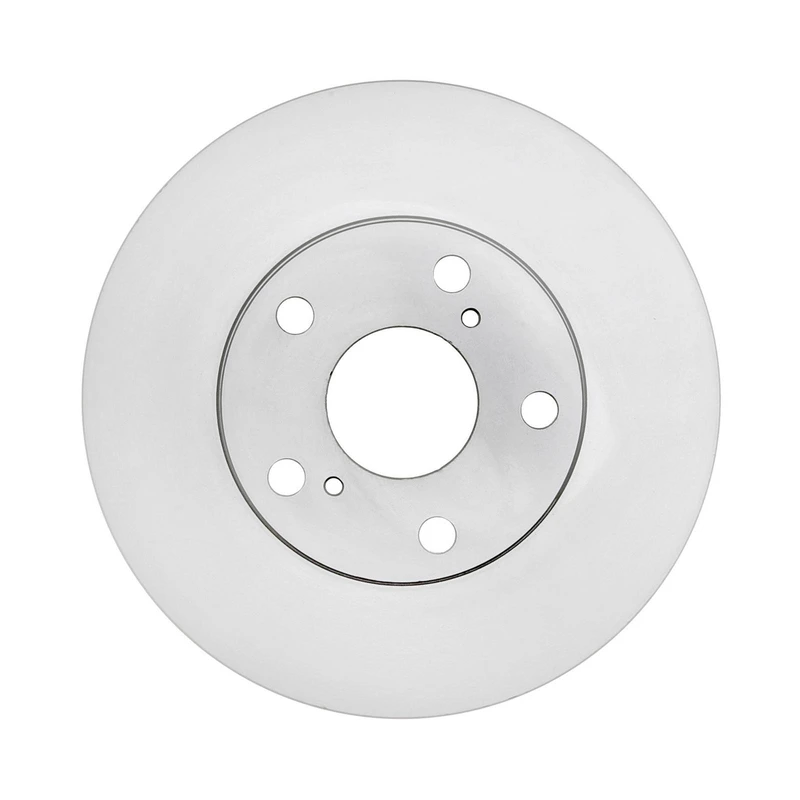

Raybestos 96754FZN Brake Rotor Front Side

Part # 96754FZN
Item # 1000V9LQ
$79.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.45
Center Hole Diameter (mm)
62.25
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
1.024
Discard Thickness (mm)
26
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.566
Mounting Bolt Hole Diameter (mm)
14.4
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.1
Nominal Thickness (mm)
27.95
Outside Diameter (in)
10.825
Outside Diameter (mm)
274.95
Overall Height (in)
1.94
Overall Height (mm)
49.3
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31260, 31-260 - CARQUEST, DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
31050 - CARQUEST, ROCKHILL, QUALITY BRAND, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
4351233042, 43512-33042 - LEXUS, OEM PART NUMBER, TOYOTA
4351233041, 43512-33041 - LEXUS, OEM PART NUMBER, TOYOTA
4351233070, 43512-33070 - LEXUS, OEM PART NUMBER, TOYOTA
4351206031, 43512 06031, 43512-06031 - OEM PART NUMBER, TOYOTA, IMC
BD125612 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
78922077, 789-22077 - DELTA, AMERICAN REMANUFACTURED
4351233080, 43512-33080 - OEM PART NUMBER, TOYOTA
CW28115 - ATE, CONTINENTAL
479360 - TRUCKSTAR BY BUYERS, TRUSTAR
52125612, 52-125612 - GUARDIAN, WAGNER BRAKE
96754FZN - RAYBESTOS BRAKES, BRAKEBEST
662614, 66-2614 - WINHERE, PERFECT STOP
8922077, 89-22077 - DELTA, AMERICAN REMANUFACTURED
BR3126002, BR31260-02 - DURAGO, DURA CORP
50011219 - BOSCH, BRAKEBEST
TO691, TO-691 - EUROROTOR, ULTRA BRAKE
4351206030, 43512-06030 - OEM PART NUMBER, TOYOTA
4351208020, 43512-08020 - OEM PART NUMBER, TOYOTA
96754R - RAYBESTOS BRAKES, BRAKEBEST
BR31260 - DURAGO, DURA CORP
4351208021, 43512-08021 - OEM PART NUMBER, TOYOTA
BR3105002, BR31050-02 - DURAGO, DURA CORP
96754 - RAYBESTOS BRAKES, BRAKEBEST
145234 - BENDIX, ADVANCE AUTO PARTS
BR31050 - DURAGO, DURA CORP
31260DG - AUTOZONE
JBR712EVC - POWERSTOP
Q517 - QUALITY BRAND

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Lexus
Toyota
1998 - 2001LexusES300
1998 - 2001ToyotaCamry
1998 - 2003ToyotaSienna
1998 - 2004ToyotaAvalon
1999 - 2003ToyotaSolara
2000 - 2001ToyotaCamry
2000 - 2001ToyotaCamry
