Raybestos

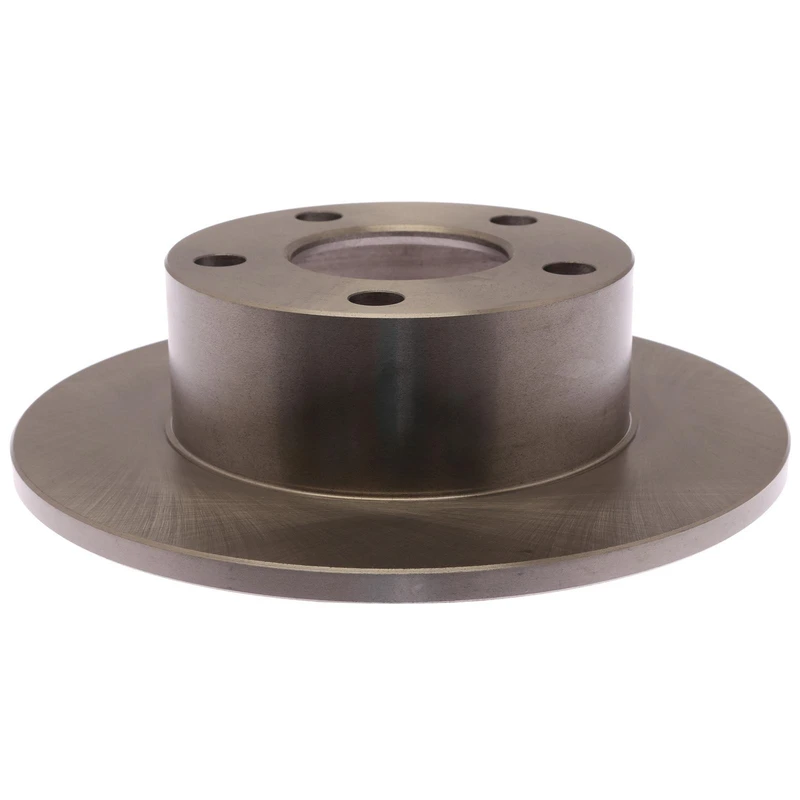

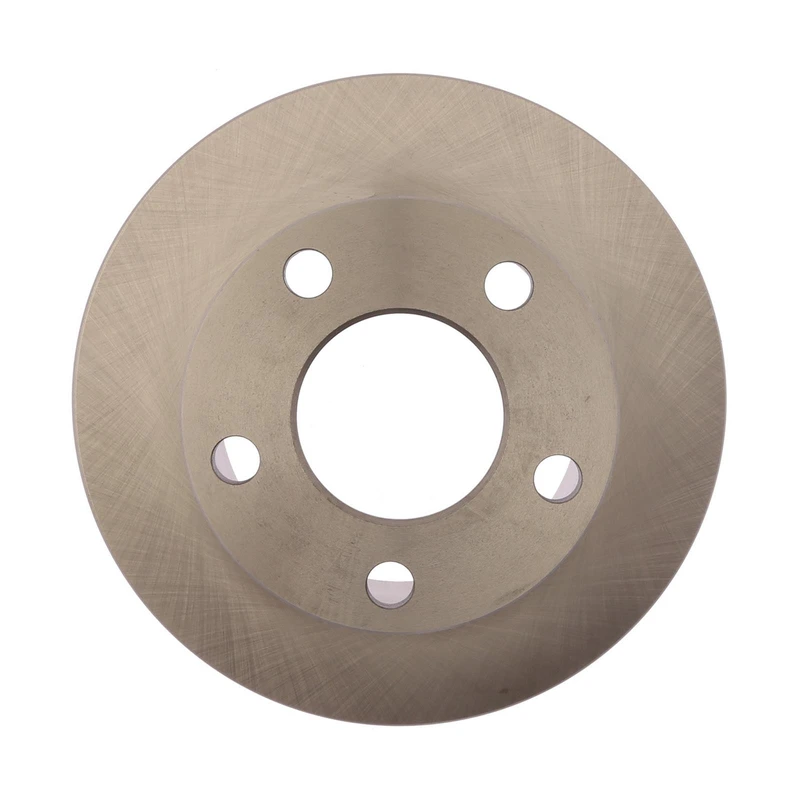

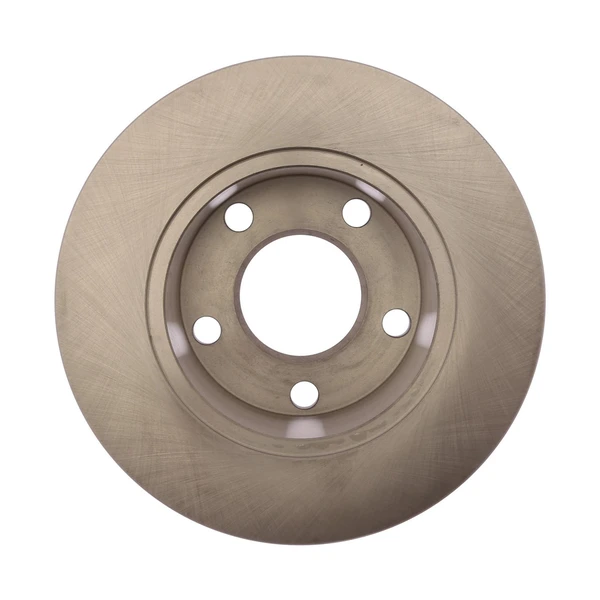

Raybestos 96423R Brake Rotor Rear Side

Part # 96423R
Item # 1000RQ6T
$41.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.68
Center Hole Diameter (mm)
68.05
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.315
Discard Thickness (mm)
8
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.593
Mounting Bolt Hole Diameter (mm)
15.05
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.395
Nominal Thickness (mm)
10.05
Outside Diameter (in)
9.63
Outside Diameter (mm)
244.6
Overall Height (in)
2.525
Overall Height (mm)
64.15
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96423R
08.5743.10
08.5743.11
080-2477
080-2777
083-2477
083-2777
083-2788
117326
120.33038
121.33038
125.33038
125.33038CRY
125275
126.33038CSL
126.33038CSR
126.33038SL
126.33038SR
127.33038CL
127.33038CR
127.33038L
127.33038R
128.33038CL
128.33038CR
128.33038L
128.33038R
14-34023
14010013
145002
211036-C

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Audi
Seat
Volkswagen
1992 - 1994Audi100
1992 - 1994Audi100 Quattro
1995 - 1997AudiA6 Quattro
1995 - 2004AudiA6
1997 - 1997AudiS6
2002 - 2008SeatAlhambra
1997 - 2001VolkswagenPassat
2000 - 2003VolkswagenPointer
2002 - 2004VolkswagenPassat
2002 - 2004VolkswagenPassat
2004 - 2004VolkswagenPassat
2005 - 2005VolkswagenPassat
