Click to enlarge
Raybestos

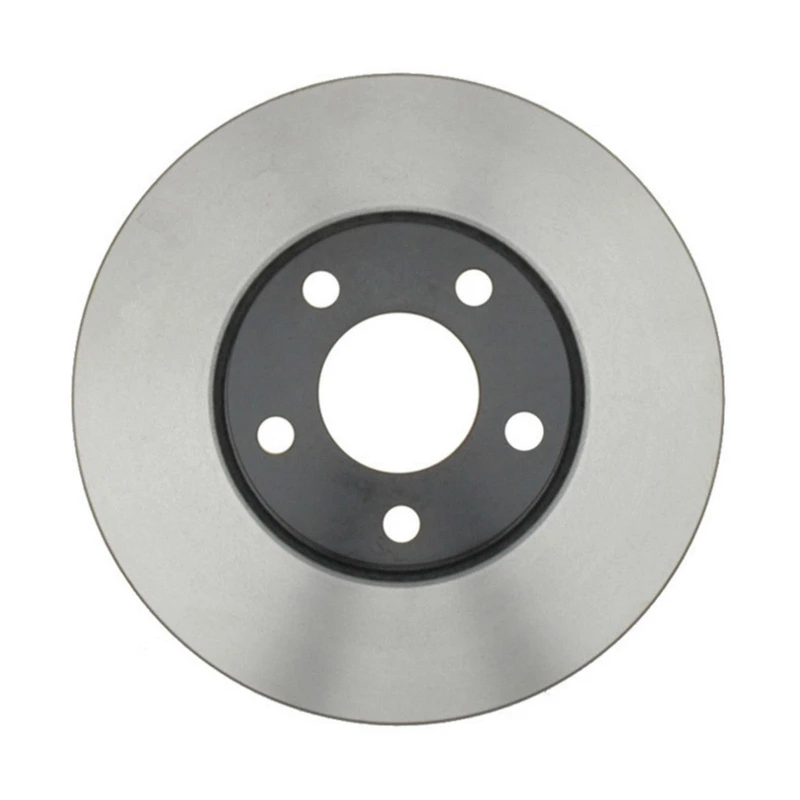

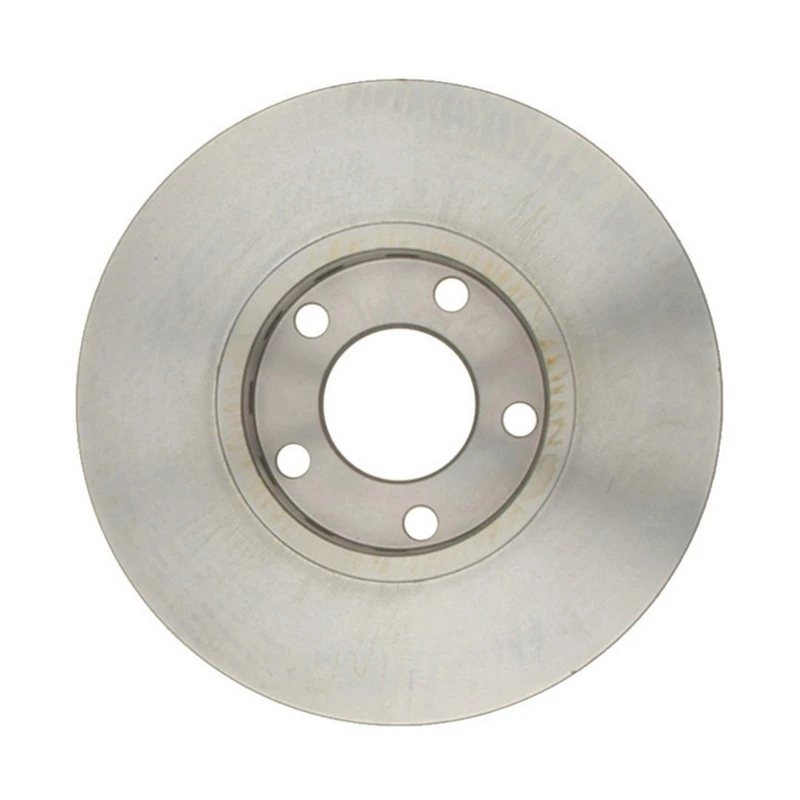

Raybestos 96421 Brake Rotor Front Side

Part # 96421
Item # 1000V00P
$81.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.677
Center Hole Diameter (mm)
68
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.906
Discard Thickness (mm)
23
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.602
Mounting Bolt Hole Diameter (mm)
15.3
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.977
Nominal Thickness (mm)
24.8
Outside Diameter (in)
11.325
Outside Diameter (mm)
287.65
Overall Height (in)
1.82
Overall Height (mm)
46.25
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34055 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
34273, 3-4-273 - DURALAST, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, PARTS MASTER, QUALIS
4A0615301D, 4A0 615 301 D - SKODA, SEAT, OEM PART NUMBER, AUDI, ALTROM IMPORTS, VOLKSWAGEN, IMC
4A0615301C, 4A0 615 301 C - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
4A0615301E, 4A0 615 301 E - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
8E0615301Q, 8E0 615 301 Q - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN
BD125433 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
140778997, 1407-78997 - AI CONVERTER, AUTOPAR, API
9894 - CENTURY, RAYBESTOS BRAKES, BRAKEBEST
12533039, 125.33039 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
12633039CSL, 126.33039CSL - STOPTECH, CENTRIC PARTS
32033039, 320.33039 - STOPTECH, CENTRIC PARTS
96421R - RAYBESTOS BRAKES, BRAKEBEST
14010012 - BOSCH, BRAKEBEST
96421, 9-6421 - RAYBESTOS BRAKES, BRAKEBEST
12833039R, 128.33039R - STOPTECH, CENTRIC PARTS
96421RGS - RAYBESTOS BRAKES, BRAKEBEST
12833039L, 128.33039L - STOPTECH, CENTRIC PARTS
BR34273 - DURAGO, DURA CORP
12133039, 121.33039 - CENTRIC PARTS, CTEK
125433 - PARTS MASTER, AUTOXTRA
EBR430 - POWERSTOP, AUTOSPECIALTY
DF4336S - TRW STEERING AND SUSPENSION PARTS, TRW
22733039R, 227.33039R - STOPTECH, CENTRIC PARTS
52125433, 52-125433 - GUARDIAN, WAGNER BRAKE
22733039L, 227.33039L - STOPTECH, CENTRIC PARTS
355122412 - PAGID RACING, HELLA PAGID
12633039SL, 126.33039SL - STOPTECH, CENTRIC PARTS
12633039CSR, 126.33039CSR - STOPTECH, CENTRIC PARTS
12833039CR, 128.33039CR - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (11)vehicles
All
Audi
Volkswagen
1999 - 1999VolkswagenPassat
1999 - 1999AudiA4 Quattro
1996 - 1998AudiA4 Quattro
1996 - 1998AudiA4
2004 - 2004VolkswagenPassat
1992 - 1994Audi100
1992 - 1994Audi100 Quattro
2000 - 2003VolkswagenPassat
1995 - 2001AudiA6 Quattro
1999 - 1999AudiA4
1995 - 2001AudiA6
