Raybestos

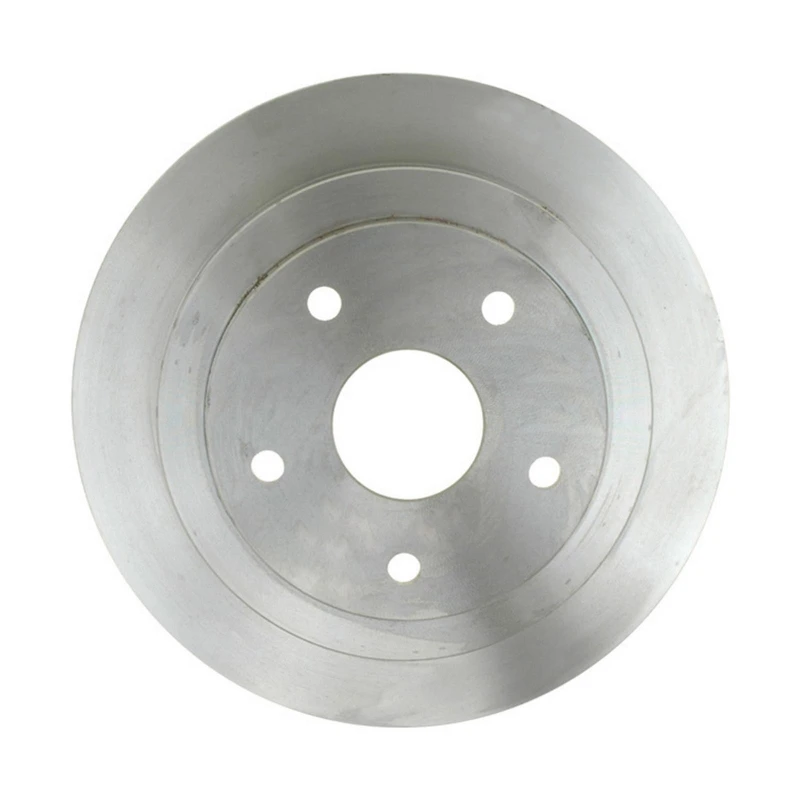

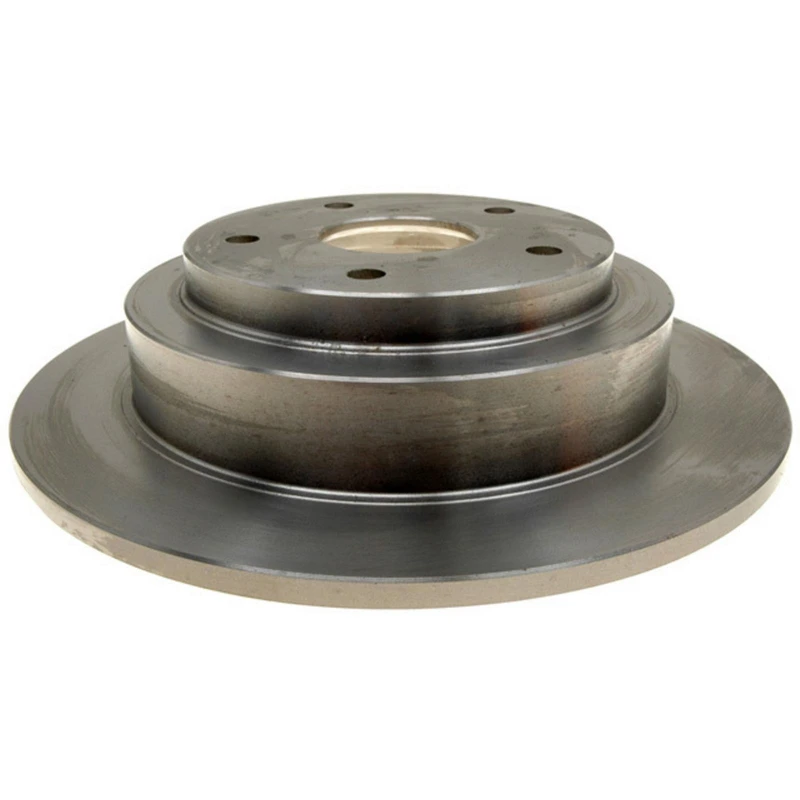

Raybestos 96349R Brake Rotor Rear Side

Part # 96349R
Item # 1000RT8N
$63.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.285
Center Hole Diameter (mm)
58.05
Conventional Or Drum-In-Hat Type Rotor
Drum-In-Hat
Discard Thickness (in)
0.335
Discard Thickness (mm)
8.5
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
4.5
Mounting Bolt Hole Diameter (mm)
114.3
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.395
Nominal Thickness (mm)
10.05
Outside Diameter (in)
11.41
Outside Diameter (mm)
289.8
Overall Height (in)
2.655
Overall Height (mm)
67.45
Salability Restrictions
No
Solid Or Vented Type Rotor
Solid
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31112 - CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
12147015, 121.47015 - CANADIAN TIRE, CENTRIC PARTS, CTEK
26310PA060 - OEM PART NUMBER, SUBARU, DAYTON WALTHER
8918015, 89-18015 - DELTA, AMERICAN REMANUFACTURED
12747015CL, 127.47015CL - STOPTECH, CENTRIC PARTS
96349, 9-6349 - RAYBESTOS BRAKES, BRAKEBEST
26310PA070 - OEM PART NUMBER, SUBARU
BR31112 - DURAGO, DURA CORP
12747015CR, 127.47015CR - STOPTECH, CENTRIC PARTS
61801, 618.01 - JAPAN PARTS, GREN
12747015R, 127.47015R - STOPTECH, CENTRIC PARTS
12747015L, 127.47015L - STOPTECH, CENTRIC PARTS
78918015, 789-18015 - DELTA, AMERICAN REMANUFACTURED
96349R - RAYBESTOS BRAKES, BRAKEBEST
BD125204 - WAGNER BRAKE, BRAKEBEST
26310PA061 - OEM PART NUMBER, SUBARU
12647015SL, 126.47015SL - STOPTECH, CENTRIC PARTS
12647015CSR, 126.47015CSR - STOPTECH, CENTRIC PARTS
141696, 14-1696 - BENDIX, ADVANCE AUTO PARTS
12647015CSL, 126.47015CSL - STOPTECH, CENTRIC PARTS
12647015SR, 126.47015SR - STOPTECH, CENTRIC PARTS
RB453 - DELPHI
6477170, 64-77-170, 64 77 170 - QUALITEE INTERNATIONAL
GR6095 - GIRLING
9687 - CENTURY
25889 - BREMBO
96349RGS - BRAKEBEST
12047015, 120.47015 - CENTRIC PARTS
R77170 - TRUSTAR
326018 - CASTING NUMBERS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Subaru
1992 - 1997SubaruSVX
