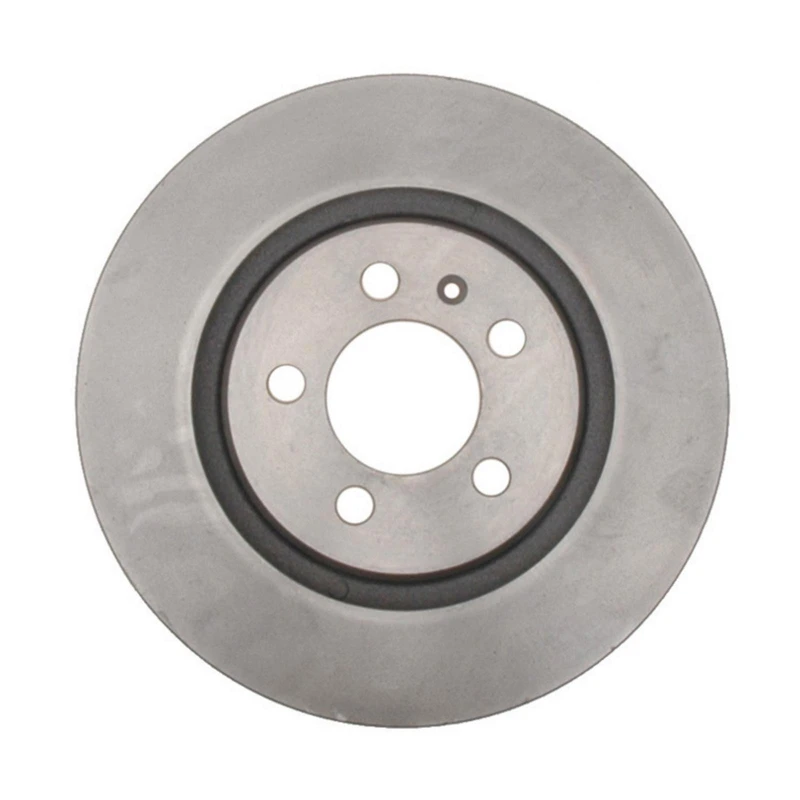

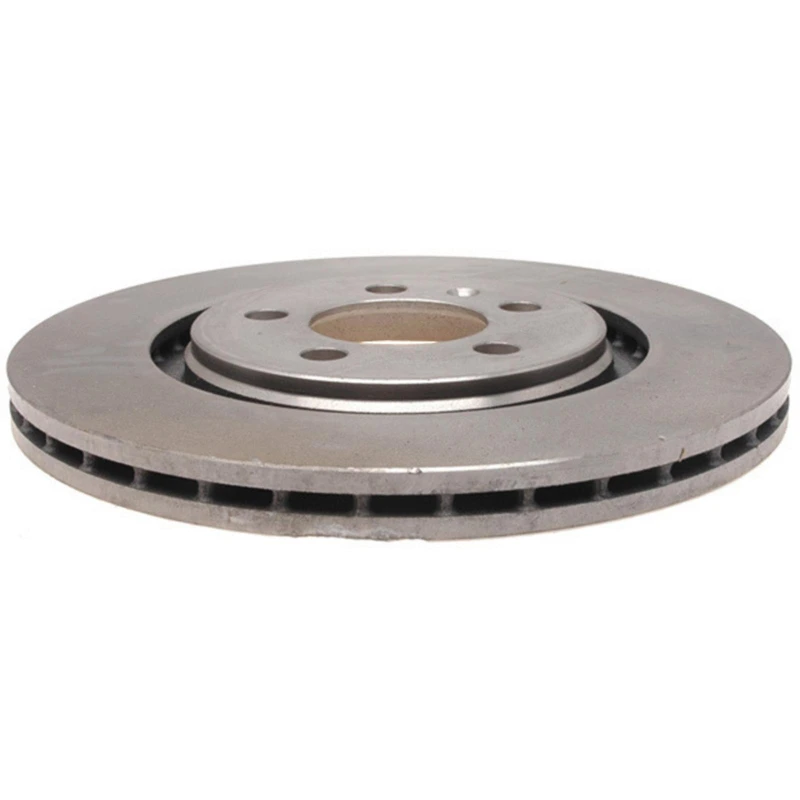

Raybestos 96346R Brake Rotor Front Side
Part # 96346R
Item # 1000RRDK
$68.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Brand
- Raybestos
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- Front Side
- ABS Tone Ring Included
- No
- Center Hole Diameter (in)
- 2.56
- Center Hole Diameter (mm)
- 65
- Conventional Or Drum-In-Hat Type Rotor
- Conventional
- Discard Thickness (in)
- 0.787
- Discard Thickness (mm)
- 20
- Harmonize Code
- 8708.30.5030
- Mounting Bolt Hole Circle Diameter (in)
- 3.937
- Mounting Bolt Hole Circle Diameter (mm)
- 100
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness (in)
- 0.86
- Nominal Thickness (mm)
- 21.85
- Outside Diameter (in)
- 11.02
- Outside Diameter (mm)
- 279.9
- Overall Height (in)
- 1.117
- Overall Height (mm)
- 28.35
- Salability Restrictions
- No
- Solid Or Vented Type Rotor
- Vented
- Stud/Lug Hole Quantity
- 5
- UNSPSC Code
- 25171715
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
34009 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
1H0615301A, 1H0 615 301 A - SKODA, SEAT, OEM PART NUMBER, AUDI, VOLKSWAGEN, IMC
12133034, 121.33034 - CENTRIC PARTS, WAGNER BRAKE, CTEK
BD125442 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
12733034R, 127.33034R - STOPTECH, CENTRIC PARTS
EBR425 - POWERSTOP, AUTOSPECIALTY
96346, 96-346 - RAYBESTOS BRAKES, BRAKEBEST
8996028, 89-96028 - DELTA, AMERICAN REMANUFACTURED
12833034CR, 128.33034CR - STOPTECH, CENTRIC PARTS
12733034L, 127.33034L - STOPTECH, CENTRIC PARTS
25345 - BREMBO, AP
125442, 12-5442 - PARTS MASTER, AUTOXTRA
12833034CL, 128.33034CL - STOPTECH, CENTRIC PARTS
CW22100 - ATE, CONTINENTAL
BR34009 - DURAGO, DURA CORP
96346R - RAYBESTOS BRAKES, BRAKEBEST
12633034CSR, 126.33034CSR - STOPTECH, CENTRIC PARTS
52125442, 52-125442 - GUARDIAN, WAGNER BRAKE
12633034CSL, 126.33034CSL - STOPTECH, CENTRIC PARTS
YH141719 - CARQUEST, ADVANCE AUTO PARTS
141719, 141-719 - BENDIX, ADVANCE AUTO PARTS
12833034R, 128.33034R - STOPTECH, CENTRIC PARTS
53011388 - BOSCH, BRAKEBEST
12833034L, 128.33034L - STOPTECH, CENTRIC PARTS
53011390 - BOSCH, BRAKEBEST
12633034SR, 126.33034SR - STOPTECH, CENTRIC PARTS
12633034SL, 126.33034SL - STOPTECH, CENTRIC PARTS
78996028, 789-96028 - DELTA, AMERICAN REMANUFACTURED
EBR427 - AUTOSPECIALTY
12033034, 120.33034 - CENTRIC PARTS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Volkswagen
| 1992 - 1992 | Volkswagen | Corrado |
| 1993 - 1995 | Volkswagen | Corrado |
| 1993 - 1995 | Volkswagen | Passat |
| 1994 - 1995 | Volkswagen | Jetta |
| 1995 - 1995 | Volkswagen | Golf |
