Raybestos

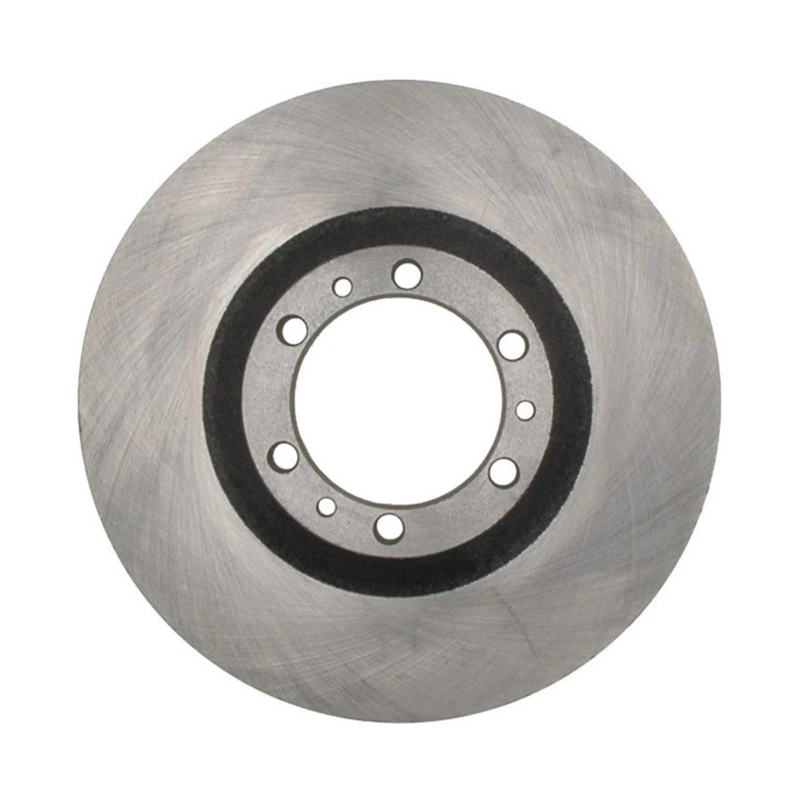

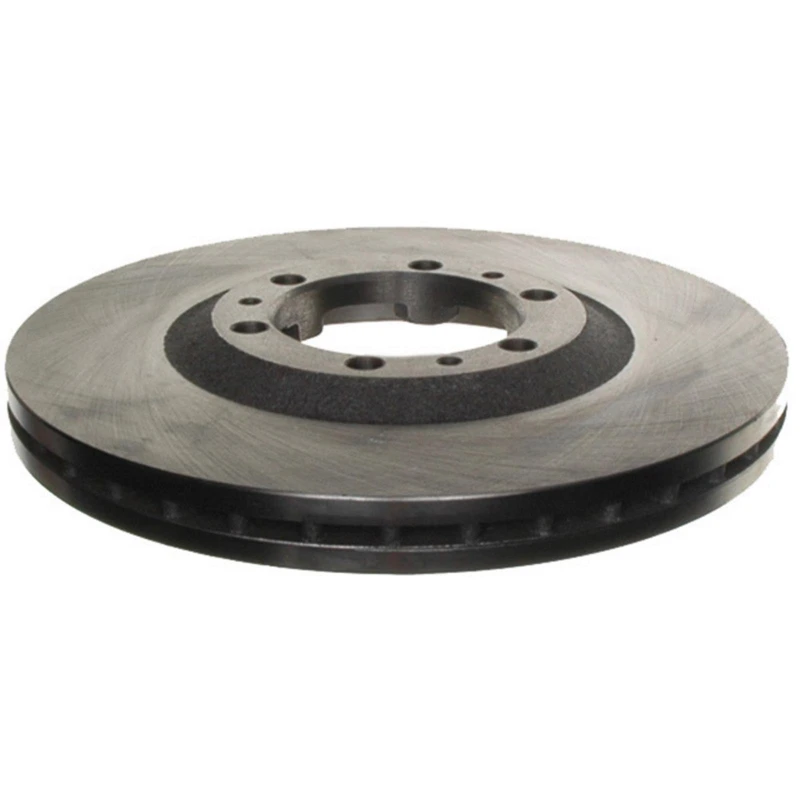

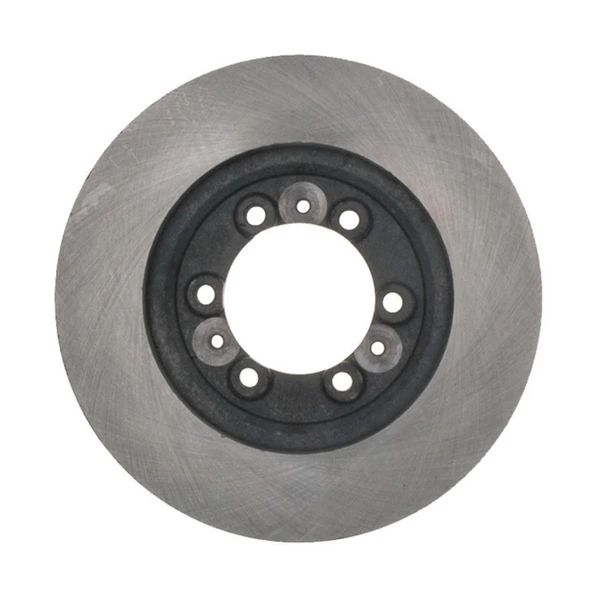

Raybestos 96336R Brake Rotor Front Side

Part # 96336R
Item # 1000RLDG
$72.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.47
Center Hole Diameter (mm)
88.15
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.969
Discard Thickness (mm)
24.6
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.291
Mounting Bolt Hole Circle Diameter (mm)
109
Mounting Bolt Hole Diameter (in)
1.25
Mounting Bolt Hole Diameter (mm)
31.75
Mounting Bolt Hole Quantity
6
Nominal Thickness (in)
1.025
Nominal Thickness (mm)
26.05
Outside Diameter (in)
11.02
Outside Diameter (mm)
279.9
Overall Height (in)
1.42
Overall Height (mm)
36.05
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
6
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
31163, 3-1-163, 3-1163 - DURALAST, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
97034034, 97 034 034, 970.34034 - ACURA, GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, ISUZU, OPEL, HONDA
94375533 - HOLDEN, GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, ISUZU, OPEL
94375416 - HOLDEN, GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, ISUZU, OPEL
8970340343, 8-97034-034-3 - ACURA, OEM PART NUMBER, ISUZU, OPEL, DAYTON WALTHER, HONDA
97034035 - ACURA, GENERAL MOTORS, OEM PART NUMBER, VAUXHALL, ISUZU, HONDA
8943755333, 8-94375-533-3 - ACURA, OEM PART NUMBER, ISUZU, HONDA
8943754163, 8-94375-416-3 - ACURA, OEM PART NUMBER, ISUZU, HONDA
8970460800, 8-97046-080-0 - OEM PART NUMBER, ISUZU, HONDA
8970963950 - OEM PART NUMBER, ISUZU, HONDA
45502 - CANADIAN TIRE, GREN, QUALIS
12043013, 120.43013 - STOPTECH, CENTRIC PARTS, WAGNER BRAKE
8972077010, 8-97207-701-0 - OEM PART NUMBER, ISUZU, HONDA
442230, 442-230 - WINHERE, NISSAN, PERFECT STOP
9840, 984.0 - CENTURY, RAYBESTOS BRAKES, BRAKEBEST
BD125536 - MONROE BRAKES, WAGNER BRAKE, BRAKEBEST
8970340353, 8-97034-035-3 - OEM PART NUMBER, ISUZU
31115 - AIMCO, STANDARD ROTORS AND DRUMS
12643013CSR, 126.43013CSR - STOPTECH, CENTRIC PARTS
DF4029S - TRW STEERING AND SUSPENSION PARTS, TRW
12843013L, 128.43013L - STOPTECH, CENTRIC PARTS
12843013R, 128.43013R - STOPTECH, CENTRIC PARTS
96336RGS - RAYBESTOS BRAKES, BRAKEBEST
78908029, 789-08029 - DELTA, AMERICAN REMANUFACTURED
12643013SL, 126.43013SL - STOPTECH, CENTRIC PARTS
12643013SR, 126.43013SR - STOPTECH, CENTRIC PARTS
12643013CSL, 126.43013CSL - STOPTECH, CENTRIC PARTS
31162, 3-1162 - AIMCO, STANDARD ROTORS AND DRUMS
BR31163 - DURAGO, DURA CORP
12743013CL, 127.43013CL - STOPTECH, CENTRIC PARTS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Acura
Honda
Isuzu
1996 - 1999AcuraSLX
1994 - 1995HondaPassport
1996 - 2001HondaPassport
1992 - 2002IsuzuTrooper
1993 - 1995IsuzuRodeo
1994 - 1994IsuzuAmigo
1996 - 2000IsuzuRodeo
1998 - 2000IsuzuAmigo
1999 - 2001IsuzuVehiCROSS
2001 - 2001IsuzuRodeo
2001 - 2001IsuzuRodeo Sport
2002 - 2002IsuzuAxiom
