Raybestos

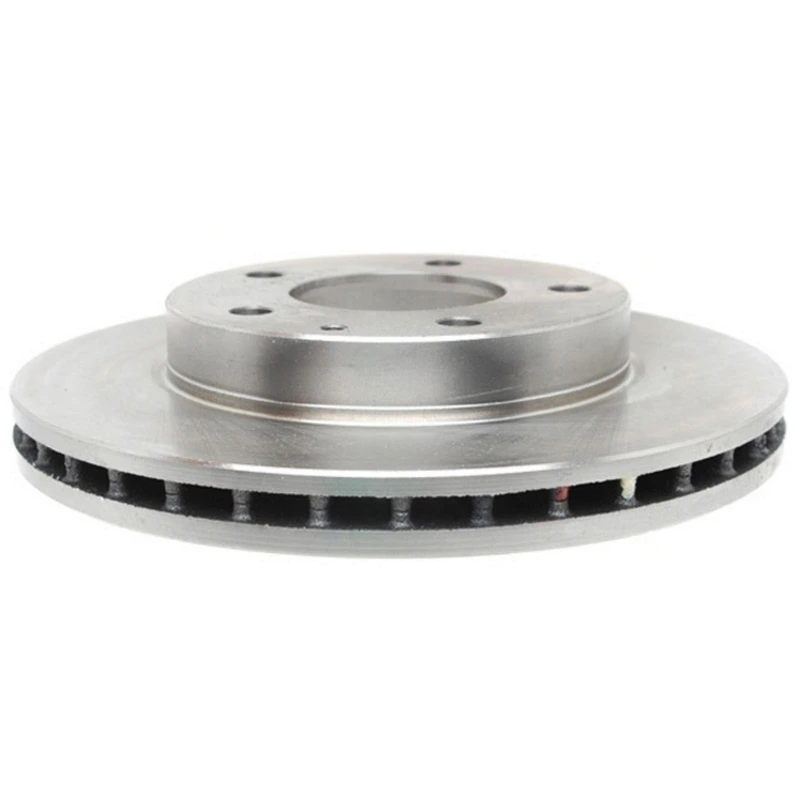

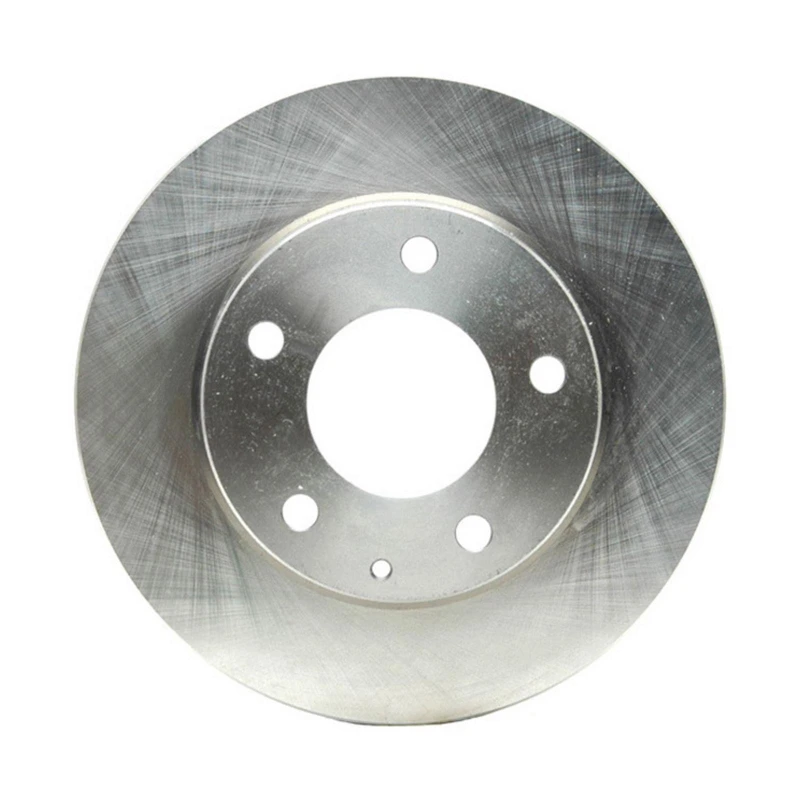

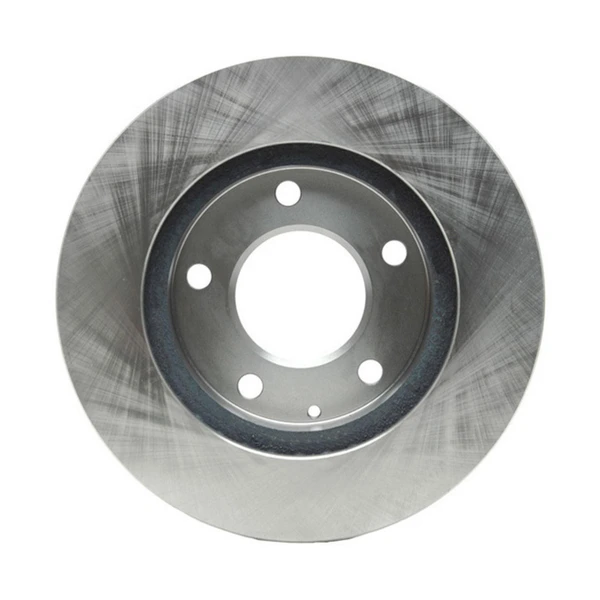

Raybestos 96318R Brake Rotor Front Side

Part # 96318R
Item # 1000RHWE
$47.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
Material
Cast Iron
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.84
Center Hole Diameter (mm)
72.15
Conventional Or Drum-In-Hat Type Rotor
Conventional
Directional or Non-Directional Brake Surface
Non-Directional
Discard Thickness (in)
0.866
Discard Thickness (mm)
22
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.5
Mounting Bolt Hole Circle Diameter (mm)
114.3
Mounting Bolt Hole Diameter (in)
0.509
Mounting Bolt Hole Diameter (mm)
12.95
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.945
Nominal Thickness (mm)
24
Outside Diameter (in)
10.16
Outside Diameter (mm)
258.05
Overall Height (in)
1.91
Overall Height (mm)
48.5
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96318R
080-2522
083-2522
083-2782
09.5584.10
112521
120.45048
120.45048CRY
121.45048
125.45048
125274
126.45048CSL
126.45048CSR
126.45048SL
126.45048SR
127.45048CL
127.45048CR
127.45048L
127.45048R
128.45048CL
128.45048CR
128.45048L
128.45048R
14-31052
141845
210571-C
211518-DP
227.45048L
227.45048R
25349

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Ford
Mazda
1993 - 1997FordProbe
1993 - 1997Mazda626
1993 - 1997MazdaMX-6
1998 - 2002Mazda626
2001 - 2002MazdaProtege
2002 - 2003MazdaProtege5
2003 - 2003MazdaProtege
