Raybestos

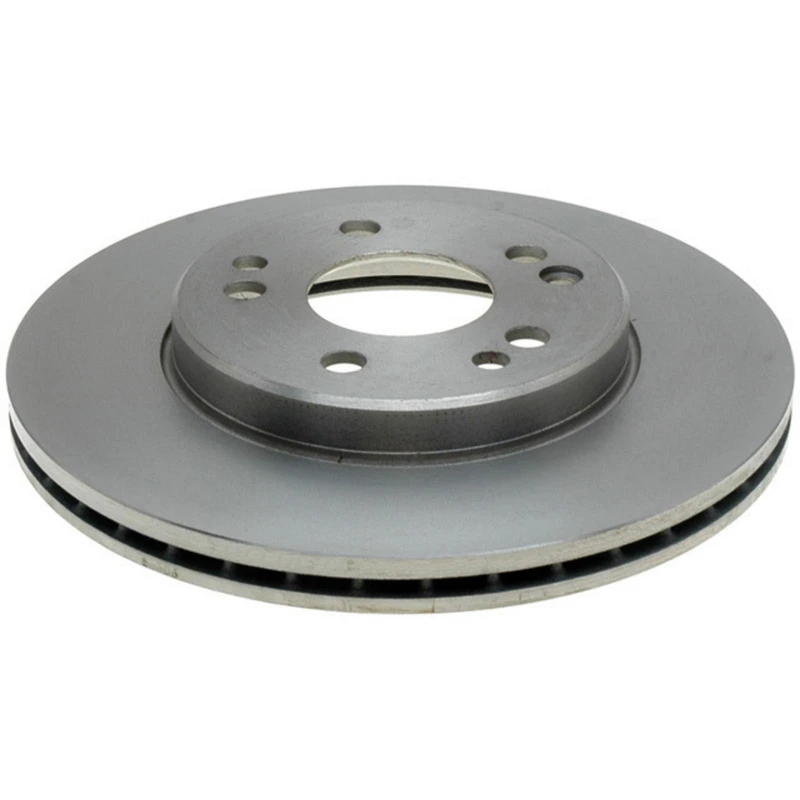

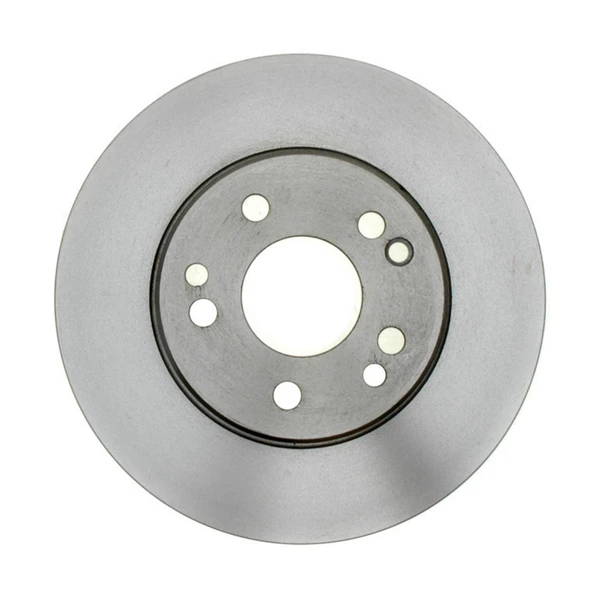

Raybestos 96306 Brake Rotor Front Side

Part # 96306
Item # 1000V41Z
$63.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
2.644
Center Hole Diameter (mm)
67.15
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
0.764
Discard Thickness (mm)
19.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.59
Mounting Bolt Hole Diameter (mm)
15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
0.86
Nominal Thickness (mm)
21.85
Outside Diameter (in)
11.17
Outside Diameter (mm)
283.7
Overall Height (in)
1.71
Overall Height (mm)
43.45
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
3205, 3-205, 320-5 - DURALAST, ROCKHILL, QUALITY BRAND, CANADIAN TIRE, AUTOZONE, NEWTEK AUTOMOTIVE USA, UAP, AIMCO, MIGHTY DISTRIBUTING SYSTEM, QUALIS, STANDARD ROTORS AND DRUMS
12135015, 121.35015 - CANADIAN TIRE, CENTRIC PARTS, CTEK
96306, 9-6306, 96-306 - RAYBESTOS BRAKES, BRAKEBEST
12735015L, 127.35015L - STOPTECH, CENTRIC PARTS
12735015R, 127.35015R - STOPTECH, CENTRIC PARTS
61920 - PARTS MASTER, AUTOXTRA
355122182 - PAGID RACING, HELLA PAGID
12535015CRY, 125.35015CRY - STOPTECH, CENTRIC PARTS
5261920, 52-61920 - GUARDIAN, WAGNER BRAKE
12535015, 125.35015 - STOPTECH, CENTRIC PARTS
12835015L, 128.35015L - STOPTECH, CENTRIC PARTS
12835015R, 128.35015R - STOPTECH, CENTRIC PARTS
8974010, 89-74010 - DELTA, AMERICAN REMANUFACTURED
12835015CR, 128.35015CR - STOPTECH, CENTRIC PARTS
EBR246 - POWERSTOP, AUTOSPECIALTY
12835015CL, 128.35015CL - STOPTECH, CENTRIC PARTS
96306R - RAYBESTOS BRAKES, BRAKEBEST
12635015SL, 126.35015SL - STOPTECH, CENTRIC PARTS
12635015SR, 126.35015SR - STOPTECH, CENTRIC PARTS
442580 - WINHERE, PERFECT STOP
BR3205 - DURAGO, DURA CORP
12635015CSL, 126.35015CSL - STOPTECH, CENTRIC PARTS
141425, 14-1425 - BENDIX, ADVANCE AUTO PARTS
12635015CSR, 126.35015CSR - STOPTECH, CENTRIC PARTS
BD61920 - WAGNER BRAKE, BRAKEBEST
1244211612, 124 421 1612 - OEM PART NUMBER, MERCEDESBENZ
CW22123 - ATE, CONTINENTAL
1294210312, 129 421 03 12, 129 421 0312 - OEM PART NUMBER, MERCEDESBENZ
25250, 2-5250 - BREMBO, AP
96306RGS - RAYBESTOS BRAKES, BRAKEBEST

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Mercedes-Benz
1988 - 1989Mercedes-Benz300TE
1987 - 1989Mercedes-Benz260E
1988 - 1989Mercedes-Benz300CE
1986 - 1987Mercedes-Benz190E
1993 - 1993Mercedes-Benz300TE
1990 - 1991Mercedes-Benz300D
1990 - 1992Mercedes-Benz300TE
1990 - 1992Mercedes-Benz300E
1995 - 1995Mercedes-BenzE300
1988 - 1989Mercedes-Benz560SL
1986 - 1989Mercedes-Benz300E
1987 - 1987Mercedes-Benz300TD
1990 - 1992Mercedes-Benz300E
