Raybestos

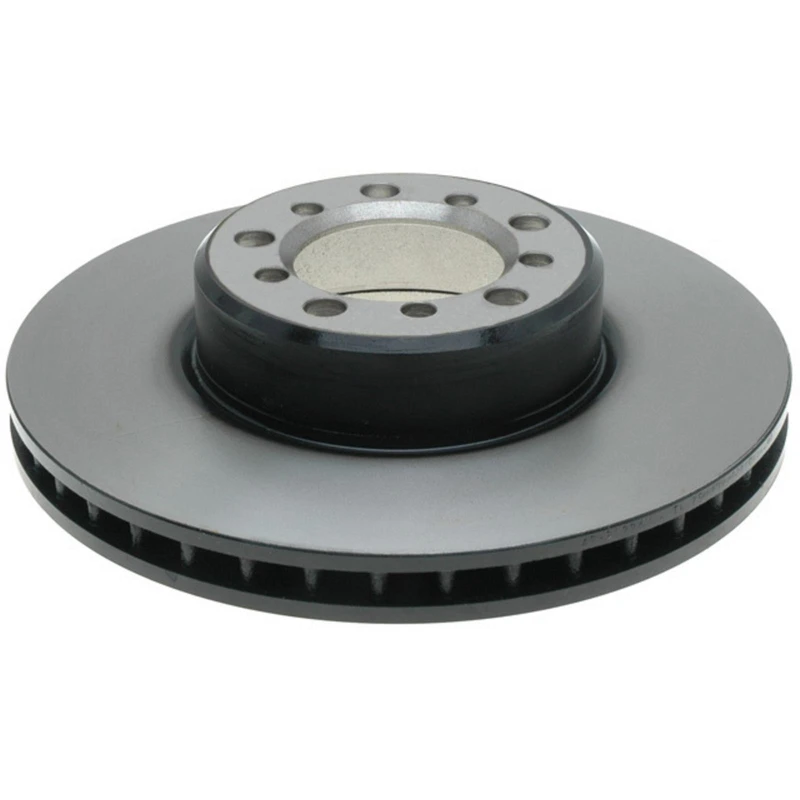

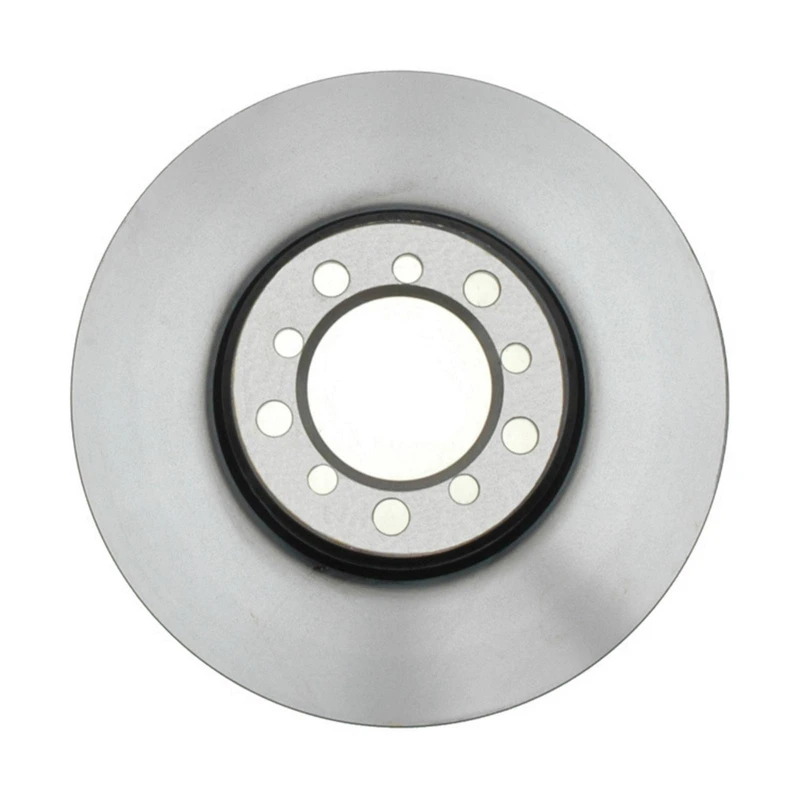

Raybestos 96224R Brake Rotor Front Side

Part # 96224R
Item # 1000RK0A
$63.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Brand
Raybestos
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Front Side
ABS Tone Ring Included
No
Center Hole Diameter (in)
3.15
Center Hole Diameter (mm)
80
Conventional Or Drum-In-Hat Type Rotor
Conventional
Discard Thickness (in)
1
Discard Thickness (mm)
25.4
Harmonize Code
8708.30.5030
Mounting Bolt Hole Circle Diameter (in)
4.409
Mounting Bolt Hole Circle Diameter (mm)
112
Mounting Bolt Hole Diameter (in)
0.59
Mounting Bolt Hole Diameter (mm)
15
Mounting Bolt Hole Quantity
5
Nominal Thickness (in)
1.1
Nominal Thickness (mm)
27.95
Outside Diameter (in)
11.82
Outside Diameter (mm)
300.25
Overall Height (in)
2.69
Overall Height (mm)
68.35
Salability Restrictions
No
Solid Or Vented Type Rotor
Vented
Stud/Lug Hole Quantity
5
UNSPSC Code
25171715
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
96224R
083-2254
09.4928.10
110190
120.35017
121.35017
125.35017
125.35017CRY
126.35017CSL
126.35017CSR
126.35017SL
126.35017SR
1264210412
1264210512
127.35017L
127.35017R
128.35017CL
128.35017CR
128.35017L
128.35017R
14-3419
141648
1586
1602715
210980-C
25258
320.35017H
325804
3405672
3419

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Mercedes-Benz
1985 - 1985Mercedes-Benz300SD
1986 - 1987Mercedes-Benz300SDL
1986 - 1991Mercedes-Benz420SEL
1986 - 1991Mercedes-Benz560SEC
1986 - 1991Mercedes-Benz560SEL
1988 - 1991Mercedes-Benz300SE
1988 - 1991Mercedes-Benz300SEL
1990 - 1991Mercedes-Benz350SDL
1991 - 1991Mercedes-Benz350SD
